Description:

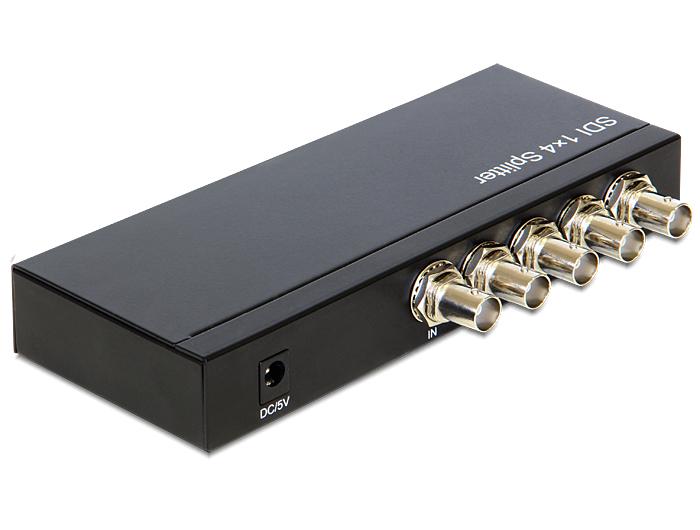

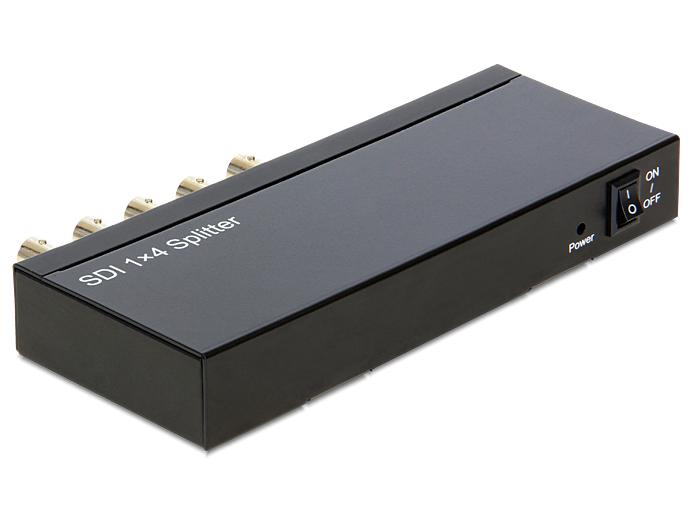

Use this Delock SDI splitter to output signals of an SDI input source, such as a DVR, an HD-SDI camera or other device to up to four different output devices such as SDI monitors.
Specification:
• Connector:
Input: 1 x BNC female (3G-SDI)
Output: 4 x BNC female (3G-SDI)

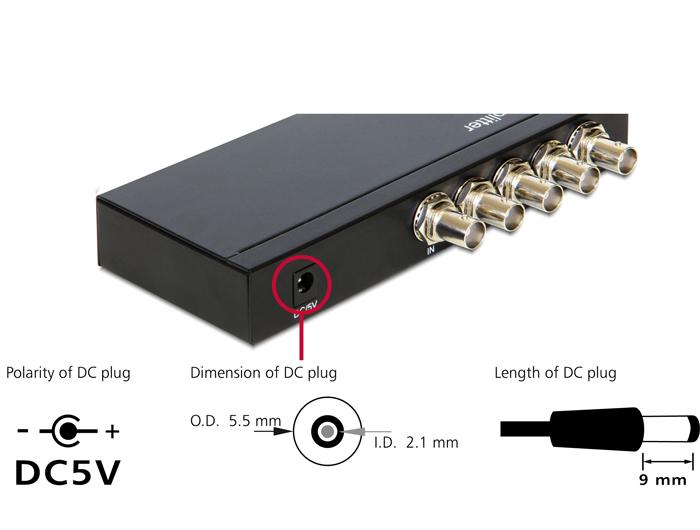

1 x DC Power 5 V
• Supported resolution:
SD 480i, 525i und 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz
• Robust metal housing
• Power consumption: max. 1,2 W
• Dimensions (LxWxH): ca. 162 x 82 x 25 mm
System requirements:
Package content:
• 3G-SDI Splitter

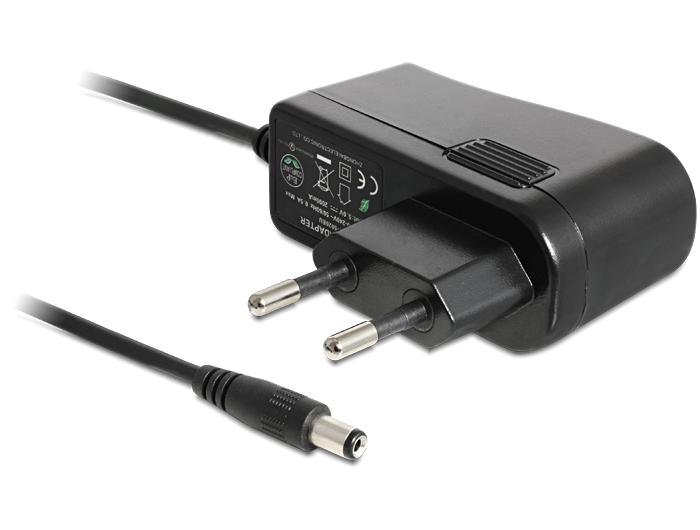

• Power supply
Use this Delock SDI splitter to output signals of an SDI input source, such as a DVR, an HD-SDI camera or other device to up to four different output devices such as SDI monitors.
Specification:
• Connector:
Input: 1 x BNC female (3G-SDI)
Output: 4 x BNC female (3G-SDI)
1 x DC Power 5 V
• Supported resolution:
SD 480i, 525i und 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz
• Robust metal housing
• Power consumption: max. 1,2 W
• Dimensions (LxWxH): ca. 162 x 82 x 25 mm
System requirements:
Package content:
• 3G-SDI Splitter
• Power supply
