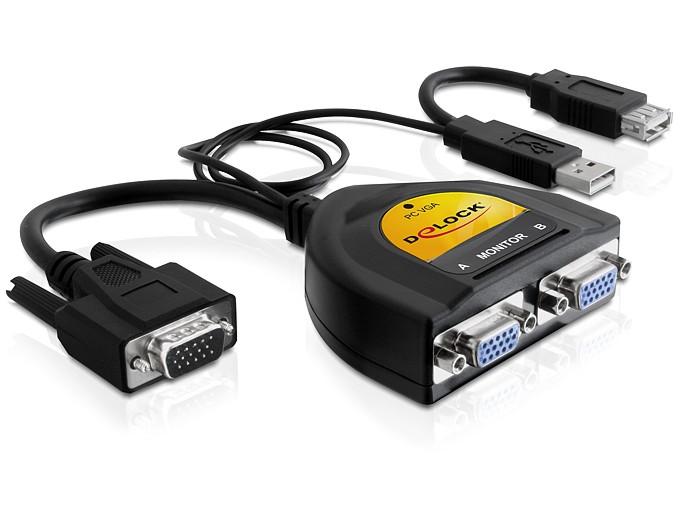

Delock 2 Port VGA Data Splitter 450 MHz

Description:

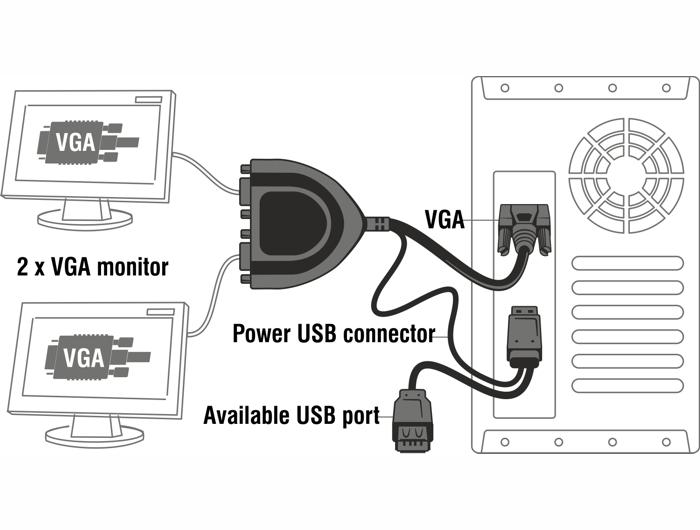

This Delock VGA data splitter can be used to split the video signal from video output of your PC or notebook. Thus you can connect two monitors to one VGA port. Power will be supplied through the USB port without blocking the USB port due to the male â female solution.

Specification:
• Connector:
Video output: 2 x VGA 15 pin female
Video input: 1 x VGA 15 pin male
Power supply:
1 x USB-A male
1 x USB-A female â can be used for other USB devices
• Supports: SVGA, VGA, XGA, WXGA, QXGA and Multi-Sync monitors
• Resolution: max. 2048 x 1536
• Format: 4:3
• VGA bandwidth: 450 MHz
• Supported cable length: up to 55 m
• Daisy Chain (cascadable)
• USB Bus Power, no additional power supply needed
• Plug & Play
• OS independent, no driver installation required

System requirements:
• PC or notebook with one free VGA port
• Monitor with VGA cable
• One free USB port for power supply

Package content:
• Data splitter VGA
• User manual
