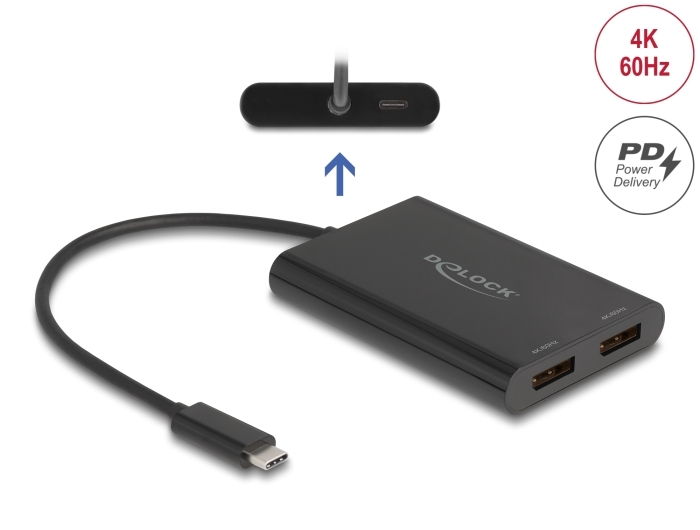

Delock Adapter USB Type-C™ to 2 x DisplayPort 4K 60 Hz with DisplayLink® graphics and USB PD

Reference 64308

Condition: New

More info

The adapter by Delock enables the connection of additional DisplayPort monitors, projectors, etc. to a PC or laptop via USB-C™ connector.
Ultra-HD (4K) resolution is possible when using only one monitor and also when using both DisplayPort outputs at the same time. There is no DisplayPort Alternate Mode support required.

Extended screen by DisplayLink
Due to the DisplayLink graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.

The adapter has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.

System requirements:
• Chrome OS 116.0 or above
• Linux Kernel 6.5 or above
• Mac OS 14.2.1 or above
• Windows 10/10-64/11
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Specification:
• Connectors:
  1 x USB Type-C™ male
  2 x DisplayPort female (DisplayLink®)
  1 x USB Type-C™ female (PD)
• Chipset: DisplayLink DL-6950-N
• Resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Functions: Mirrored or Extended
• USB Power Delivery (PD) 3.0
• Output power for host: max. 100 W
• Colour: black
• Cable length without connectors: ca. 20 cm
• Dimensions (LxWxH): ca. 90 x 62 x 14 mm

Package content:
• USB-C™ to DisplayPort adapter
• User manual

Data sheet:
http://www.delock.de/produkt/64308/pdf.html?sprache=en
