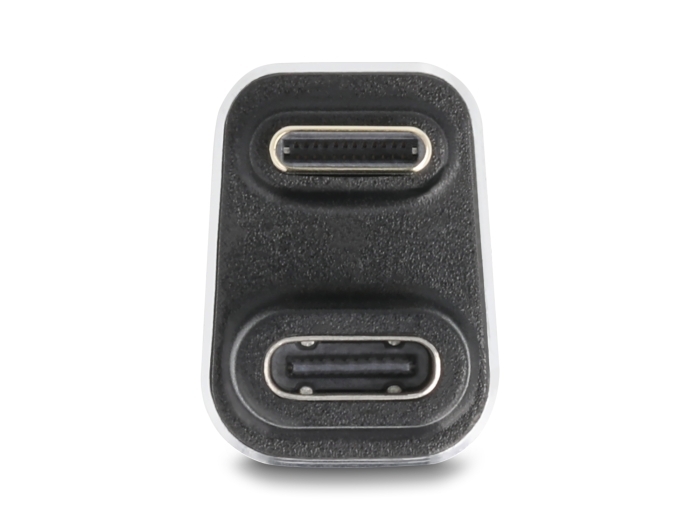

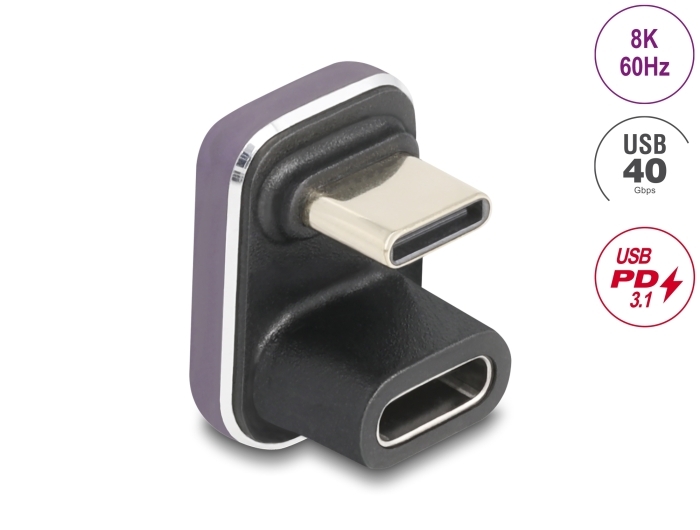

Delock USB-C™ Adapter 180° angled 40 Gbps PD 3.1 240 W male to female U-shape 8K 60 Hz metal

Reference 60737

Condition: New

More info

This USB-C™ adapter by Delock can be used when connecting USB-C™ devices, such as smartphones and tablets. With a transfer speed of up to 40 Gbps and support for USB Type-C™ PD 3.1, this adapter enables lightning-fast data transfers and an efficient power supply up to 240 W.

Innovative U-shape design

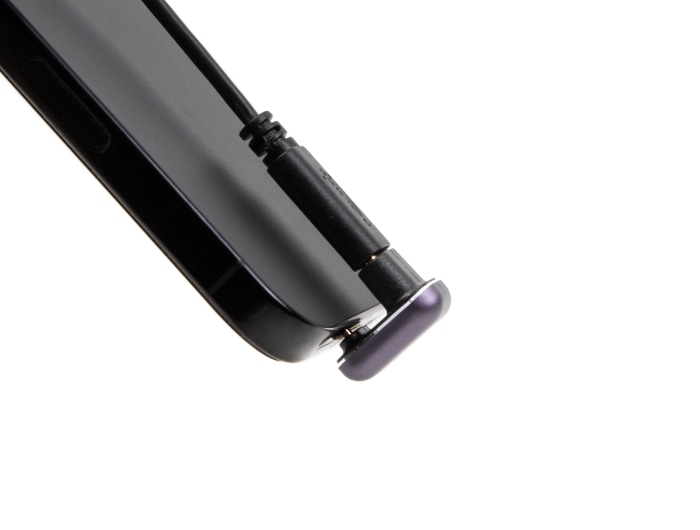

Thanks to the innovative U-shape design, you can rotate the USB-C™ socket by 180°, making the connection even easier to access. The adapter can also be used as a port protector to protect the USB-C™ interface in applications with high mating cycles.

Optically and qualitatively the adapter convinces by its elegant metal housing, which makes it very robust and durable.

Specification:
• Connectors:
  1 x USB 40 Gbps USB Type-C™ male
  1 x USB 40 Gbps USB Type-C™ female
• Data transfer rate up to 40 Gbps
• USB Power Delivery (USB PD 3.1) support up to 240 watt
• Output current: up to 5 A
• Voltage: max. 48 V
• Supports DP Alt Mode
• Maximum resolution (depending on the system and the connected hardware):
  DisplayPort 1.4 with DSC: up to 7680 x 4320 @ 60Hz
  DisplayPort 1.4 with DSC: up to 3840 x 2160 @ 144 Hz
• Transmission of audio and video signals
• HDCP and HDR support
• Downwards compatible to USB 3.2, USB 2.0, Thunderbolt™ 4 and Thunderbolt™ 3
• Useable on both sides
• Housing material: metal
• Colour: violet
• Dimensions (LxWxH): ca. 21 x 15 x 14 mm

Package content:
• USB adapter

Data sheet:
http://www.delock.de/produkt/60737/pdf.html?sprache=en
