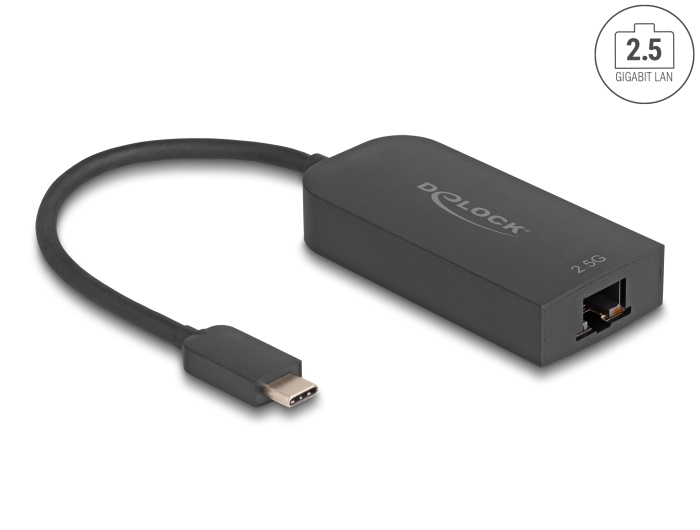

Delock USB Type-C™ Adapter to 2.5 Gigabit LAN

Reference 66046

Condition: New

More info

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

System requirements:
• Android 11.0 or above
• Chrome OS 113.0 or above
• Linux Kernel 3.10 or above
• Mac OS 10.6 or above
• Windows 10/10-64/11
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port

Specification:

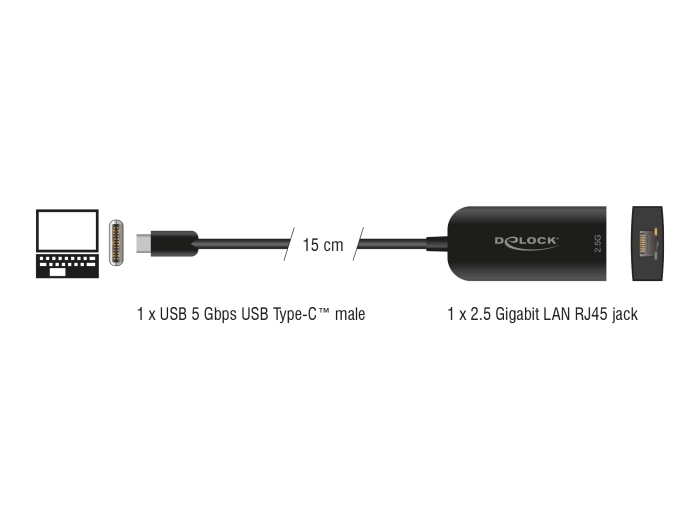

• Connectors:
  1 x USB 5 Gbps USB Type-C™ male
  1 x 2.5 Gigabit LAN RJ45 jack
• Chipset: ASIX AX88279
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Supports 9k Jumbo Frames
• LED indicator for link and activity
• USB bus powered
• Colour: black
• Cable length without connectors: ca. 15 cm
• Dimensions (LxWxH): ca. 75 x 35 x 15 mm

Package content:
• USB Type-C™ 2.5 Gigabit LAN adapter
• User manual

Data sheet:
http://www.delock.de/produkt/66046/pdf.html?sprache=en
