New

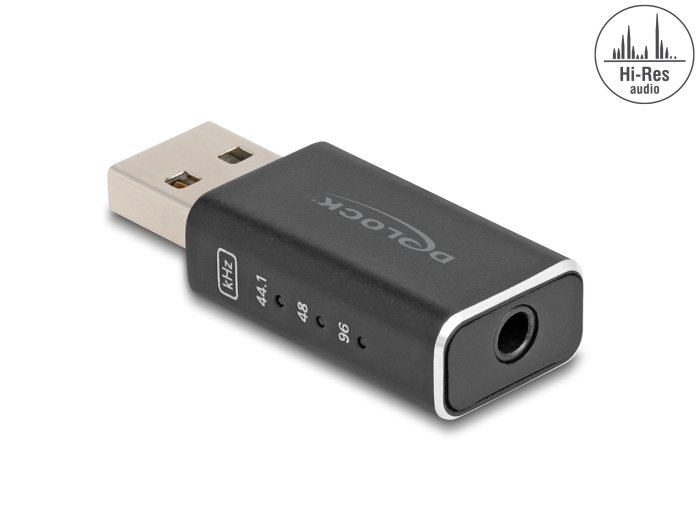

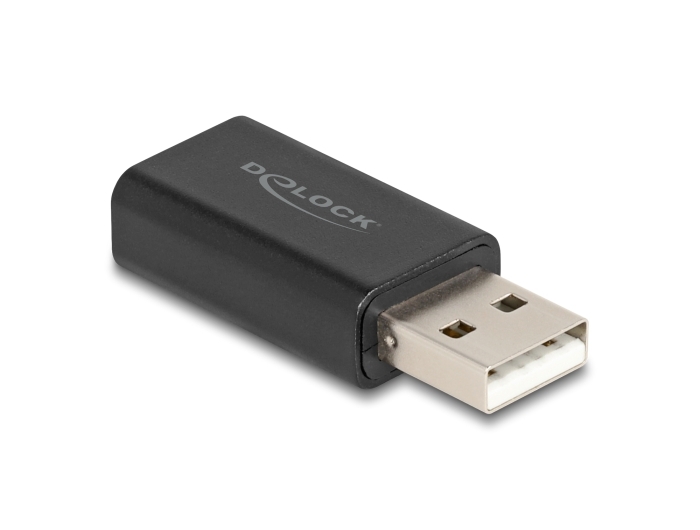

Delock USB Gaming DAC 24 Bit / 96 kHz High Res Audio

Reference 68001

Condition: New

More info

The USB Gaming DAC by Delock is a compact and portable digital-to-analog converter (DAC) that can significantly improve the sound experience of gaming headsets and headphones.

High-Resolution Audio
The sound adapter supports high-resolution audio formats up to 24 bit / 96 kHz, resulting in a crystal-clear sound image with impressive detail.

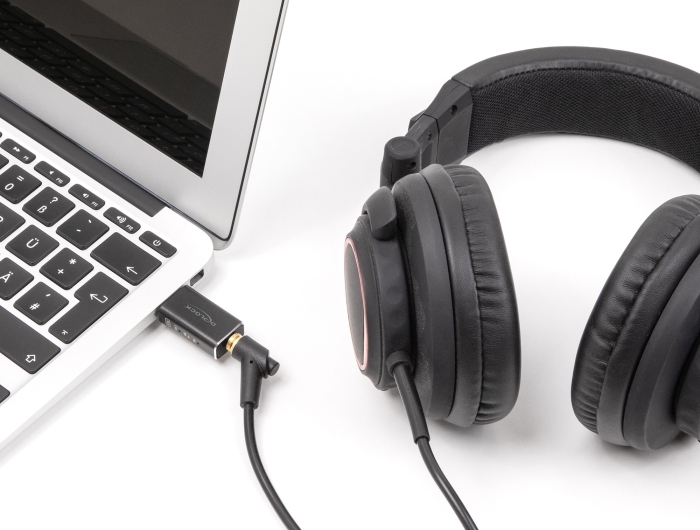

The Gaming DAC can be used with a wide range of audio devices, including gaming headsets, headphones and external speakers.

Compact design
The compact design of the Gaming DAC makes it an ideal solution for mobile gamers or sound enthusiasts. It can easily be carried in a backpack or hand luggage so that high-quality audio playback can also be enjoyed on the move.

Plug & Play
Due to USB Plug & Play, the adapter is immediately ready for use and no driver installation is necessary. The adapter works with all common operating systems such as Windows, Mac OS, Chrome OS, Linux and Android.

System requirements:
• Android 13.0 or above
• Chrome OS 116.0 or above
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
1 x USB 2.0 Type-A male
1 x 3.5 mm 4 pin stereo jack female (CTIA standard)
• Chipset: KT02F20 + MAX97220A
• Supported sample rates: 44.1 / 48 / 96 kHz (depending on the system and the connected devices)

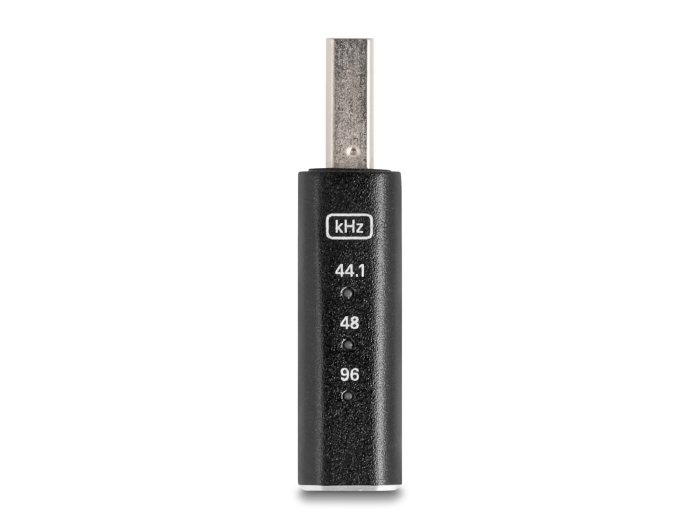

• LED indicator for sampling rates
• USB audio device specification 1.0
• Up to 24 Bit / 96 kHz sampling rate for playback and 24 Bit / 48 kHz for recording
• Signal-to-noise ratio (SNR): ca. 103 dB
• Frequency response: 20 Hz - 20 kHz +/- 0.5 dB
• Total Harmonic Distortion + Noise (THD+N): 0.003 % @ 1 mW
• Headphone-Drive Ability: 16 - 300 Ohm
• USB bus powered
• Plug & Play
• Dimensions (LxWxH): ca. 41.8 x 17.2 x 9.8 mm

Package content:
• USB sound adapter
• User manual

Data sheet:
http://www.delock.de/produkt/68001/pdf.html?sprache=en
