New

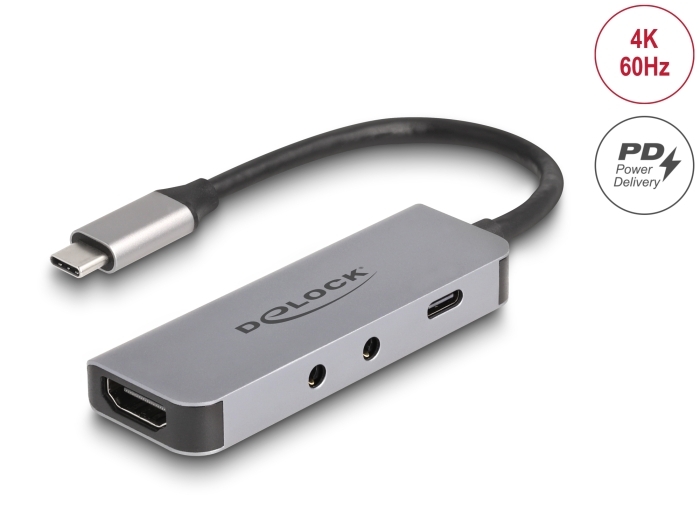

Delock USB Type-C™ Adapter to HDMI 4K 60 Hz and Headset and Microphone port + USB Type-C™ PD 95 W

Reference 61064

Condition: New

More info

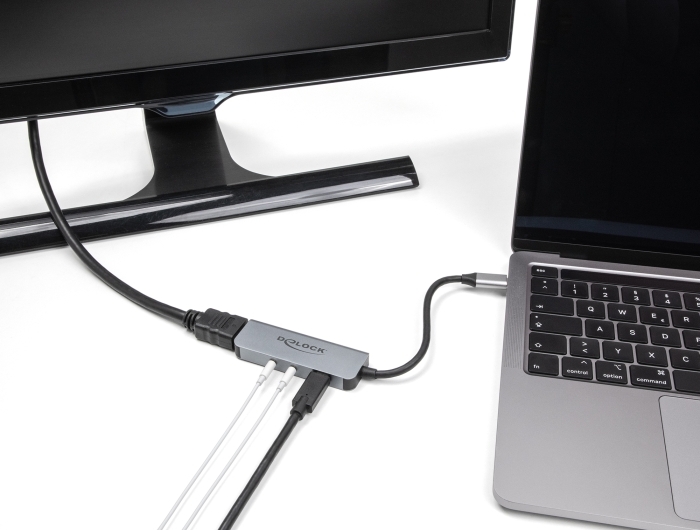

This adapter by Delock is suitable for the connection of a HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Thus, the adapter can be connected to different laptops like MacBook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 or Thunderbolt™ 4 interface.

Two additional audio ports
One of the two audio ports can be connected to a headset or headphone, the other port can be used for a microphone.

This adapter has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 95 watts during operation.

Adapter USB-C™ to HDMI 4K HDR with 2 x stereo jack and Power Delivery female

System requirements:
• Android 13.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• iPhone 15 Pro or above
• Surface Pro 7
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Specification:
• Connectors:
  1 x USB Type-C™ male
  1 x HDMI female
  1 x 3.5 mm 4 pin stereo jack female (TRRS)
  1 x 3.5 mm 3 pin stereo jack female microphone
  1 x USB Type-C™ Power Delivery female
• DisplayPort 1.4 and High Speed HDMI with Ethernet (HEC) specification
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Sample rate: 24 Bit / 48 kHz for record and playback
• Output power for host: max. 95 W
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Bootable
• USB bus powered
• Plug & Play
• Metal housing
• Cable length without connectors: ca. 15 cm
• Colour: grey

Package content:
• USB-C™ to HDMI Adapter + USB
• User manual

Data sheet:
http://www.delock.de/produkt/61064/pdf.html?sprache=en
