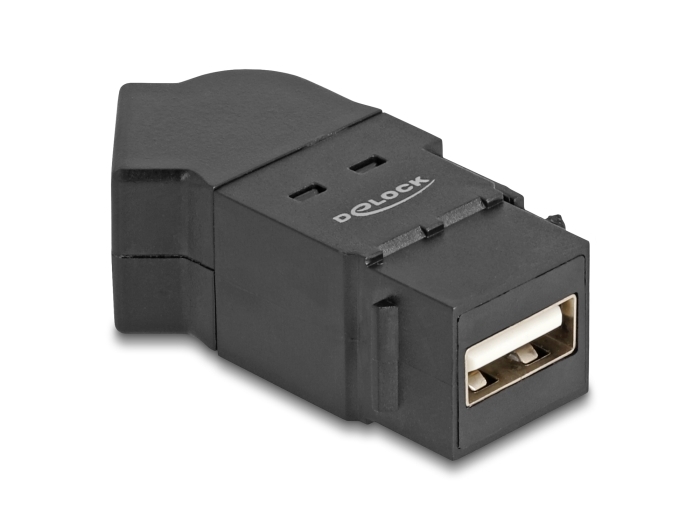

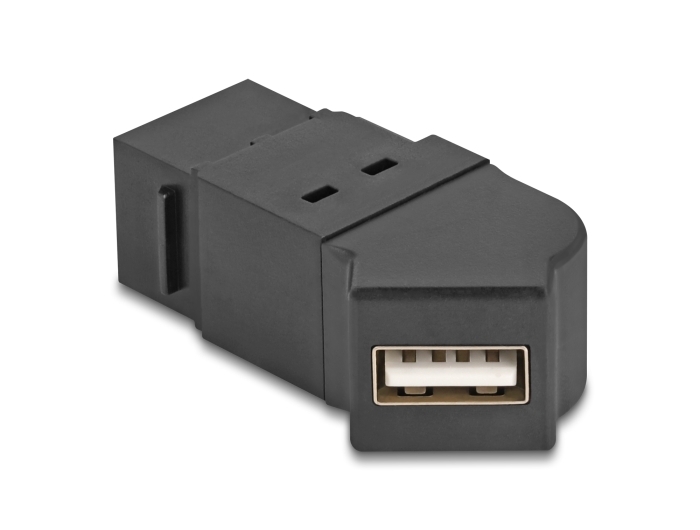

Delock USB 2.0 Type-A panel mount female to Type-A female 45° angled black

Reference 67150

Condition: New

More info

This module by Delock can be used to extend e.g. a USB cable.

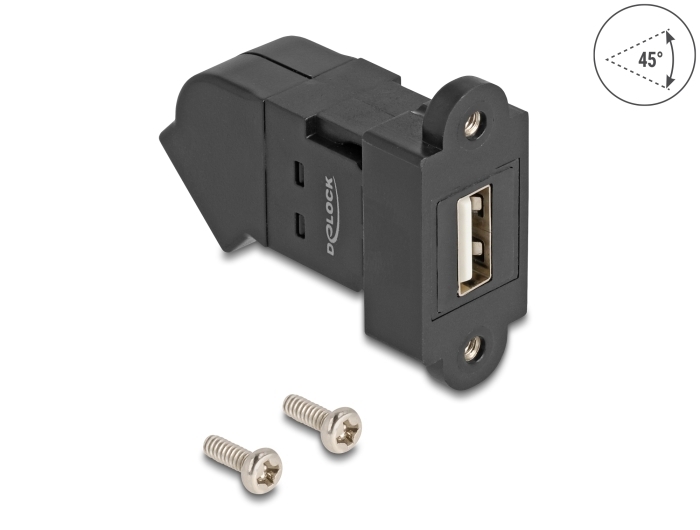

With mounting holder for installation
The adapter can be installed e.g. on a panel, in a housing or switch cabinet.

The angled connection enables space-saving installation in tight spaces and hard to reach places in equipment or in cable ducts.

Specification:
• Connectors:
1 x USB 2.0 Type-A female for installation
1 x USB 2.0 Type-A female 45° angled
• Data transfer rate up to 480 Mbps
• With mounting holder for installation
• Holder (WxH): ca. 40 x 18 mm
• Mounting hole diameter: ca. 2.2 mm
• Pitch of screw hole: ca. 30 mm
• Screw connection #4-40 UNC
• Material: PC + ABS
• Colour: black
• Dimensions (LxWxH): ca. 47 x 40 x 24 mm

Package content:
• USB module
• 2 x screw

Data sheet:
http://www.delock.de/produkt/67150/pdf.html?sprache=en
