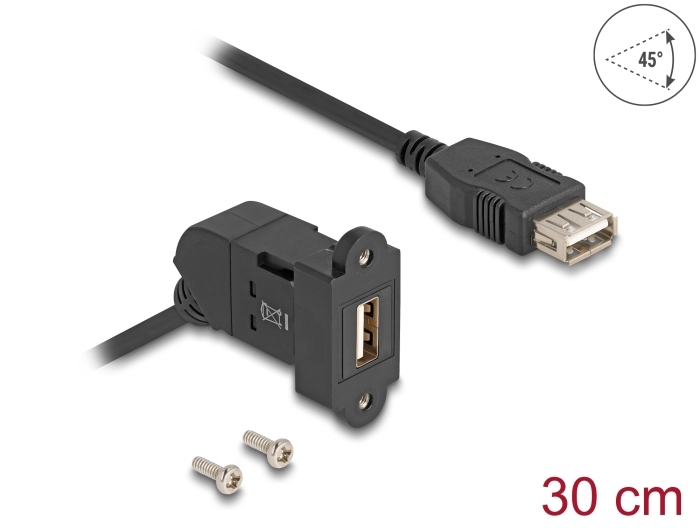

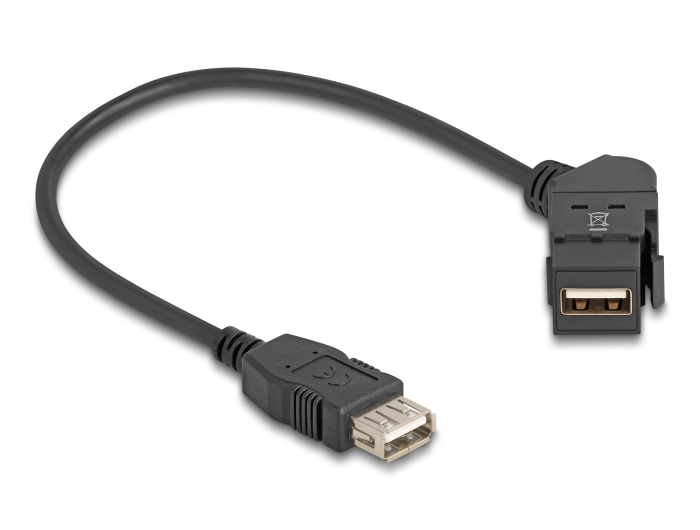

Delock USB 2.0 Type-A panel mount female 45° angled to Type-A female with 30 cm cable black

Reference 67152

Condition: New

More info

This module by Delock can be used to extend e.g. a USB cable.

With mounting holder for installation
The adapter can be installed e.g. on a panel, in a housing or switch cabinet.

With angled connection
The angled connection enables space-saving installation in tight spaces and hard to reach places in equipment or in cable ducts.

Specification:
• Connectors:
  1 x USB 2.0 Type-A female
  1 x USB 2.0 Type-A female 45° angled for installation
• Data transfer rate up to 480 Mbps
• Cable gauge:
  28 AWG data line
  24 AWG power line
• Current: max. 0.8 A
• Electrical power: max. 4 watt
• With mounting holder for installation
• Holder (WxH): ca. 40 x 18 mm
• Mounting hole diameter: ca. 2.2 mm
• Pitch of screw hole: ca. 30 mm
• Screw connection #4-40 UNC
• Cable diameter: ca. 4.5 mm
• Housing material: PC + ABS
• Colour: black
• Cable length: ca. 30 cm

Package content:
• USB cable
• 2 x screw

Data sheet:
http://www.delock.de/produkt/67152/pdf.html?sprache=en
