Delock 10 Gbps USB Hub with 2.5 Gigabit LAN port and PD 85 Watt

Reference 64110

Condition: New

More info

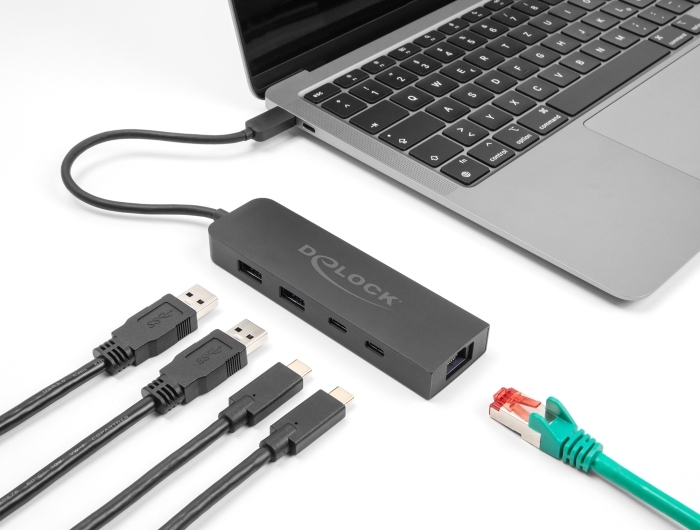

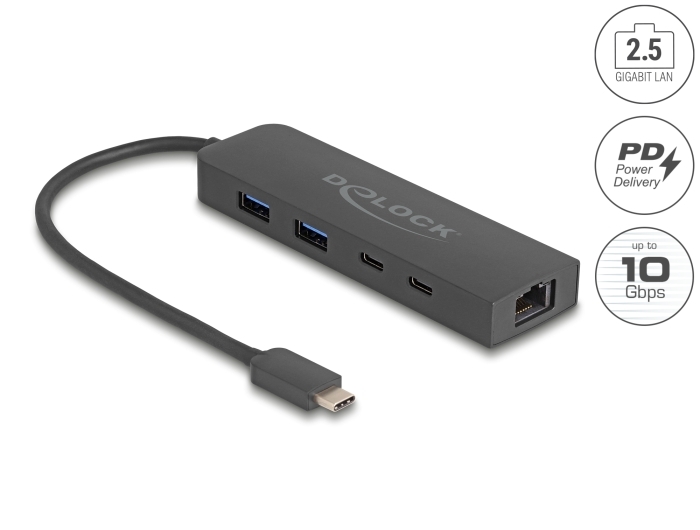

The USB hub by Delock can be connected via USB Type-C™ interface to a PC or laptop. It has two USB Type-A connectors as well as two USB Type-C™ connectors. Up to 3 USB devices can be connected to the hub.

Integrated 10/100/1000/2500 Mbps LAN interface
In addition, the hub with integrated RJ45 2.5 Gigabit LAN connection expands a PC or laptop by a network interface via the USB Type-C™ connection.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

The hub has a USB Type-C™ Power Delivery port to connect the laptop or tablet to charge it. The hub can also be used without a power supply.

System requirements:
• Android 14.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• iPhone 15 Pro or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Specification:
• Connectors:
  1 x USB 10 Gbps USB Type-C™ male
  1 x USB 10 Gbps USB Type-C™ female
  2 x USB 10 Gbps Type-A female
  1 x 2.5 Gigabit LAN RJ45 jack
  1 x USB Type-C™ Power Delivery female
• Chipset: Realtek RTL8156B, VIA VL822
• Data transfer rate:
  USB up to 10 Gbps
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports Wake On LAN (WOL)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Supports 16k Jumbo Frames
• Electrical power (depends on host, distribution of total power to individual ports):
  total: max. 12 watt (5 V / 2.4 A)
  port 2: max. 4.5 watt (5 V / 0.9 A)
  port 1 + 3: max. 7.5 watt (5 V / 1.5 A)
• Input power PD: 100 W, 15 W are used for the hub
• Output power PD for host: max. 85 W
• Plug & Play
• Colour: black
• Dimensions (LxWxH): ca. 118 x 34 x 15 mm
• Cable length incl. connector: ca. 20 cm

Package content:
• USB hub + LAN
• User manual

Data sheet:
http://www.delock.de/produkt/64110/pdf.html?sprache=en
