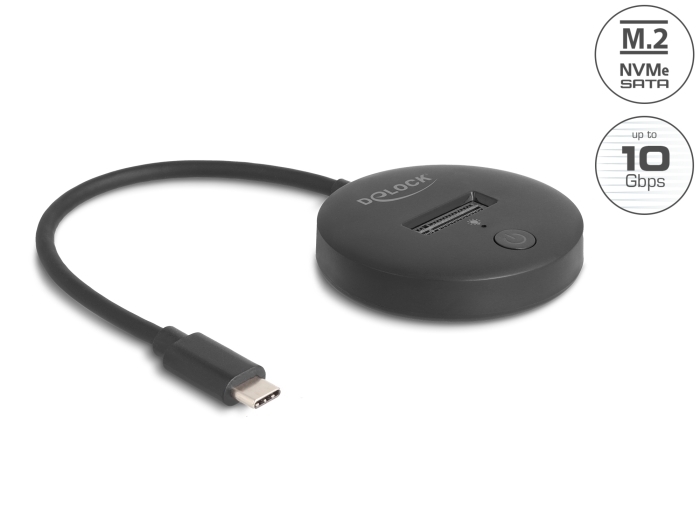

Delock M.2 Docking Station for M.2 NVMe / SATA SSD with USB 10 Gbps USB Type-C™ male

Reference 64254

Condition: New

More info

This M.2 docking station by Delock enables the installation of an M.2 PCIe NVMe SSD or M.2 SATA SSD and it can be connected via USB to the PC or laptop.

Combo docking station
The big advantage of this Delock M.2 docking station is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the docking station. The memory is automatically recognized by the chipset and can then be used.

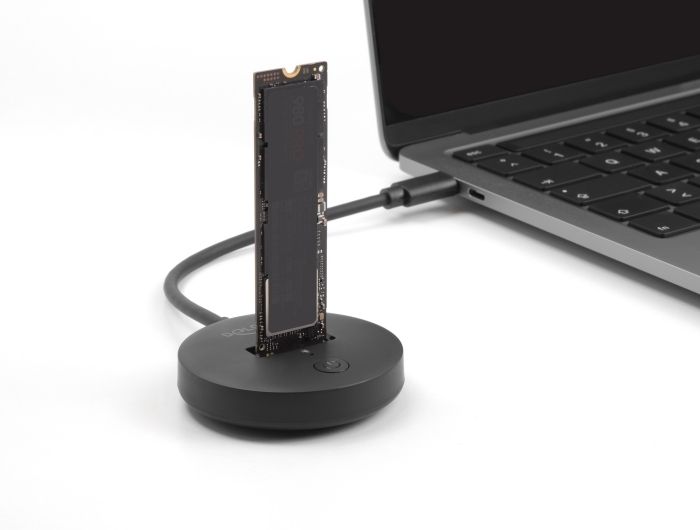

The M.2 SSD is simply plugged into the slot and connected to the device via USB-C™ plug. Therefore, the docking station is most suitable as test equipment.

System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Specification:
• Connectors:
1 x USB 10 Gbps USB Type-C™ male
1 x M.2 key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules with key M or key B+M based on SATA or PCIe (NVMe)
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• 1 x On / Off switch
• Cable length without connectors: ca. 15 cm
• Dimensions: diameter ca. 60 mm, height ca. 19 mm
• Hot Plug, Plug & Play

Package content:
• M.2 docking station
• User manual

Data sheet:
http://www.delock.de/produkt/64254/pdf.html?sprache=en
