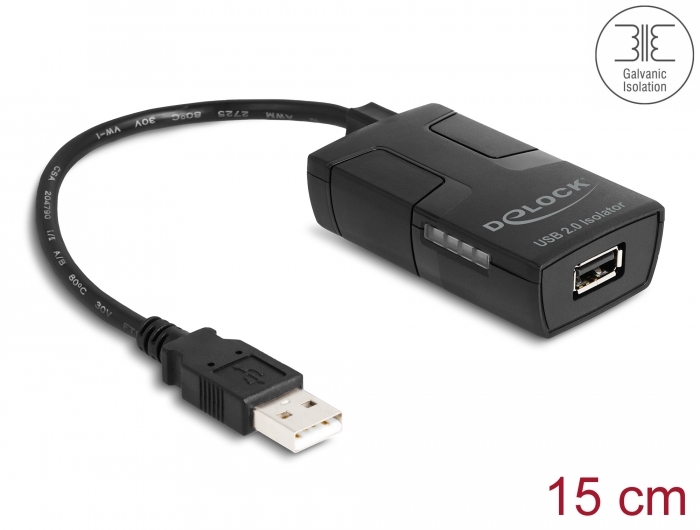

Delock Isolator USB 2.0 Type-A male to female with 5 kV Isolation for data lines

Reference 64225

Condition: New

More info

The USB isolator by Delock separates the electrical connection of the data lines between Host-PC and USB device. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 2.0 specification with Low-, Full and High-Speed.

Converter for voltage supply
A DC to DC converter inside the USB isolator allows the separation between host and device of the USB power lines.

System requirements:
• PC or laptop with a free USB port

Specification:
• Connectors:
  1 x USB 2.0 Type-A male (host)
  1 x USB 2.0 Type-A female (device)
  1 x DC jack
• Data transfer rate up to 480 Mbps
• Bootable
• LED indicator for power
• 5 kV optical isolation for data
• 3 kV isolation for power
• Power supply: Bus-powered or Self-powered, Bus-powered up to 300 mA
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: 0 °C ~ 60 °C
• Housing material: plastic
• Dimensions (LxWxH): ca. 66 x 39 x 20 mm
• Cable length: ca. 15 cm

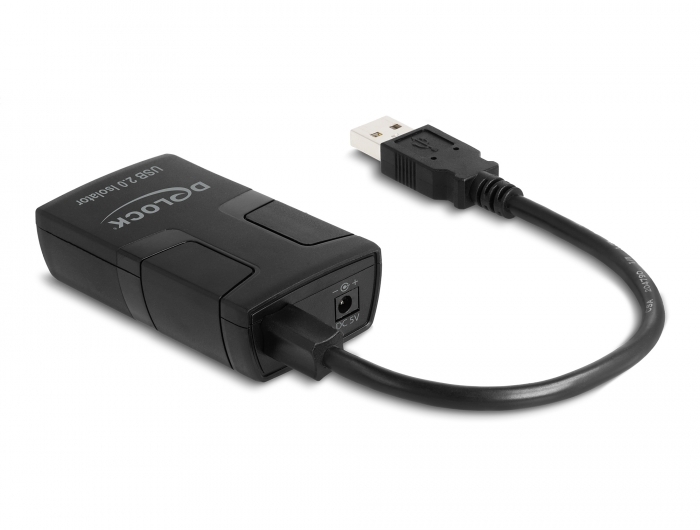

Specification of power connector
• 5 V, ground outside, plus inside
• Dimensions:
  inside: ø ca. 1.35 mm
  outside: ø ca. 3.5 mm
  length: ca. 9.5 mm

Package content:
• Isloator
• User manual

Data sheet:
http://www.delock.de/produkt/64225/pdf.html?sprache=en
