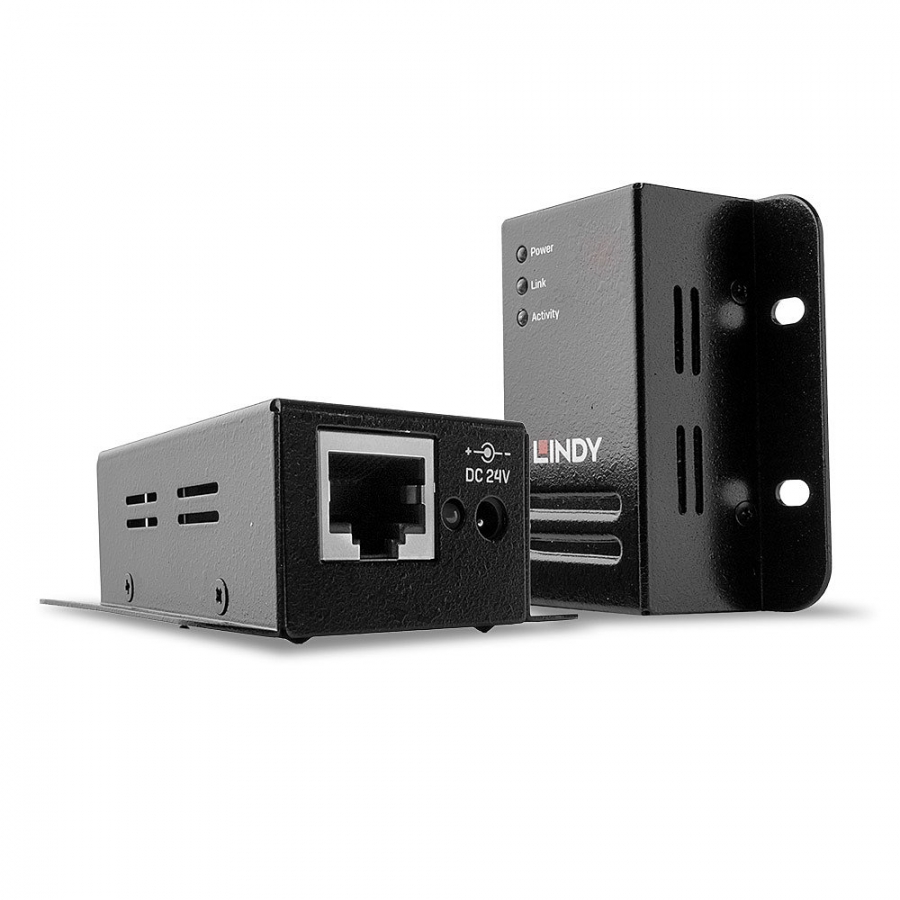

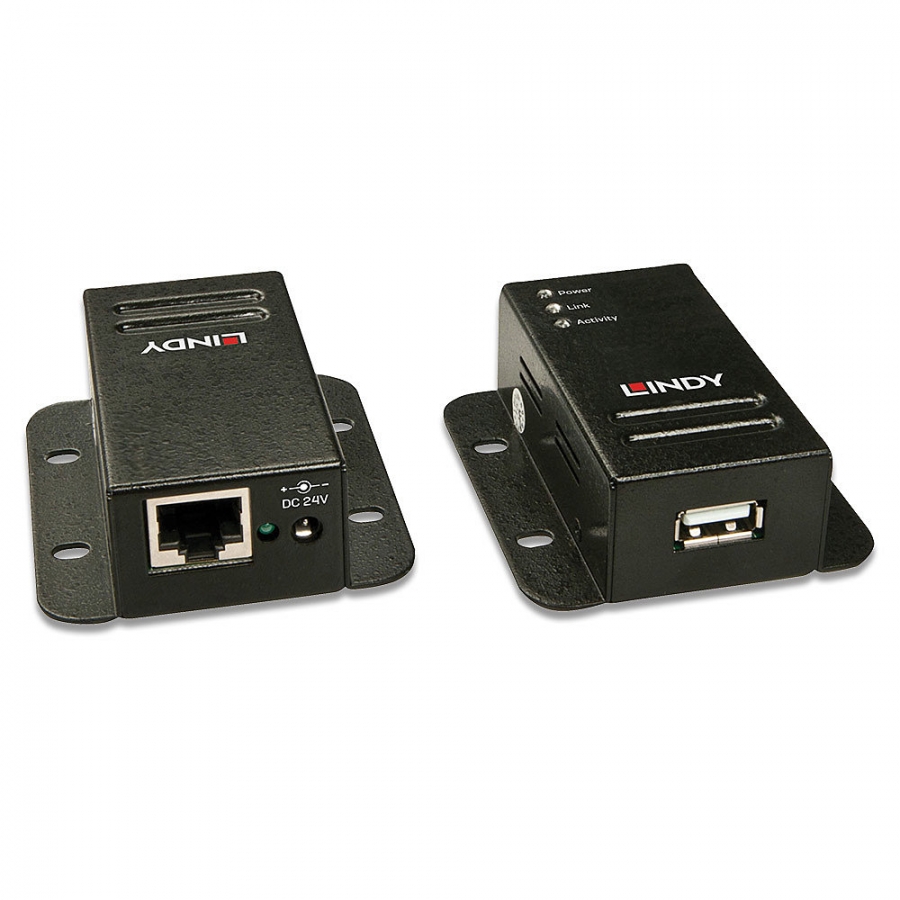

LINDY Extender USB 2.0 Cat5 Power over RJ45 50m

Reference 42680

Condition: New

More info

Extend a USB 2.0 port up to 50m using low cost CAT5/5e/6 network cable (not included) Power over Cable requires a single power supply to be connected to the transmitter only Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed Plug & Play installation 2 year warrantyThe Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m. A standard, low cost Cat.5/5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Type	Network transmitter & receiver
Maximum transfer distance	50 m
Data transfer rate	480 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6
Chipset	NS1021
Plug and Play	Y
RJ-45 ports quantity (transmitter)	1
RJ-45 ports quantity (receiver)	1
USB 2.0 ports quantity	2
DC-in jack	Y
Product colour	Black
Housing material	Metal
LED indicators	Y
Certification	CE, UKCA, FCC, RoHS, REACH
Input current	0.25 A
Output voltage	24 V
Output current	0.5 A
Power over Ethernet (PoE)	Y
Power note	3.5/1.35mm DC
Included power plug types	AU, EU, UK, US
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Weight	300 g
Transmitter width	6 cm
Transmitter depth	6.7 cm
Transmitter height	2.3 cm
Receiver width	6 cm
Receiver depth	6.7 cm
Receiver height	2.3 cm
Cables included	USB Type-A to USB Type-B
Manual	Y
Package type	Box
Package width	185 mm
Package depth	140 mm
Package height	55 mm
Package weight	400 g
Harmonized System (HS) code	85176990
