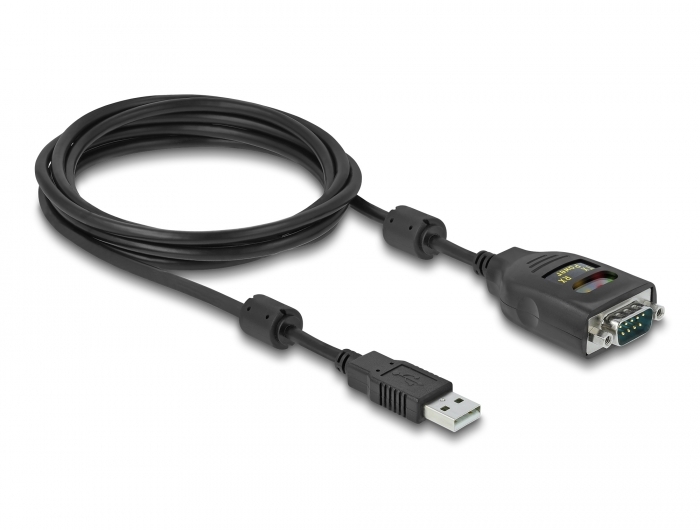

Delock Adapter USB 2.0 Type-A to Serial RS-232 D-Sub 9 pin 2.5 kV Galvanic Isolation 2 m

Reference 64154

Condition: New

More info

This USB Type-A to serial RS-232 adapter by Delock provides a compatible RS-232 DB9 interface for printers, measuring instruments, controllers, IoT devices etc.

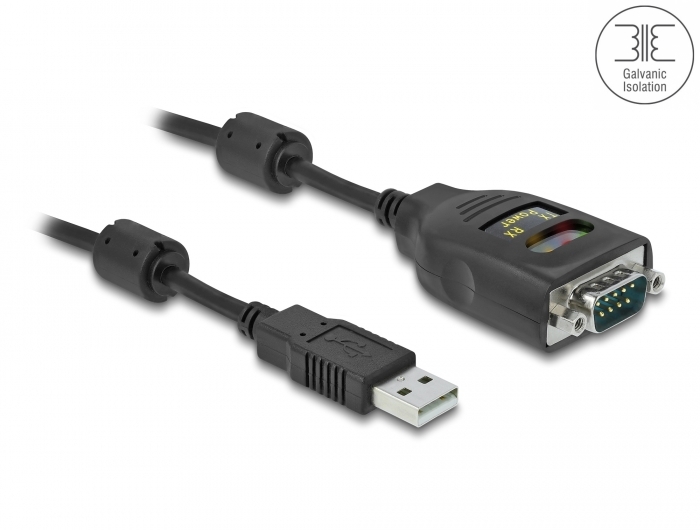

Galvanic isolation
The USB 2.0 to serial RS-232 adapter completely decouples the USB and RS-232 connection and the USB power supply. This ensures data transmission at different ground potentials, separates any ground and hum loops that occur, and prevents interruptions caused by electromagnetic discharges or over voltages.

Two ferrite cores on the USB 2.0 cable filter high-frequency interference signals.

System requirements:
• Linux Kernel 3.3 or above
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
  1 x USB 2.0 Type-A male
  1 x serial RS-232 DB9 male with nuts
• 2.5 kV VRMS (max. 3.5 kV) galvanic isolation
• USB bus powered
• Chipset: FTDI FT231XS
• Compatible with USB 3.0, USB 2.0, and USB 1.1
• Data transfer rate up to 921.6 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• 2 x ferrite core
  Impedance: 25 MHz / 60 Ω,100 MHz / 111 Ω

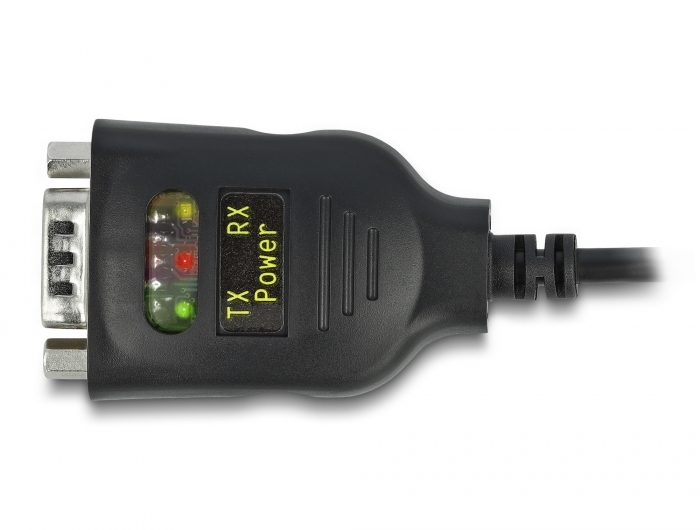

• 3 x LED indicator
• Housing: plastic
• Operating temperature: -40 °C ~ 85 °C

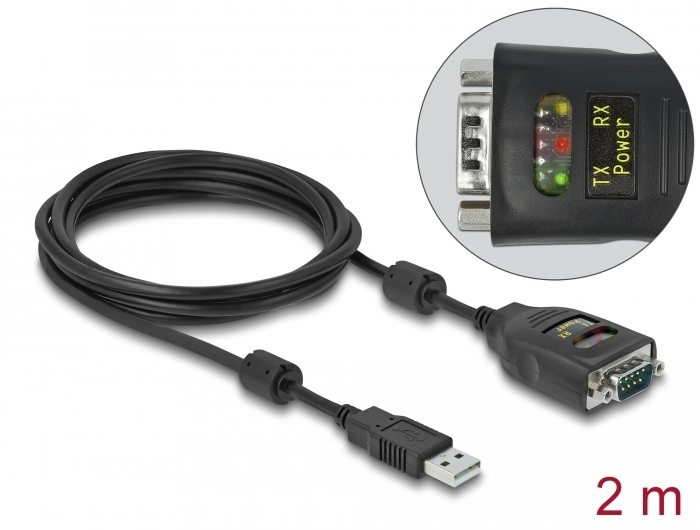

• Cable length without connectors: ca. 2 m

Package content:
• USB 2.0 to 1 x serial adapter
• Driver CD
• User manual
