Delock M.2 Docking Station for M.2 NVMe PCIe SSD with USB Type-C™ female

Reference 64000

Condition: New

More info

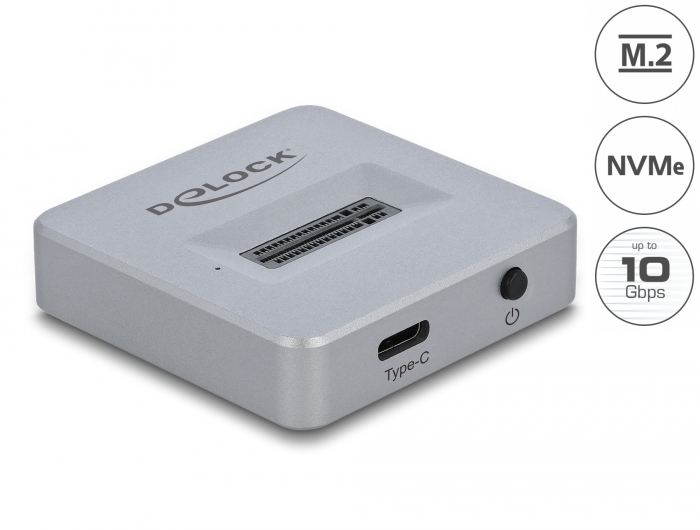

This M.2 docking station by Delock enables the installation of an M.2 PCIe NVMe SSD and it can be connected via USB to the PC or laptop. The included USB cables allow the connection to a free USB Type-A or USB-C™ port.

Ideal test equipment

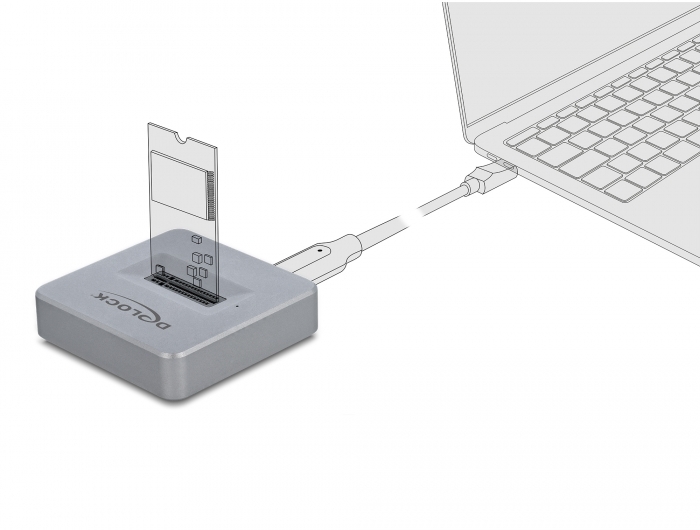

The memory is simply plugged into the robust metal housing and can be used immediately. No screws, tools or accessories are required, which means that the SSD can be changed quickly.

System requirements:
• Chrome OS 78.0 or above
• Linux Kernel 4.3 or above
• Mac OS 10.15.2 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ port or
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
1 x 67 pin M.2 key M slot
• Chipset: Asmedia ASM2362
• Supports M.2 modules with key M or key B+M based on PCIe (NVMe)
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• 1 x On / Off switch
• Metal housing
• Dimensions (LxWxH): ca. 49 x 49 x 12 mm
• Hot Plug, Plug & Play

Package content:
• M.2 docking station

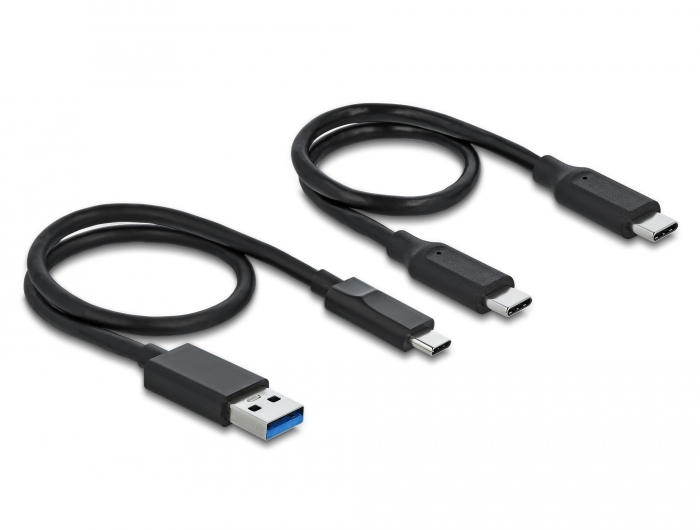

• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• Cable USB-C™ male to USB Type-A male, length ca. 30 cm
• User manual
