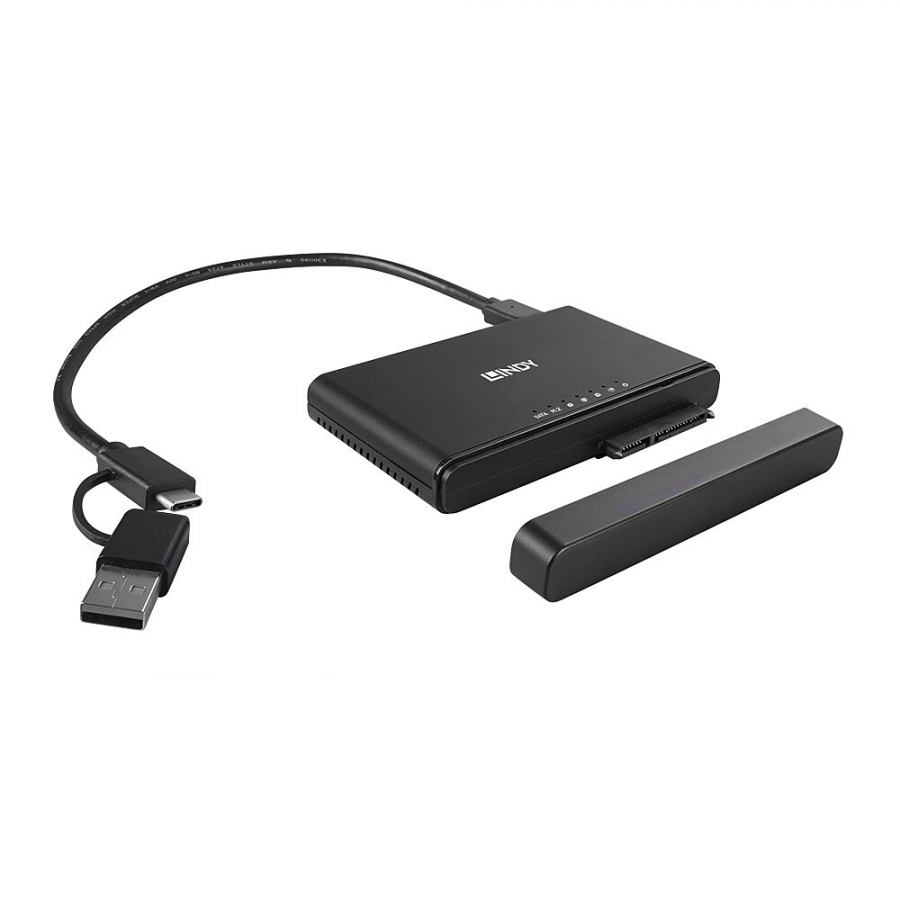

Lindy USB 3.2 Type C to M.2 NVMe & SATA SSD Docking & Clone Station

Specifications

• Interface: USB Type C to M.2 NVMe and SATA
• Interface Standard: USB 3.1 Gen 2, PCIe Gen 3x2, SATA 3.0
• Supported Bandwidth: 10Gbps, 15.75Gbps, 6Gbps
• Chipset: JMS581D
• Compatibility: USB Type C and Type A equipped computers
• Special Features: -

Connectors

• Inputs: 1 x USB Type C (Female)
• Outputs: 1 x PCIe based M.2 (M key and M+B key), SATA 22 Pin (Male)
• Power: 5.5/2.5mm DC socket

Physical Properties

• Dimensions WxDxH: 102x67.5x14.5mm (4.02x2.66x0.57in)
• (Fixed) Cable Length: -
• Housing Material: Aluminium & Plastic
• Net Weight: 0.26kg (0.57lb)
• Operating Temperature: 5°C - 35°C (41°F - 95°F)
• Storage Temperature: -20°C - 50°C (-4°F - 122°F)
• Humidity: 0 - 80% RH (non-condensing)
• Power Requirements: 12VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 160x110x100mm (6.3x4.33x3.94in)
• Gross Weight: 0.39kg (0.86lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, CP65

Package Contents

• USB 3.2 Type C to M.2 NVMe & SATA SSD Docking & Clone Station
• 12V DC 2A Multi-Country power supply
• USB 3.2 Gen 2 Type C to Type C/A cable, 26cm
• Aluminium sheet
• Thermal conductive silicone pad
• M.2 rubber cartridge
• Lindy Manual

Purchasing information

• No.: 43359
• EAN: 4002888433594
