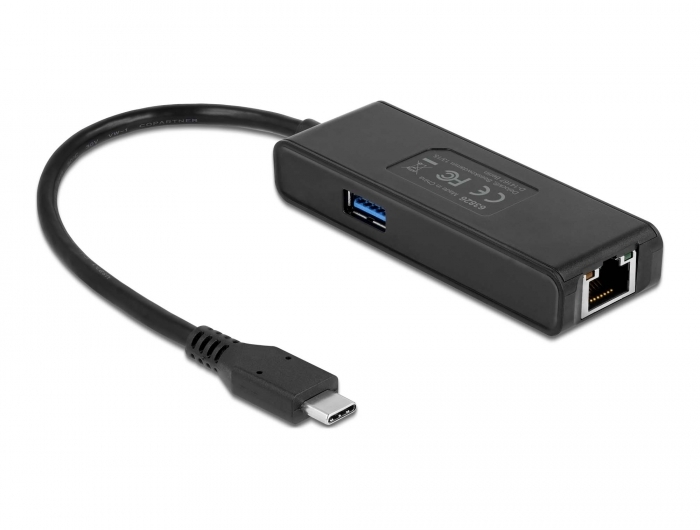

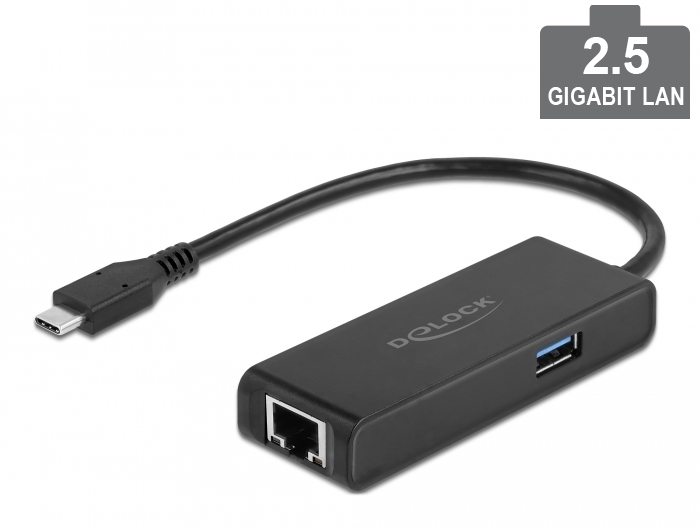

Delock USB Type-C™ Adapter to 2.5 Gigabit LAN with USB Type-A female

Reference 63826

Condition: New

More info

The adapter by Delock expands a device with USB-C™ or Thunderbolt™ 3 port by one network interface and one SuperSpeed USB Type-A female.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Additional USB Type-A port
A USB memory, mouse or keyboard can be connected to the USB Type-A port.

System requirements:
• Chrome OS 83.0 or above
• Linux Kernel 4.6.4 or above
• Mac OS 10.15.6 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port

Specification:
• Connectors:
  1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male
  1 x Gigabit LAN RJ45 jack
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
• Chipset: Realtek RTL8156, Genesys Logic GL3510
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
• Compatible with:
  IEEE 802.3: 10BASE-T
  IEEE 802.3u: 100BASE-TX
  IEEE 802.3ab: 1000BASE-T
  IEEE 802.3bz: 2.5GBASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation
with back-pressure
• Supports 16k Jumbo Frames
• LED indicator for link and activity
• USB bus powered
• Colour: black
• Dimensions (LxWxH): ca. 82 x 29 x 15 mm
• Cable length without connectors: ca. 15 cm

Package content:
• USB Type-C™ 2.5 Gigabit LAN adapter
• User manual

Data sheet:
http://www.delock.de/produkt/63826/pdf.html?sprache=en
