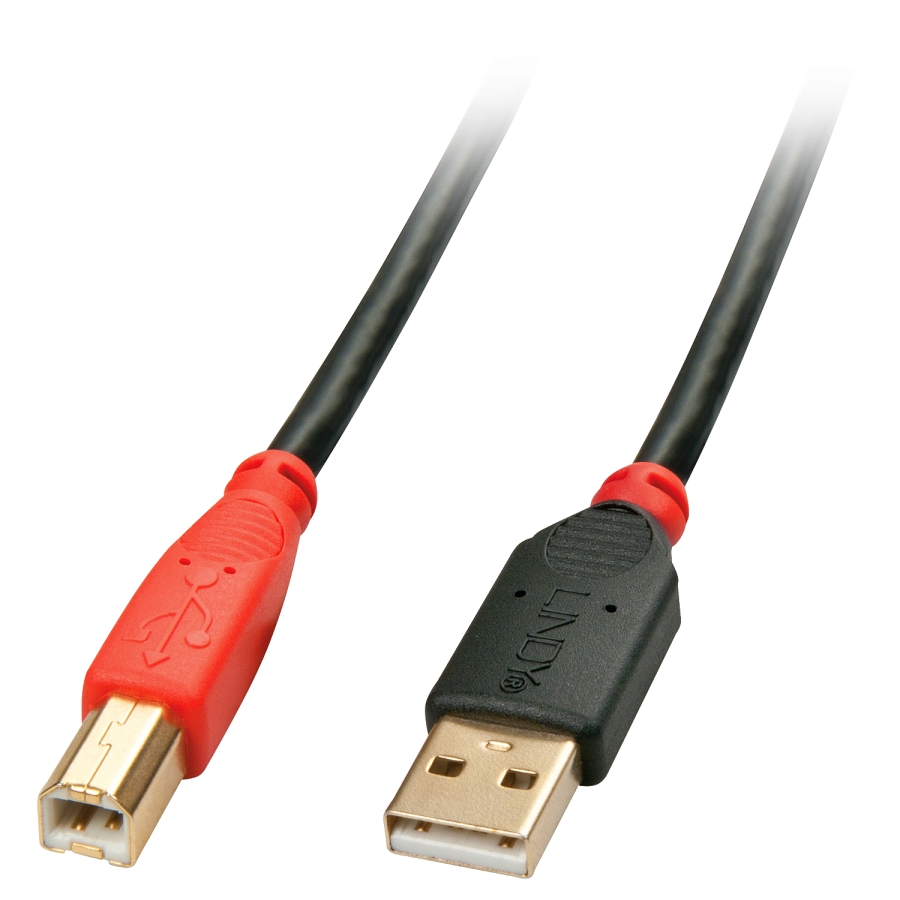

Lindy 20m USB 2.0 Active Cable

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type B Male
• Power: -
• Housing Material: Plastic
• Connector Plating: Front: Gold / Back: Nickel
• Pin Construction: Brass
• Pin Plating: Gold Flash
• Dimensions (approx.) WxDxH:
  • USB A Male: 14x41x6mm (0.55x1.61x0.24in)
  • USB B Male: 10x41x10mm (0.39x1.61x0.39in)



Cable Construction

• Length: 20m (66.27ft)
• Standard: USB 2.0
• Colour: Black
• Type:  Round
• Jacket Diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)
• Jacket Material: Half matt PVC low toxic
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/20AWG
• Shielding: AL Mylar and braid

Specifications

• Supported Bandwidth: 480 Mbps
• Nominal Attenuation:
  • (0.064 MHz, -0.08 dB)
  • (0.256MHz, -0.11 dB)
  • (0.512MHz, -0.13 dB)
  • (0.772 MHz, -0.15 dB)
  • (1 MHz, -0.2 dB)
  • (4 MHz, -0.39 dB)
  • (8 MHz, -0.57 dB)
  • (12 MHz, -0.76 dB)
  • (24 MHz, -0.95 dB)
  • (48 MHz, -1.35dB)
  • (96 MHz, -1.9 dB)
  • (200 MHz, -3.2 dB)
  • (400 MHz, -5.8 dB)
• Minumum Bend Radius: 26mm (1.02in)
• Maximum Tensile Load: -
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 2.0

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 300x315x20mm (11.81x12.4x0.79in)
• Net Weight: 0.712kg (1.57lb)
• Gross Weight: 0.75kg (1.65lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Packaging Content

• USB 2.0 Active Cable 20m

Purchasing Information

• No.: 42763
• EAN: 4002888427630

This product is also available in other lengths

• 42761 - 10m (32.8ft)
