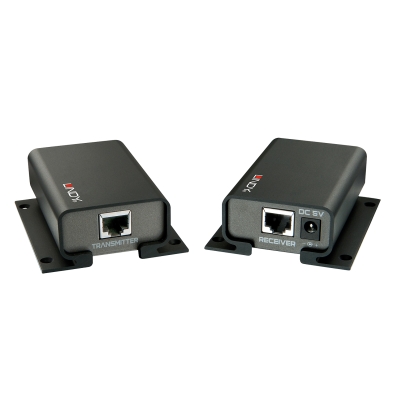

Lindy 2000m USB RS232 Cat.5 Extender

Specifications

• USB Standard: USB 1.1
• Supported Bandwidth: 12Mbps
• Maximum Distance: 2000m (6561.6ft)
• Transmission Medium: Cat.5/5e/6 or higher network cable
• Chipset: UTS-i101
• Special Features: -

Connectors

• Transmitter Input: USB Type B (Female)
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Output: RS232 9 Way D (Male)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxDxH: 73x90x31mm (2.87x3.54x1.22in)
• Housing Material: Aluminium
• Net Weight: 0.332kg (0.73lb)
• Operating Temperature: -40° - 85°C (-40°F - 185°F)
• Storage Temperature: -40° - 85°C (-40°F - 185°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 215x155x50mm (8.46x6.1x1.97in)
• Gross Weight: 0.693kg (1.53lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• Transmitter unit
• Receiver unit
• 1.6m USB A Male to B Male cable
• Assembly Screws
• Multi-Country Power Supply (EU, UK, US & AUS)
• Driver CD
• Lindy Manual

Purchasing information

• No.: 32155
• EAN: 4002888321556
