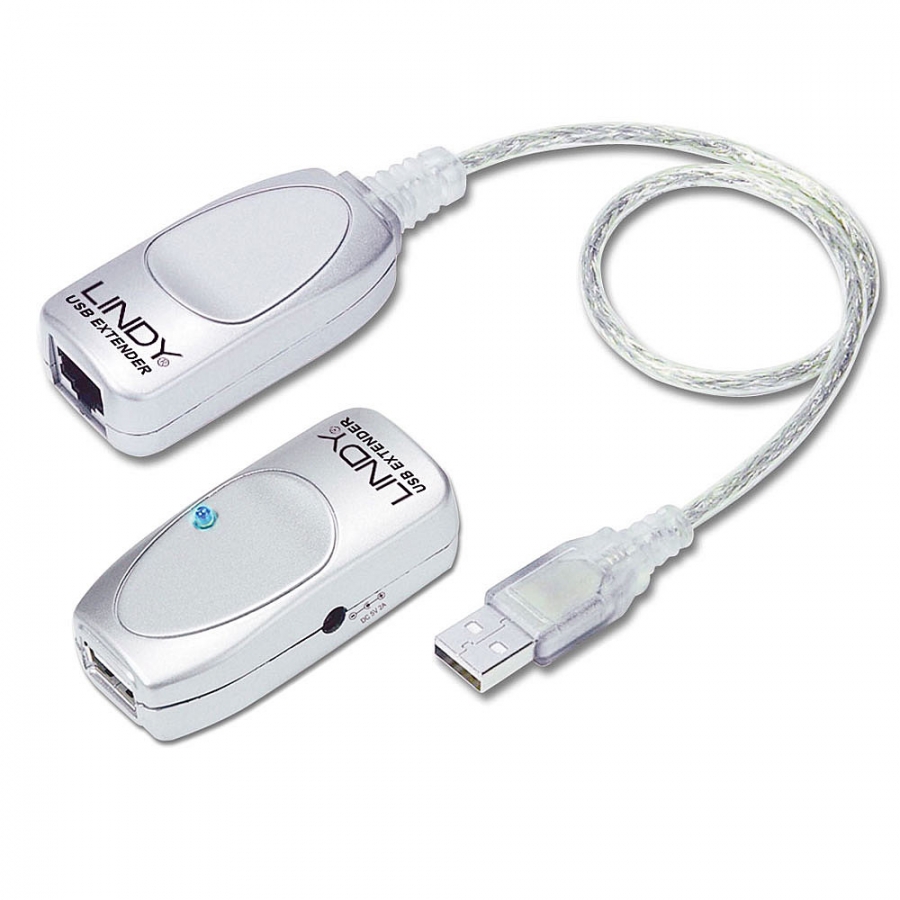

50m USB 1.1 Cat.5 Extender

Specifications

• USB Standard: USB 1.1
• Supported Bandwidth: 12Mbps
• Maximum Distance: 50m (164.04ft)
• Transmission Medium: Cat.5/5e/6 or higher network cable
• Chipset: LAN0101
• Special Features: -

Connectors

• Transmitter Input: USB Type A (Male)
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Output: USB Type A (Female)
• Power: 3.5/1.35mm DC socket

Physical Properties

• Dimensions WxDxH: 30x63x20mm (1.18x2.48x0.79in)
• Housing Material: Plastic
• Net Weight: 0.06kg (0.13lb)
• Operating Temperature: -0° - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: -
• Colour: Grey

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 249x156x27mm (9.8x6.14x1.06in)
• Gross Weight: 0.119kg (0.26lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• Transmitter unit
• Receiver unit
• Lindy Manual

Purchasing information

• No.: 42805
• EAN: 4002888428057
