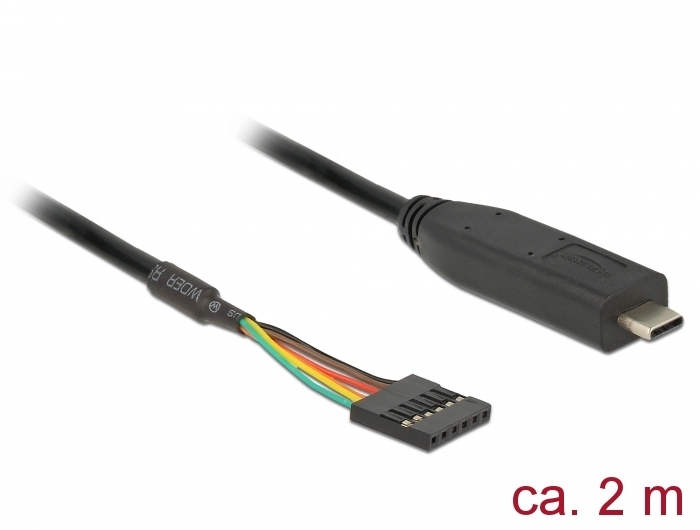

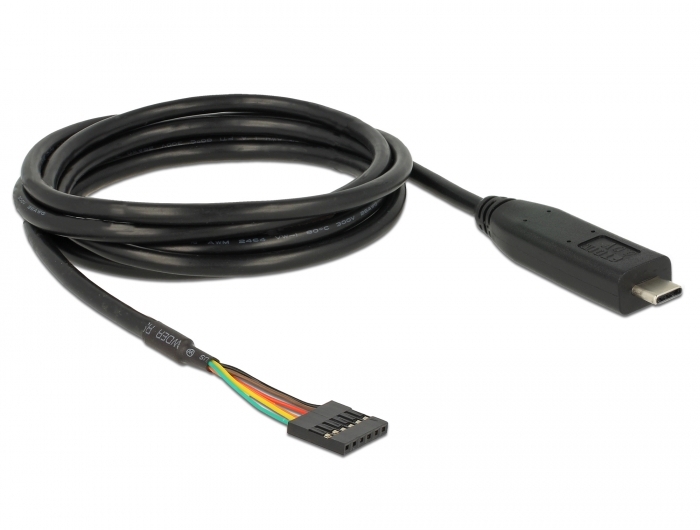

Delock Converter USB Type-C™ 2.0 male to TTL 5 V 6 pin pin header female 2.0 m

Reference 63947

Condition: New

More info

This USB Type-C™ 2.0 to TTL converter by Delock can be connected directly to GPIO (General purpose input/output) connectors or UART (Universal Asynchronous Receiver/Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64/Windows Server 2012 R2/Windows Server 2016,
ex Linux Kernel 2.6, ex Mac OS 10.9
• PC or laptop with a free USB Type-C™ port

Specification:
• Connectors:
1 x USB Type-C™ 2.0 male >
1 x TTL 5 V 6 pin pin header female
• Pitch: 2.54 mm
• Chipset: FTDI FT232RL
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 1 Mbps
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Output voltage: 5 V
• FIFO:
128 Byte - RX
256 Byte - TX
• Cable type: UL AWM 2464 VW-1 Flame Test
• Cable gauge: 26 AWG
• Cable length incl. connectors: ca. 2.0 m
• Operating temperature: -20 °C ~ 80 °C

Package content:
• USB Type-C™ 2.0 TTL cable
• User manual

Data sheet:
http://www.delock.de/produkt/63947/pdf.html?sprache=en
