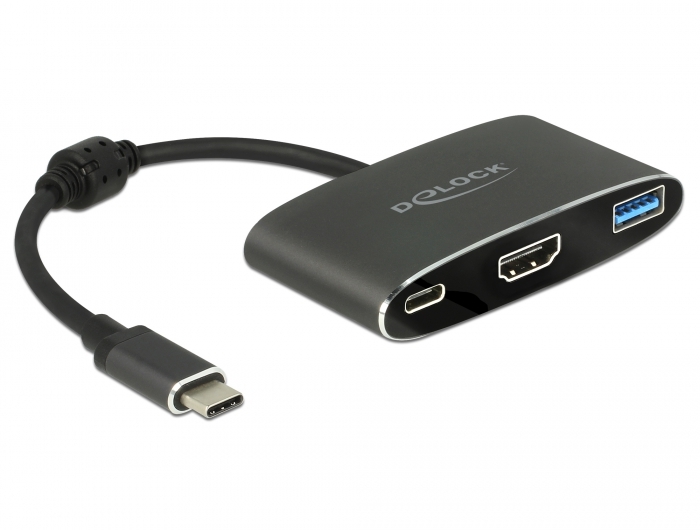

Delock Adapter USB Type-C™ male > HDMI female (DP Alt Mode) 4K 30 Hz + USB Type-A + USB Type-C™ PD

Reference 62991

Condition: New

More info

This adapter by Delock is suitable for the connection of a HDMI monitor to a computer with USB-C™ interface and Displayport alternate mode support. Thus, the adapter can be connected to different laptops like MacBook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface. Additional the adapter has a USB 3.1 Type-A port and a USB-C™ port. The USB-C™ port can be used for power supply of the output device or to transfer data in USB 2.0 speed. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Windows 10 Mobile,
Linux ex Kernel 4.3 / Kernel 4.9, Mac ex OS 10.12.5
• PC or laptop with a free USB Type-C™ port and Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port

Specification:

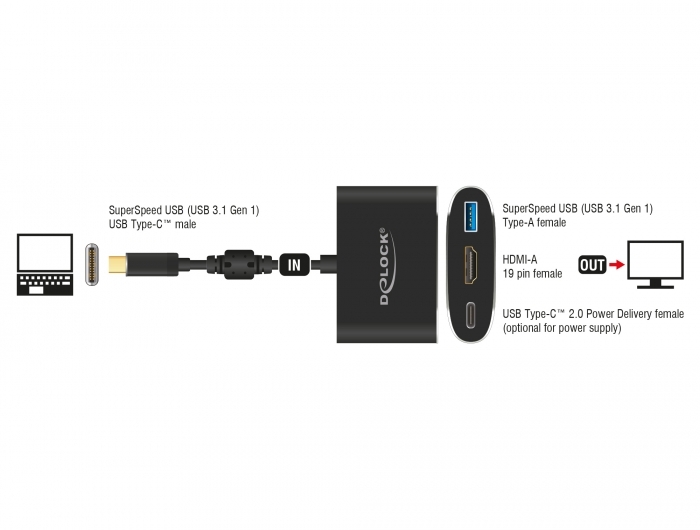

• Connectors:
  1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ male >
  1 x HDMI-A 19 pin female
  1 x SuperSpeed USB (USB 3.1 Gen 1) Type-A female
  1 x USB Type-C™ 2.0 Power Delivery female (optional for power supply)
• Chipset: VIA VL101 + VL813 + Parade PS176
• Displayport 1.2 and High Speed HDMI with Ethernet (HEC) specification
• Resolution up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports 3D displays
• Supports HDCP 1.3
• USB bus powered
• Plug & Play
• Gold-plated connectors
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: grey

Package content:
• USB-C™ to HDMI Adapter + USB Type-A

Data sheet:
http://www.delock.de/produkt/62991/pdf.html?sprache=en
