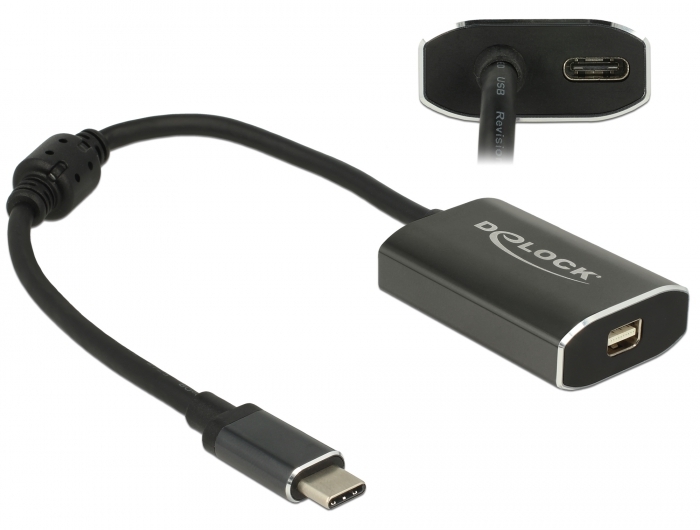

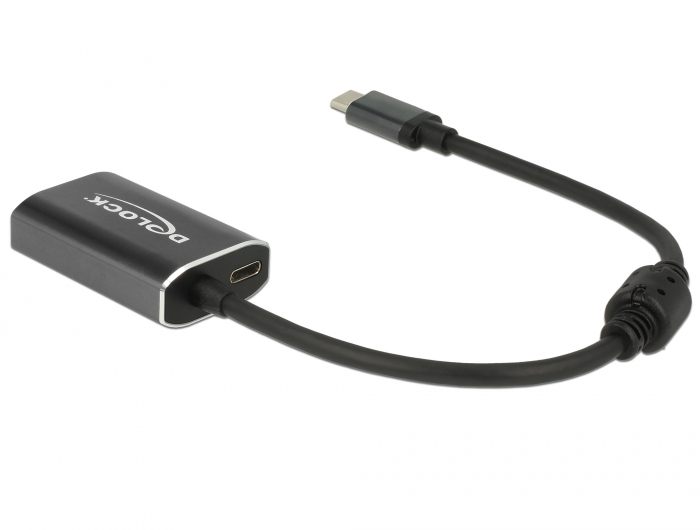

Delock Adapter USB Type-C™ male > mini Displayport female (DP Alt Mode) 4K 60 Hz with PD function

Reference 62990

Condition: New

More info

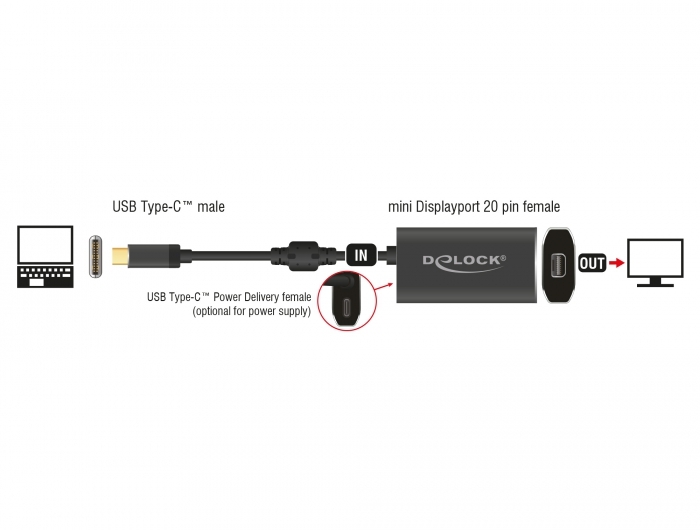

This Delock adapter is suitable for the connection of a Displayport monitor to a computer with USB-C™ interface and Displayport alternate mode support. Thus, the adapter can be connected to different laptops like Macbook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface. The adapter has a USB Type-C™ Power Delivery port. This allows the laptop to be charged while the adapter is in use.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Windows 10 Mobile, Chrome OS,
Linux ex Kernel 4.3, Mac ex OS 10.12
• PC or laptop with a free USB Type-C™ port and Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port

Specification:
• Connectors:
Input:
    1 x USB Type-C™ male

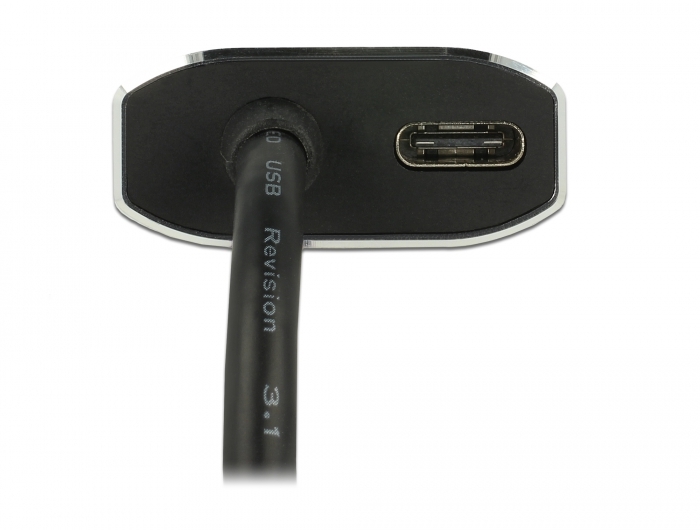

    1 x USB Type-C™ Power Delivery female (optional for power supply)
Output:
    1 x mini Displayport 20 pin female
• Chipset: VIA VL100
• Resolution up to 4096 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
• Transfer of audio and video signals
• Charging power: max. 60 W, 20 V @ 3 A
• USB bus powered
• Plug & Play
• Housing material: aluminium
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: dark grey

Package content:
• USB-C™ to mini Displayport adapter

Data sheet:
http://www.delock.de/produkt/62990/pdf.html?sprache=en
