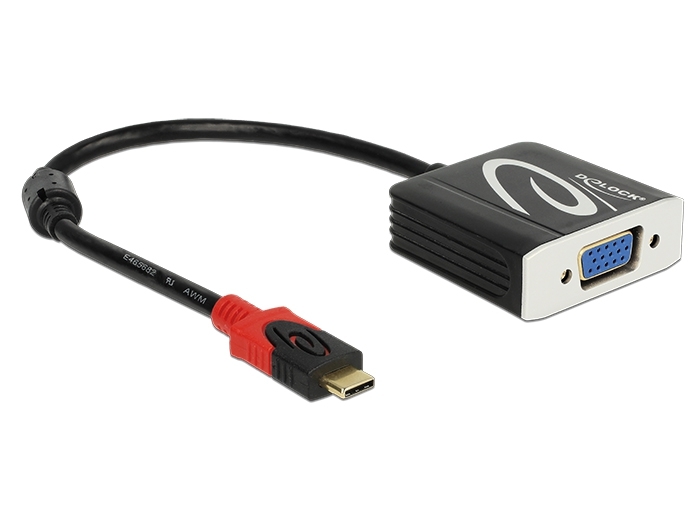

Delock Adapter USB Type-C™ male > VGA female (DP Alt Mode)

Reference 62994

Condition: New

More info

This Delock adapter is suitable for the connection of a VGA monitor to a computer with USB-C™ interface and Displayport alternate mode support. Thus, the adapter can be connected to different laptops like Macbook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Windows 10 Mobile, Chrome OS,
Linux ex Kernel 4.4, Mac ex OS 10.13
• PC or laptop with a free USB Type-C™ port and Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port

Specification:

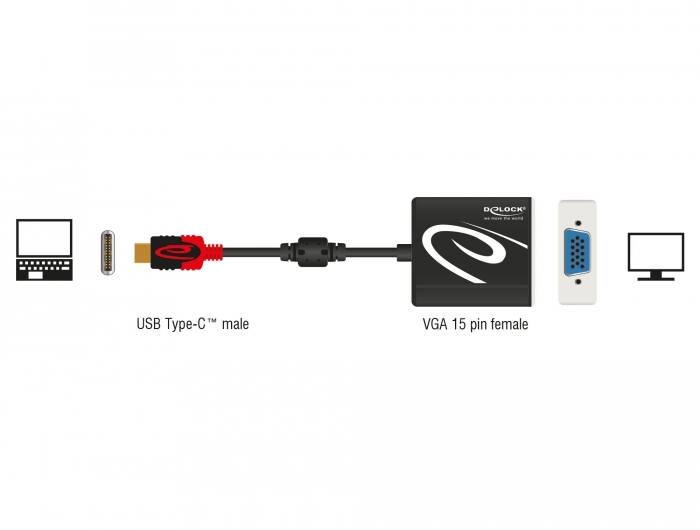

• Connectors:
1 x USB Type-C™ male >
1 x VGA 15 pin female
• Chipset: Realtek RTD2169U
• VGA port with nuts
• Displayport 1.4 specification
• Resolution up to WUXGA 1920 x 1200 @ 60 Hz (depending on the system and the
connected hardware)
• Transfer of analogue video signals
• USB bus powered
• Plug & Play
• Gold-plated connectors
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: black

Package content:
• USB-C™ to VGA adapter

Data sheet:
http://www.delock.de/produkt/62994/pdf.html?sprache=en
