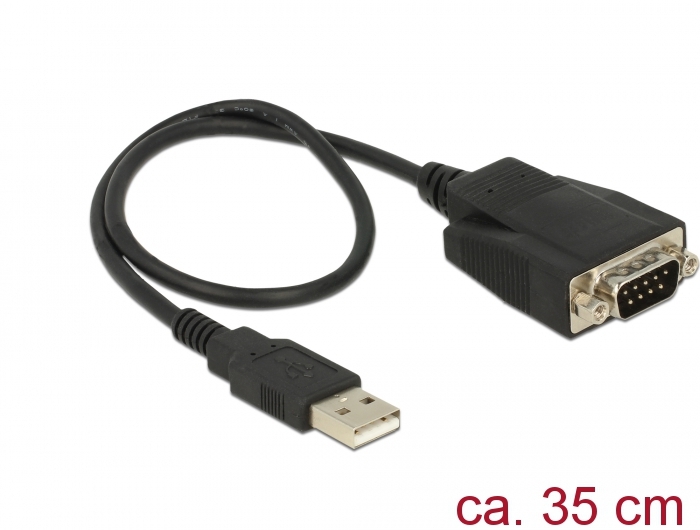

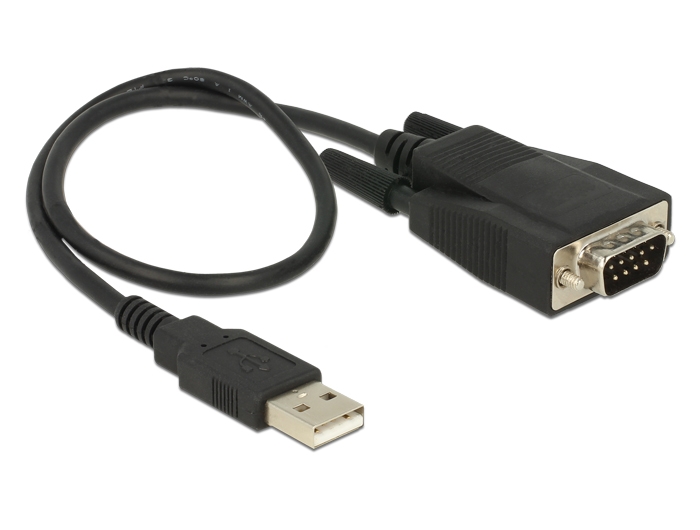

Delock Adapter USB 2.0 Type-A male > 1 x Serial RS-232 DB9 male with screws and nuts ESD protection

Reference 62958

Condition: New

More info

This USB 2.0 to RS-232 adapter by Delock provides a flexible DB9 connection with matching screws and nuts for the operation on serial controllers, printers, measuring instruments, IoT devices, etc. A built-in ESD protection prevents the destruction of the electronic components.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
1 x USB 2.0 Type-A male
1 x Serial RS-232 DB9 male
• Chipset: FTDI FT232RL
• Serial connector with srews or nuts
• Screw type: #4-40 UNC
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 115.2 Kbps
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Parity: even, odd, none, mark, space
• Stop bit: 1, 1.5, 2
• Data bit: 5, 6, 7, 8
• Flow control: none, Xon / Xoff, RTS / CTS
• FIFO: 128 Byte - TX
• FIFO: 256 Byte - RX
• ESD protection:
± 15 KV ESD Human Body Model (HBM)
± 15 KV IEC1000-4-2 Air Gap Discharge
± 8 KV IEC1000-4-2 Contact Discharge
• Current consumption: ca. 150 mA
• Cable length: ca. 35 cm
• Operating temperature: 0 °C ~ 60 °C
• Humidity: 5 ~ 95 %

Package content:
• USB 2.0 to 1 x serial adapter
• 2 x screw
• Driver CD
• User manual
