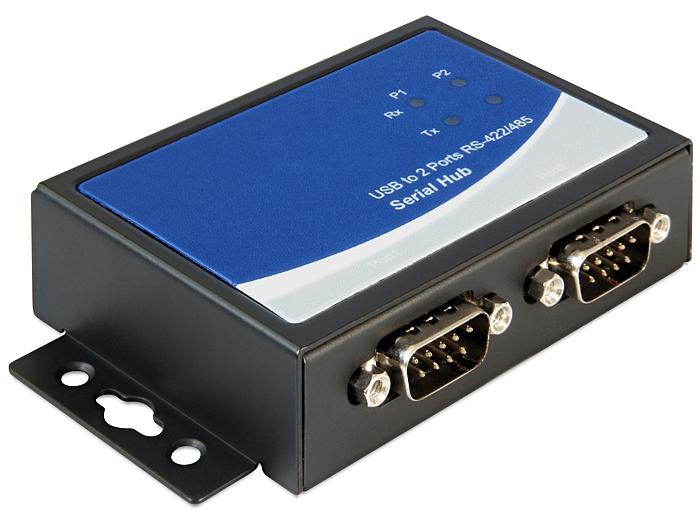

Delock Adapter USB 2.0 to 2 x serial RS-422485

Description:
This USB 2.0 to serial adapter enables you to connect up to two different serial devices to a free USB port.

Specification:
1 x USB 2.0 type B female >
2 x serial RS-422/485 DB9 male
• Chipset: FT2232HL, SP3078EE

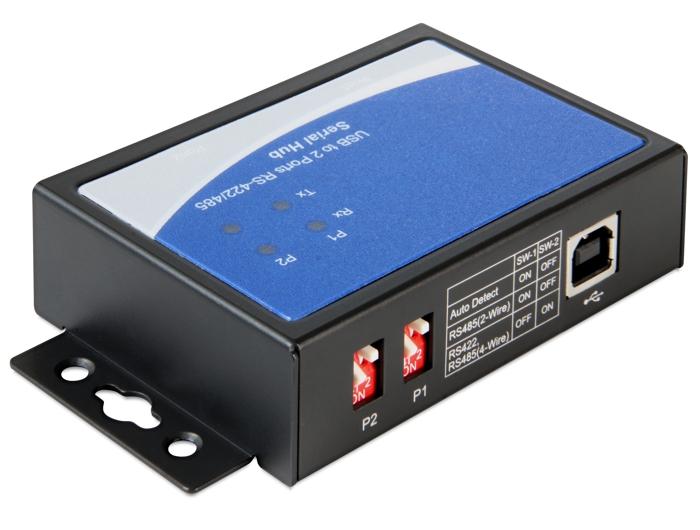

• 2 x DIP switch: RS-422/485 operation setting
• Internal pin header: Jumper switch terminator on / off
• Serial male connector with screw nuts
• Data transfer rate up to 1 Mb/s
• LED for indication of TxD / RxD activity
• Automatical recognition and switching between RS-422 and RS-485
• ±15KV ESD protection on all signal pins
• Wall mounting integrated in the housing
• Power consumption:
operation: ⤠141 mA / 705 mW
standby: ca. 89 mA / 445 mW
• Additional I/O and IRQ are not required
• Dimensions (LxWxH): ca. 107 x 65 x 23 mm

System requirements:
• Windows Vista/Vista-64/7/7-64/8/8-64, Linux Kernel 2.6
• PC or Notebook with a free USB port

Package content:

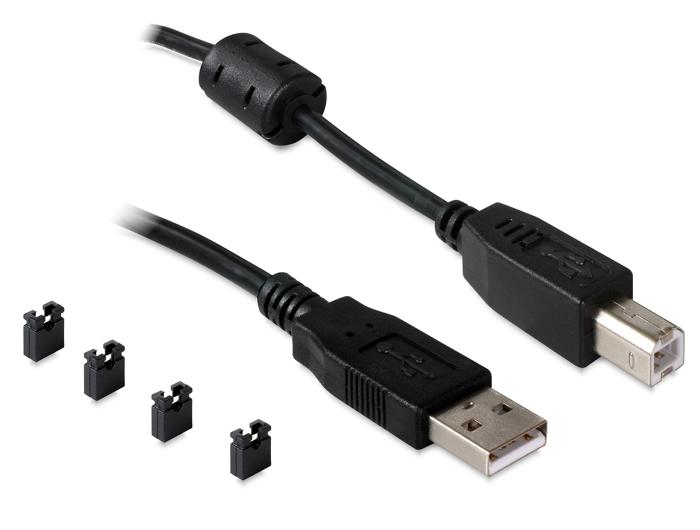

• USB 2.0 to 2 x serial RS-422/485 adapter
• USB 2.0 cable
• 4 jumper
• Driver CD
• User manual
