Delock Active USB 10 Gbps extension cable USB Type-C™ 5 m

Reference 80028

Condition: New

More info

This active USB cable by Delock can be used to extend a USB connection by 5 m. The cable has an additional DC power socket to which an optional power supply can be connected. This ensures optimum data transmission even when used with powerful devices such as a 2.5″ hard drive.

Note
The cable cannot transmit video signals, so it is not suitable to connect a USB Type-C™ monitor.

Specification:
• Connectors:
  1 x USB 10 Gbps USB Type-C™ male
  1 x USB 10 Gbps USB Type-C™ female
  1 x DC jack
• Chipset: Prolific PL2586

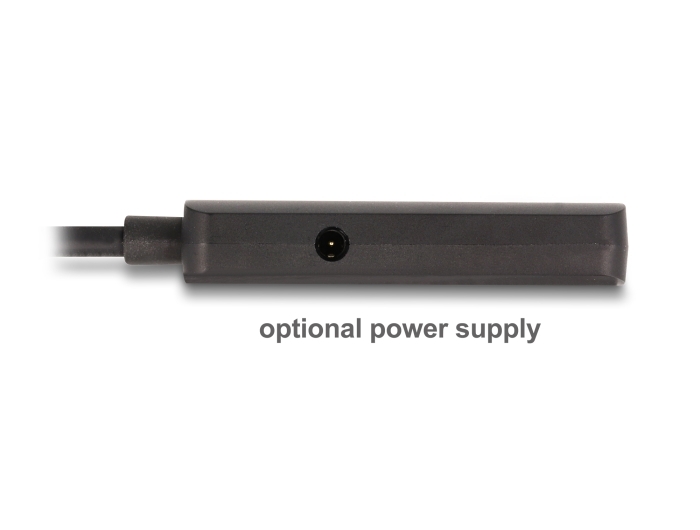

• DC jack for optional power supply
• Cable gauge:
  30 AWG data line
  24 AWG power line
• Cable diameter: ca. 4.8 mm
• Data transfer rate up to 10 Gbps
• Output current:
  1.5 A without power supply
  2 A with power supply
• Output voltage: 5 V
• Colour: black
• Dimensions of housing (LxWxH): ca. 62.1 x 23.1 x 11.5 mm
• Length without connectors: ca. 5 m

Specification of power connector
• Input: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 1.35 mm
  outside: ø ca. 3.5 mm
  length: ca. 9.65 mm

Package content:
• USB extension cable

Data sheet:
http://www.delock.de/produkt/80028/pdf.html?sprache=en
