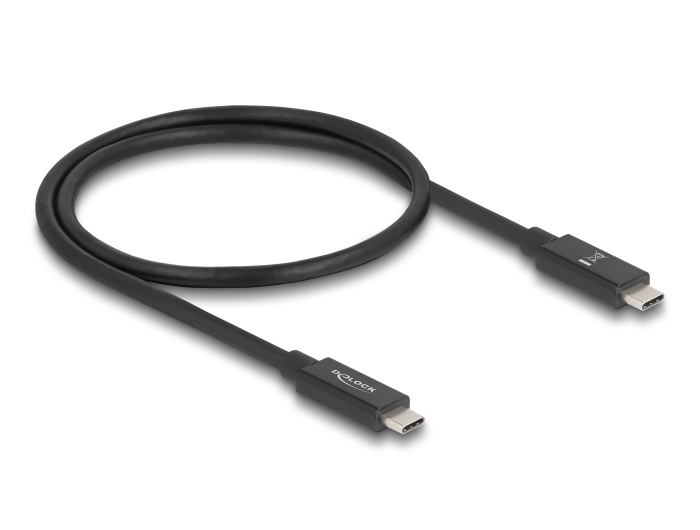

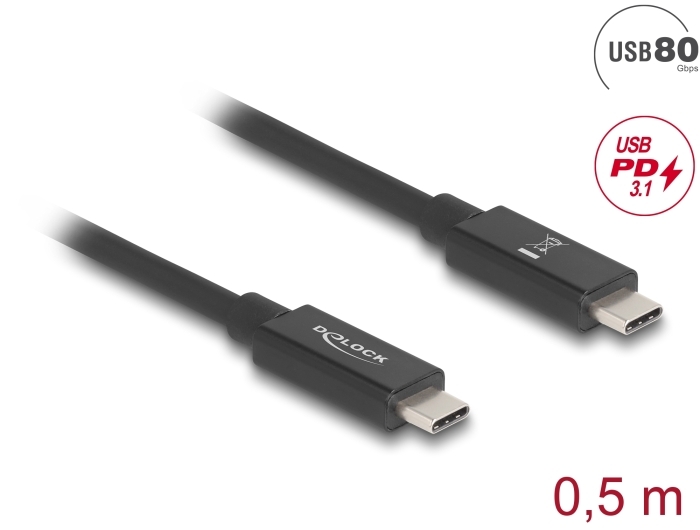

Delock USB 80 Gbps Cable USB Type-C™ male to male 16K 60 Hz PD 3.1 240 W E-Marker coaxial 0.5 m black

Reference 81210

Condition: New

More info

This USB cable by Delock enables the connection of various devices, such as smart phones, monitors, external enclosures and docking stations, via a USB Type-C™, Thunderbolt™ 3 or Thunderbolt™ 4 port of a PC or laptop. The cable supports the transfer of USB as well as DisplayPort and PCI Express data.

USB 80 Gbps
The cable enables data transfer rates up to 80 Gbps when connecting compatible devices. Of course, USB 3.0 or USB 2.0 devices can also be connected.

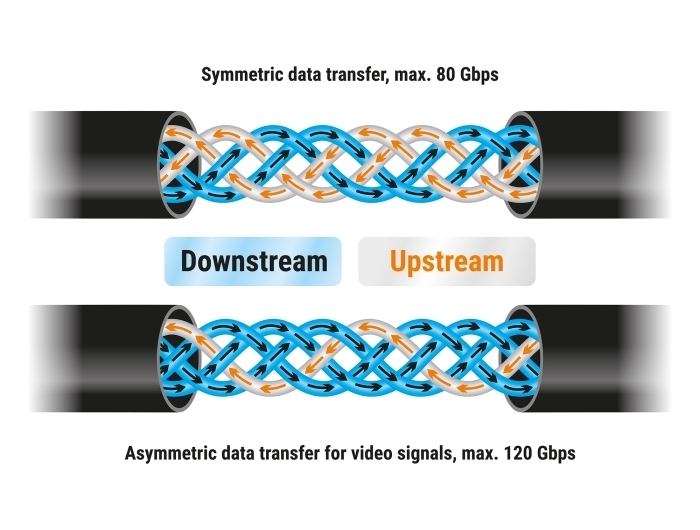

Asymmetric image transfer rate for monitors
The Delock cable supports asymmetric data transfer for video signals with transfer rates of up to 120 Gbps downstream and 40 Gbps upstream. This also enables the connection of DisplayPort monitors with a screen resolution of up to 16K 60 Hz or 8K 120 Hz.

Support for the Extended Power Range resp. USB Power Delivery 3.1 standard means that connected devices can be supplied with power, up to 240 W (48 V / 5 A) is possible.

Specification:
• Connectors: 2 x USB 80 Gbps USB Type-C™ male
• Downwards compatible to USB 3.2, USB 2.0, Thunderbolt™ 4 and Thunderbolt™ 3
• Chipset: E-Marker
• Cable type: coaxial
• Contacts gold-plated
• Cable jacket material: TPE
• Cable diameter: ca. 4.7 mm
• Data transfer rate up to 80 Gbps
• Supports asymmetric image transfer rate:
  Downstream 120 Gbps
  Upstream 40 Gbps
• Display resolution up to:
  15360 x 8640 @ 60 Hz
  7680 x 4320 @ 120 Hz
  (depending on the system and the connected hardware)
• Supports HDR10
• Supports HDCP 2.2 and 2.3
• Supports PCI Express 4.0 protocol
• Supports DisplayPort 2.1 protocol
• Dual channel, bi-directional data transfer
• Supports Extended Power Range (EPR)
• USB Power Delivery (USB PD 3.1) support up to 240 watt (48 V / 5 A)
• Colour: black
• Length incl. connectors: ca. 0.5 m

Package content:
• USB 80 Gbps cable

Data sheet:
http://www.delock.de/produkt/81210/pdf.html?sprache=en
