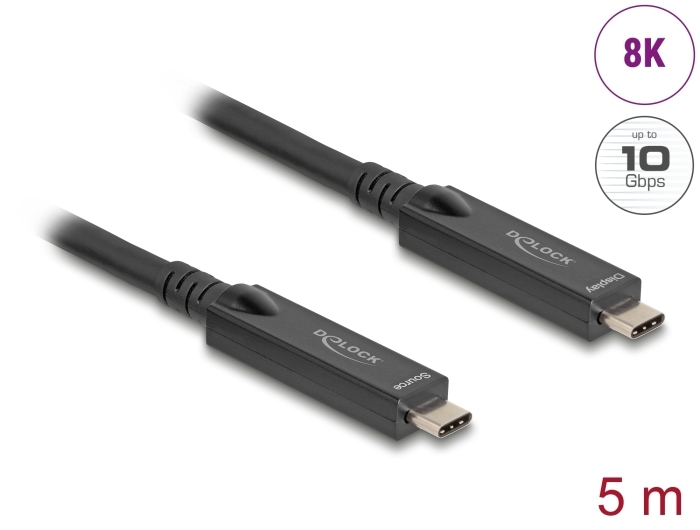

Delock Active Optical USB-C™ 8K Video + Data + PD Cable 5 m

Reference 84255

Condition: New

More info

This USB cable by Delock enables the connection between a device with a USB Type-C™ connector and a PC or a laptop equipped with a free USB Type-C™ port.

Active Optical Cable
This active optical cable uses optical fiber to transmit high-speed signals. Compared to traditional copper cable, it is softer, thinner, lighter, and can transmit signals over longer distances without loss.

DisplayPort 2.1 with 4 lanes
The cable is suitable for connecting a USB-C™ monitor with resolution up to 8K Ultra HD (7680 x 4320 @ 60 Hz) to a computer with USB-C™ interface and DisplayPort Alternate Mode support.
When connected to a docking station with simultaneous operation of DisplayPort and USB at 10 Gbps, a resolution of 3840 x 2160 @ 120 Hz is possible.

The active optical cable enables data transfer rates of up to 10 Gbps when connecting USB 10 Gbps compatible devices. Of course, USB 2.0 devices can also be connected.

USB Power Delivery support up to 60 watt
Supporting the USB Power Delivery standard, connected devices can be powered up to 60 W (20 V / 3 A).

Note
This cable is only compatible with DisplayPort (DP alt mode) devices and it will not work with Thunderbolt™ devices.

System requirements:
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
• Monitor with a free USB Type-C™ (DP Alt Mode) interface

Specification:
• Connectors:
  2 x USB 10 Gbps USB Type-C™ male
• Active optical cable: fiber / copper hybrid cable
• Supports 2 / 4 lanes DisplayPort 1.4
• Supports Display Stream Compression 1.2 (DSC)
• Supports DP Alt Mode
• Transmission of audio and video signals
• Maximum resolution (depending on the system and the connected hardware):
  DisplayPort 2.1 with DSC: up to 7680 x 4320 @ 60 Hz (4 Lanes)
  DisplayPort 1.4 with DSC: up to 3840 x 2160 @ 120 Hz (2 Lanes)
• Supports HDR (High Dynamic Range)
• Supports HDCP 1.4 and 2.2
• Fixed signal direction for video (Source / Display)
• Non-directional for data
• Data transfer rate up to 10 Gbps
• Downwards compatible to USB 2.0
• Output current: up to 3 A
• Cable jacket material: TPE
• Cable diameter: ca. 6.5 mm
• Colour: black
• Length incl. connectors: ca. 5 m

Package content:
• USB 10 Gbps cable

Data sheet:
http://www.delock.de/produkt/84255/pdf.html?sprache=en
