Delock USB 10 Gbps Flat Cable Type-E Key A 20 pin male to USB Type-C™ female panel-mount 75 cm

Reference 85760

Condition: New

More info

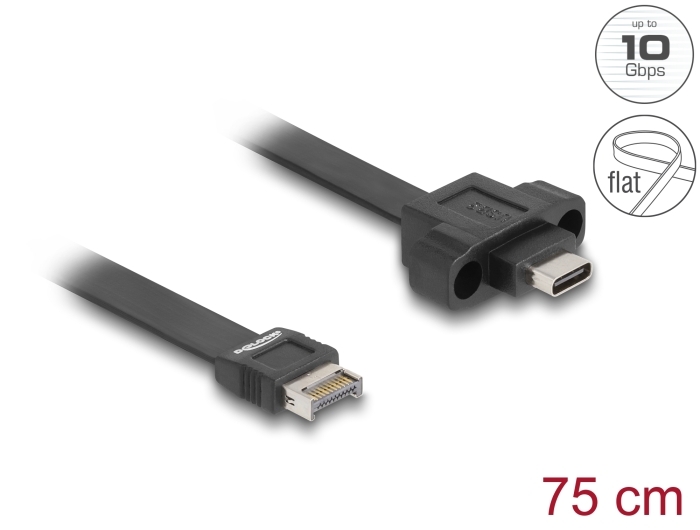

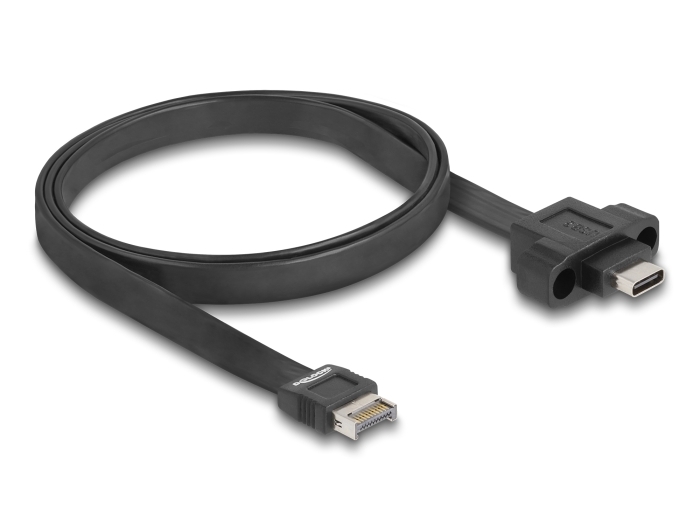

This cable by Delock can be connected to the internal USB 10 Gbps USB Type-E Key A socket of a motherboard or a PCI Express card and can be used to extend a USB connection. The USB Type-C™ connector can be attached with two existing screws, e.g. on a slot bracket or a chassis with the corresponding recess. In this way, it is possible to install a USB connector in an easily accessible position.

Specification:
• Connectors:
1 x USB 10 Gbps type-E Key A 20 pin male
1 x USB 10 Gbps USB Type-C™ female
• Two mounting holes for screws, distance ca. 22 mm
• Output: 5.0 V / 1.5 A
• Cable gauge: 30 AWG
• Cable diameter: ca. 1.2 x 11.2 mm
• Length incl. connectors: ca. 75 cm

Package content:
• USB cable

Data sheet:
http://www.tragant.de/produkt/85760/pdf.html?sprache=en
