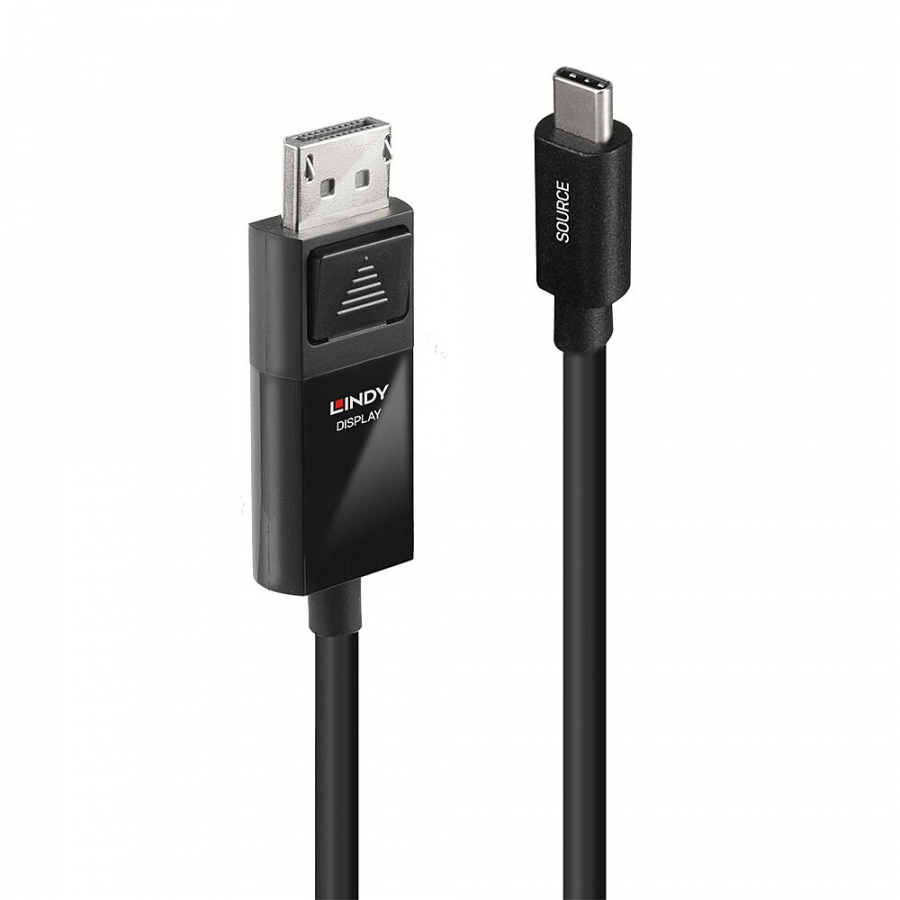

Lindy 1m USB Type C to DP 8K60 Adapter Cable

Connectors

• Connector A: USB Type C Male
• Connector B: DisplayPort Male
• Housing Material: USB C: ABS shell, DP: ABS shell
• Connector Plating: Nickel plating
• Pin Construction: Phosphor Copper
• Pin Plating: Gold plating
• Dimensions (approx.) WxDxH:
  • USB: 24.3x12.52x7mm (0.96x0.49x0.28in)
  • DP: 47.74x22.2x10mm (1.88x0.87x0.39in)

Cable construction

• Length: 1m (3.28ft)
• Standard: DP 1.4
• Colour: Black
• Type: Round
• Jacket Diameter: 4.2mm (0.17in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 34AWG
• Shielding: Copper Braid 85%

Specifications

• Chipset: VL100
• Supported Bandwidth: 32.4Gbps
• Power Delivery: -
• Maximum Resolution: 7680x4320@60Hz and 3840x2160@144Hz
• Nominal Attenuation: 0.1MHz-6MHz<12DB
• Minimum Bend Radius: 25.5mm (1in)
• Operating Temperature: -20°C - 40°C (-4°F - 104°F)
• Storage Temperature: -40 °C - 80°C (-40°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, California Proposition 65

Purchasing information

• No.: 43341
• EAN: 4002888433419

This product is also available in other lengths

• 43342 - 2m (6.56ft)
• 43343 - 3m (9.84ft)
