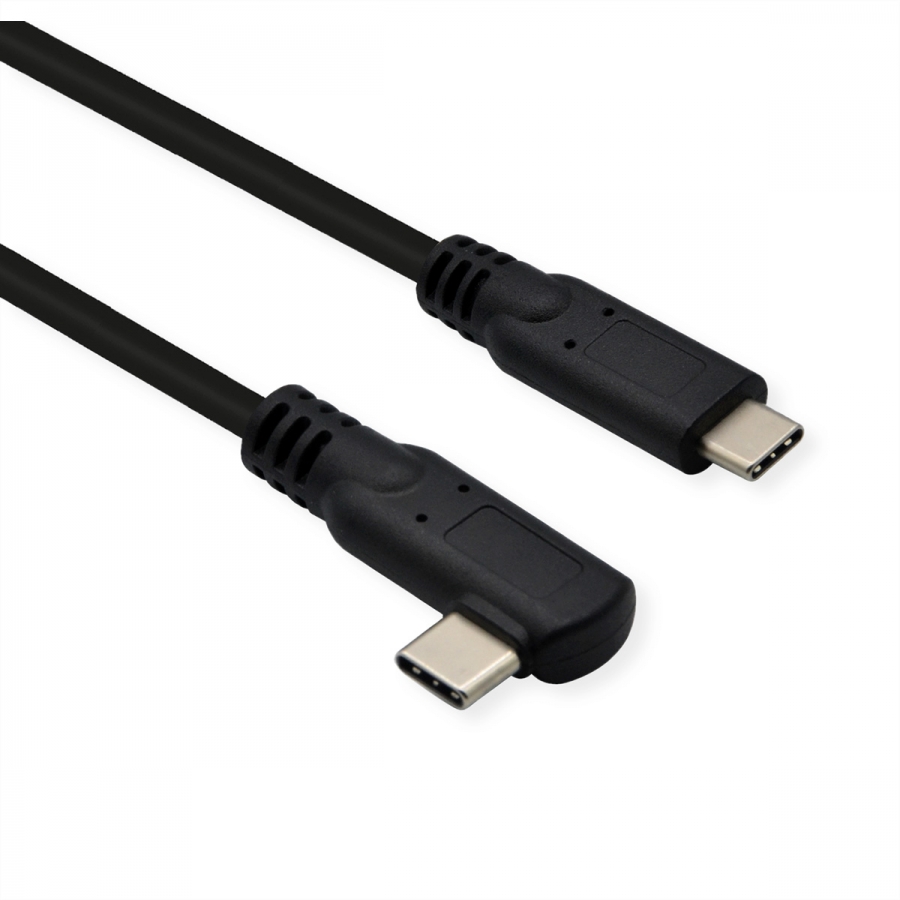

ROLINE USB 3.2 Gen 2x2 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/M, 1

ROLINE

11.02.9075

New

USB 3.2 Gen 2x2 cable with up to 20 Gbit/s speed mode that uses a more efficient data encoding and will deliver more than twice the effective data through-put performance of existing, fully backward compatible USB connectors and cables.

  • High quality USB 3.1 / USB 3.2 Gen 2x2 cable with improved shielding
  • With the reversible Type C connectors at both ends
  • 1x Type C male connector (L-Shape, 90° angled)
  • Gold-plated contacts for low wear at high plugging cycles
  • Suitable for data transfer rates of up to 20 Gbit/s
  • Supports USB Power Delivery to 20V / 5A

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).



ManufacturerROLINE
Product groupCable
Product typeUSB 3.2 Cable
Colourblack
Length1 m
Transfer qualityUSB 3.2 Gen 2x2 SuperSpeed 20 Gbit/s
Connection portsUSB Type C (USB-C) Male / USB Type C (USB-C) Male
Side 1 Connector TypeUSB Type C (USB-C)
Side 1 Connector GenderMale
Side 2 Connector TypeUSB Type C (USB-C)
Side 2 Connector GenderMale
Area of applicationExternal
Cable shieldingScreened
Hand locking screws
Weight38 g
Height of packaging (single piece)20 mm
Width of packaging (single piece)50 mm
Depth of packaging (single piece)50 mm
Package weight (single piece)0.02 kg
Current catalog editionC23-03.13

USB 3.0 /3.2 / Type-C / USB4™
