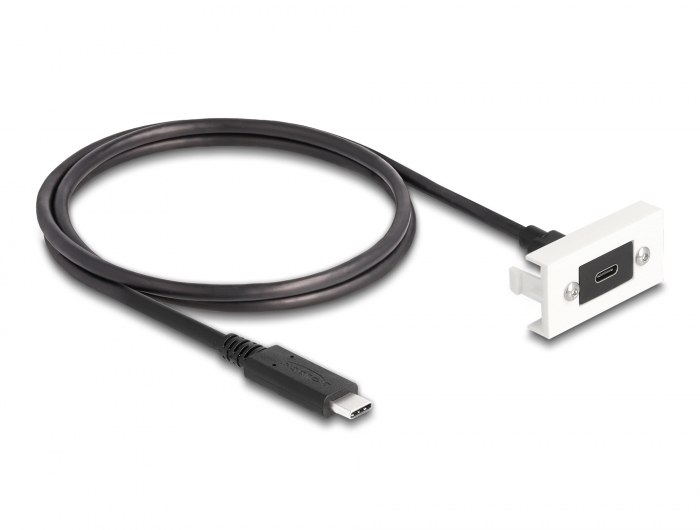

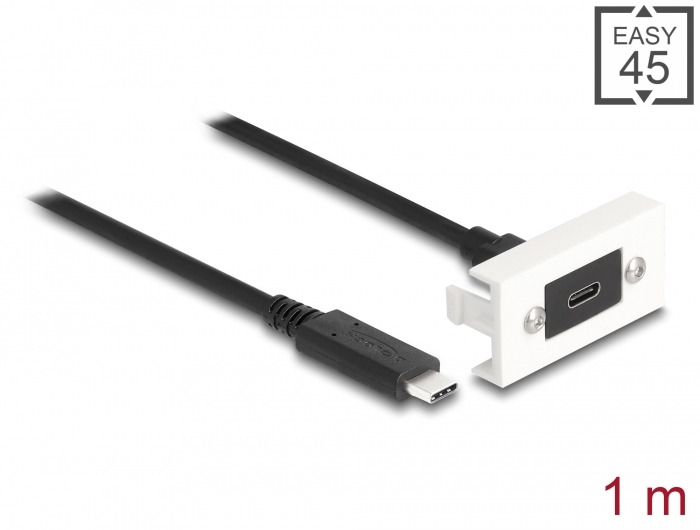

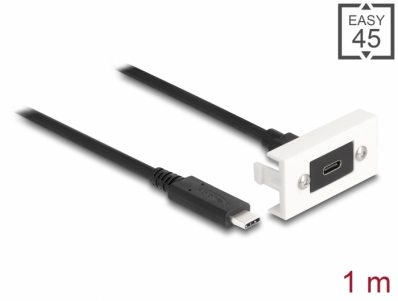

Delock Easy 45 Module SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female to USB Type-C™ male with pigtail, 22,5 x 45 mm

Reference 81386

Condition: New

More info

This Easy 45 module by Delock is designed to provide a USB Type-C™ female port. The simple snap-in mechanism ensures that the cover is firmly in place and can be easily and toolless changed if necessary.

Easy 45 connects
Easy 45 is a variable, modular system that allows components such as sockets, HDMI or USB connections to be added according to your needs. The Easy 45 modules are standardised and can be mounted in various module holder or cable ducts. Easy 45 builds the interface between electrical, network and system installation and many peripheral devices such as TV, monitors, printers, laptops and much more.

System requirements:
• A free module port Delock Easy 45

Specification:
• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ male
• Data transfer rate up to SuperSpeed USB 10 Gbps
• Cable gauge:
  32 AWG data line
  24 AWG power line
• Cable length: ca. 1 m
• Material: PC plastic
• Suitable for module holder Delock Easy 45
• Suitable for 45 mm cable duct with minimum depth 45 mm
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): ca. 22.5 x 45.0 x 38.5 mm
• Colour: white

Package content:
• Easy 45 module

Data sheet:
http://www.delock.de/produkt/81386/pdf.html?sprache=en
