Delock Easy 45 DisplayPort 8K 30 Hz Module with pigtail, 22.5 x 45 mm

DELOCK

81387

New

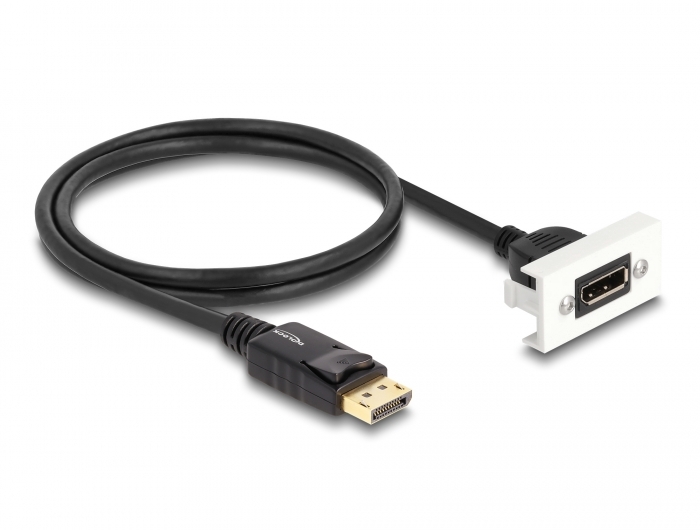

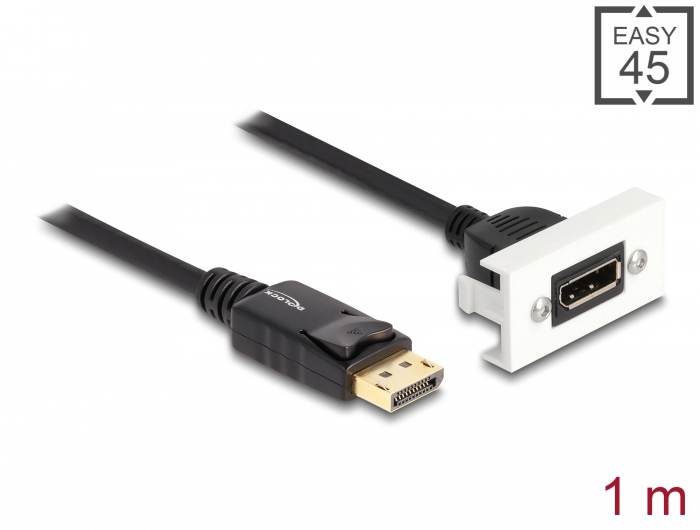

This Easy 45 module by Delock is designed to provide a DisplayPort female port. The simple snap-in mechanism ensures that the cover is firmly in place and can be easily and toolless changed if necessary.

Easy 45 connects
Easy 45 is a variable, modular system that allows components such as sockets, HDMI or USB connections to be added according to your needs. The Easy 45 modules are standardised and can be mounted in various module holder or cable ducts. Easy 45 builds the interface between electrical, network and system installation and many peripheral devices such as TV, monitors, printers, laptops and much more.
System requirements:
• A free module port Delock Easy 45
Specification:
• Connectors:
  1 x DisplayPort female
  1 x DisplayPort male
• Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected
  hardware)
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Material: PC plastic
• Cable length: ca. 1 m
• Suitable for module holder Delock Easy 45
• Suitable for 45 mm cable duct with minimum depth 45 mm
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): ca. 22.5 x 45.0 x 38.5 mm
• Colour: white
Package content:
• Easy 45 module
Data sheet:
http://www.delock.de/produkt/81387/pdf.html?sprache=en
