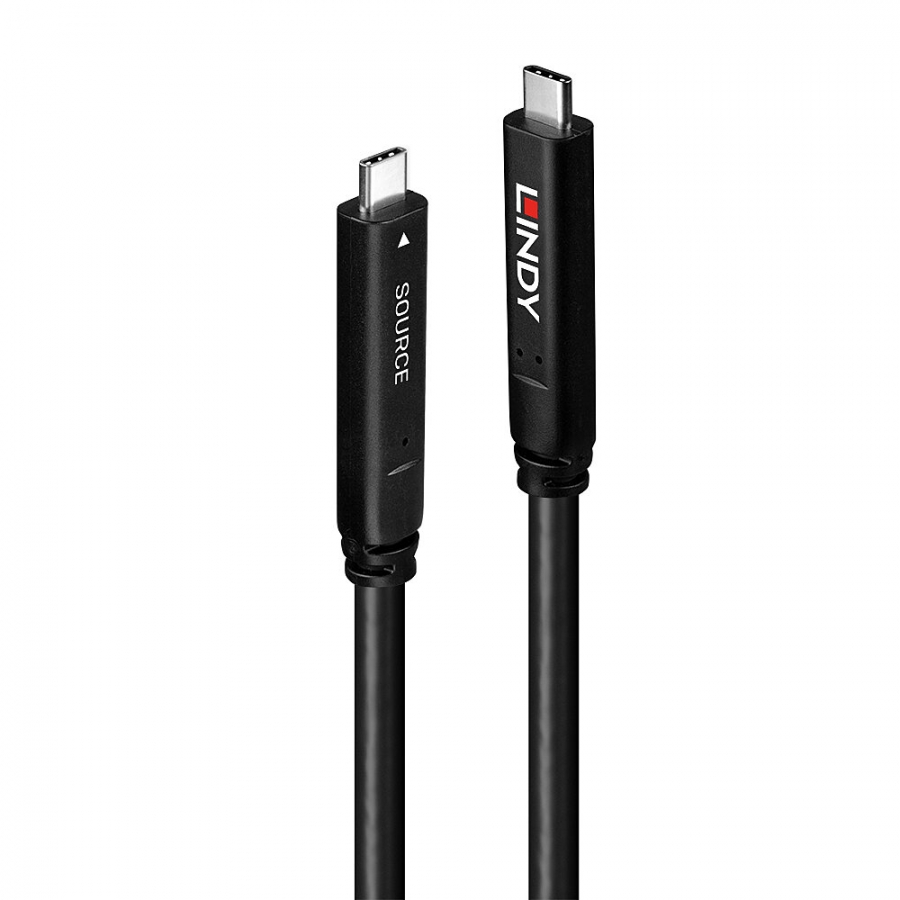

Lindy 10m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable

Connectors

• Connector A: USB Type C Male
• Connector B: USB Type C Male
• Power: PD 3A/20V (60W)
• Housing Material: Plastic
• Connector Plating: Stainless Steel + Solder Nickel 50u" min.
• Pin Construction: Copper Alloy + Mating area Au
• Pin Plating: Mating area: 30u" Au min.
• Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)

Cable Construction

• Length: 10m (32.81t)
• Standard: USB 3.2 / 3.1 Gen 1
• Colour: Black
• Type: Round
• Jacket Diameter: 6.5mm (0.26in)
• Jacket Material: PVC
• Conductor Material: -
• Conductor Gauge: 21AWG
• Shielding: SUS304

Specifications

• Supported Bandwidth: 5Gbps
• Maximum Resolution: 4K 3840x2160@30Hz
• Nominal Attenuation: ≤10dB/km@850nm,≤8dB/km@1300nm
• Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
• Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
• Operating Temperature: -10°C to 70°C (14°F - 158°F)
• Storage Temperature: -40°C to 85°C (-40°F - 185°F)
• Transmission Medium: Optical Fiber 50/125 Multimode Fiber
• Transmission Technology: 850nm Laser Optical

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
• Net Weight: 0.76kg (1.68lb)
• Gross Weight: 0.9kg (1.98lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, CP65

Package Contents

• 10m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable
• Lindy manual

Purchasing Information

• No.: 43333
• EAN: 4002888433334
