Delock Cable USB 3.0 Type-A male > USB 3.0 Type-A female panel-mount 25 cm

Reference 86994

Condition: New

More info

This cable by Delock can be used to extend a USB connection and to connect various devices. The female ports can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a USB connector in an easily accessible position.

System requirements:
• A free USB port

Specification:
• Connectors:
1 x USB 3.0 Type-A male
1 x USB 3.0 Type-A female with nuts for installation
• Screw type: #4-40 UNC

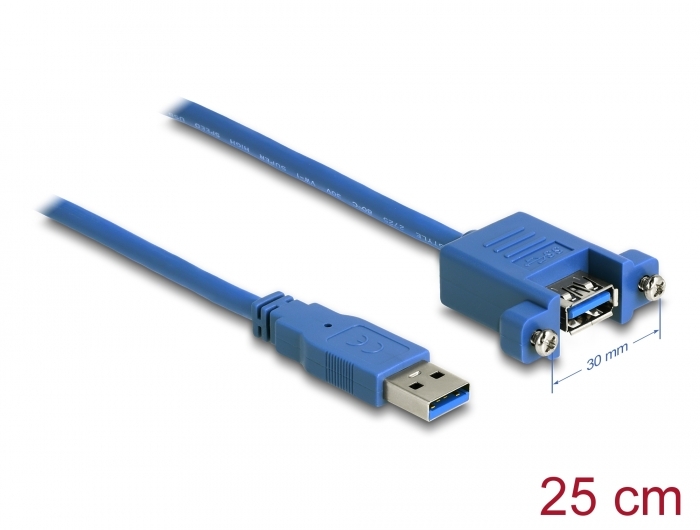

• Mounting hole Type-A ca. 15 x 8 mm, screw hole pitch ca. 30 mm
• Data transfer rate up to 5 Gbps
• Cable gauge:
30 AWG data line
24 AWG power line
• Cable diameter: ca. 5 mm
• Colour: blue
• Length incl. connectors: ca. 25 cm

Package content:
• USB panel-mount cable
• 2 screws

Data sheet:
http://www.delock.de/produkt/86994/pdf.html?sprache=en
