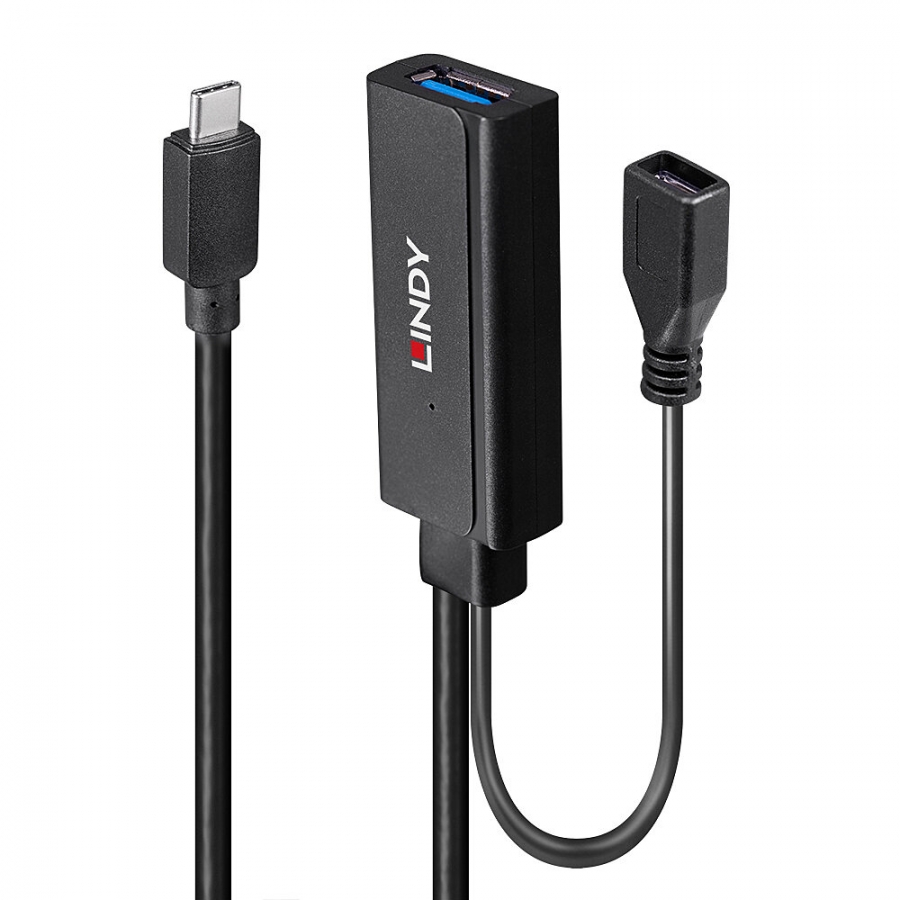

Lindy 5m USB 3.2 Gen 1 C/A Active Extension

Connectors

• Connector A: USB Type C Male
• Connector B: USB Type A Female
• Power: USB Micro-B female connector
• Housing Material: ABS
• Connector Plating: Nickel plated shell
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
  • USB C Male: 12.66x22.4x8mm (0.5x0.88x0.31in)
  • USB A Female (housing): 23.3x56.5x12.55mm (0.92x2.22x0.49in)

Cable Construction

• Length:  5m (16.4ft)
• Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG+28AWG+22AWG
• Shielding: 85% AL - MG

Specifications

• Supported Bandwidth: 5Gbps
• Nominal Attenuation: -
• Minimum Bend Radius: 36mm (1.42in)
• Maximum Tensile Load: -
• Operating Temperature: 0°C to 40°C (32°F - 104°F)
• Storage Temperature: -10°C to 60°C (14°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 3.2 / 3.1 Gen 1 / USB 3.0

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 236x255mm (9.29x10.04in)
• Net Weight: 0.215kg (0.47lb)
• Gross Weight: 0.24kg (0.53lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, CP65

Package Contents

• USB 3.2 C/A Active Extension 5m
• Lindy manual

Purchasing Information

• No.: 43344
• EAN: 4002888433440

This product is also available in other lengths

• 43352 - 3m (9.84ft)
