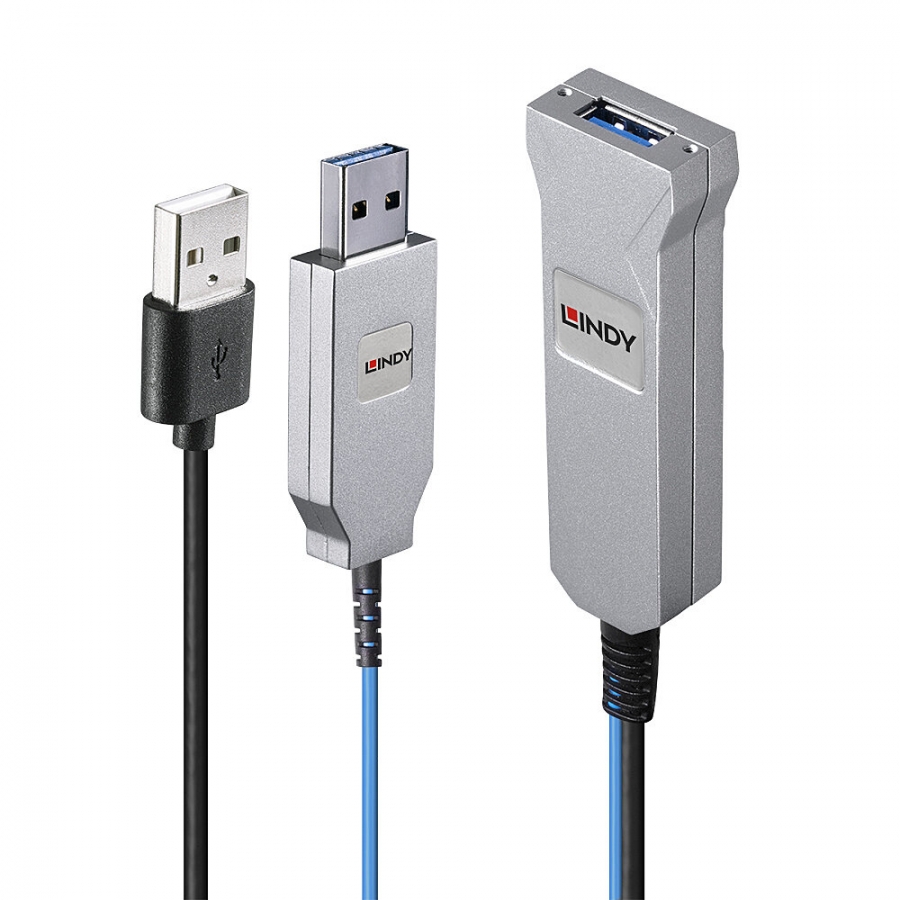

Lindy 100m Fibre Optic USB 3.0 Cable

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type A Female
• Power: USB Type A Male
• Housing Material: Zinc Alloy
• Connector Plating: Nickel
• Pin Construction: Copper Alloy
• Pin Plating: Nickel + Gold
• Dimensions (approx.) WxDxH:
  • USB A Female: 82x26x14.5mm (3.23x1.02x0.57in)
  • USB A Male: 41.6x19.2x8mm (1.64x0.76x0.31in)

Cable Construction

• Length: 100m (328.08ft)
• Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
• Colour: Blue
• Type: Round
• Jacket Diameter: 3mm (0.12in)
• Jacket Material: TPU
• Conductor Material: -
• Conductor Gauge: -
• Shielding: -

Specifications

• Supported Bandwidth: 5Gbps
• Nominal Attenuation: 4dBm/km
• Minimum Bend Radius: 30mm (1.18in)
• Maximum Tensile Load: 0.3GN/m²
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Transmission Medium: Optical Fiber 62.5/125/250 Multimode Fiber
• Transmission Technology: 850nm Laser Optical

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
• Net Weight: 0.8kg (1.76lb)
• Gross Weight: 1kg (2.2lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, CP65

Purchasing Information

• 100m Fibre Optic USB 3.0 Cable with USB Type A cable for power (0.6m)
• Lindy manual

Package Contents

• No. 43346
• EAN: 4002888433464

This product is also available in other lengths

• 43345 - 30m (98.42ft)
