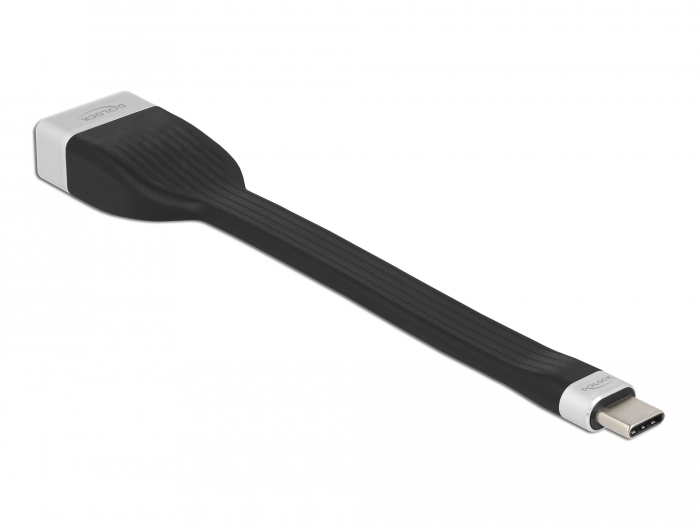

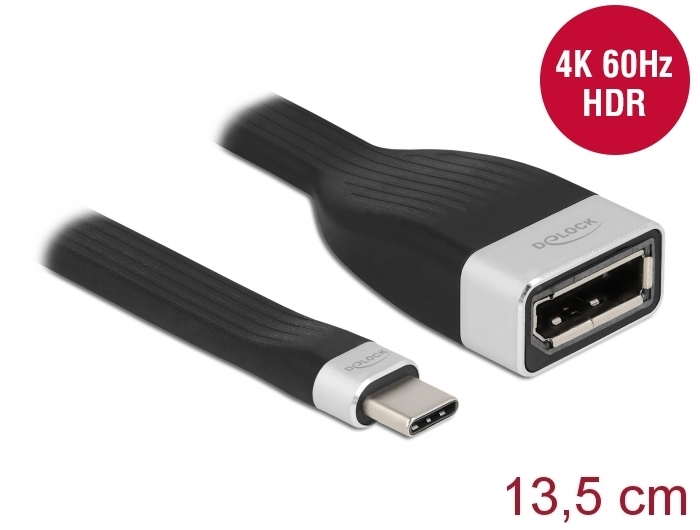

Delock FPC Flat Ribbon Cable USB Type-C™ to DisplayPort (DP Alt Mode) 4K 60 Hz 13.5 cm

Reference 86731

Condition: New

More info

This cable by Delock enables the connection of a DisplayPort monitor to a PC or laptop with USB-C™ or Thunderbolt™ 3 port, such as a MacBook or a Chromebook. The interface has to support the DisplayPort Alternate Mode.

Ultra flexible cable
The cable is characterized by its special construction. Instead of normal copper wires there is a flexible circuit board inside the cable, which is also called FPC (Flexible Printed Circuit). This makes the cable extremely flexible and yet robust.

System requirements:
• Chrome OS 83.0 or above
• Linux Kernel 4.3 or above
• Mac OS 10.15.6 or above
• Windows 10/10-64
• iPad Pro (2018)
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
or
• PC or laptop with a free Thunderbolt™ 3 port

Specification:
• Connectors:
  1 x USB Type-C™ male >
  1 x DisplayPort female
• Chipset: Chrontel CH7213C
• DisplayPort 1.2 specification
• FPC (Flexible Printed Circuit) flat ribbon cable
• Cable thickness: ca. 3 mm
• Resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• USB bus powered
• Plug & Play
• Colour: silver / black
• Length incl. connectors: ca. 13.5 cm

Package content:
• USB-C™ to DisplayPort cable

Data sheet:
http://www.delock.de/produkt/86731/pdf.html?sprache=en
