Delock FPC Flat Ribbon Cable USB Type-C™ to Gigabit LAN 10/100/1000 Mbps 15 cm

Reference 86936

Condition: New

More info

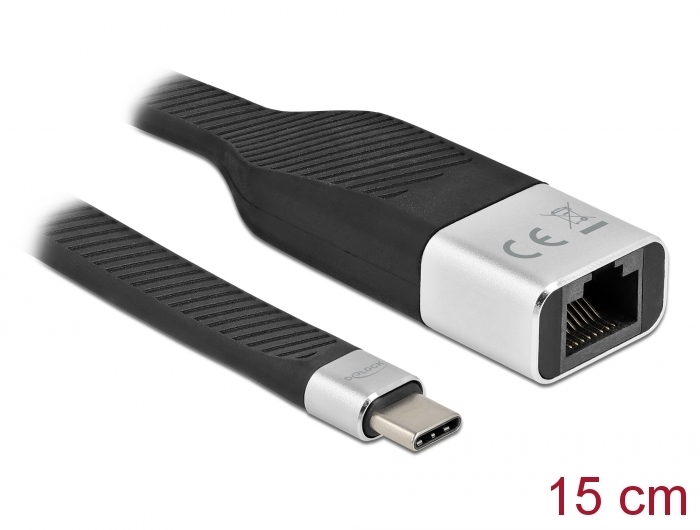

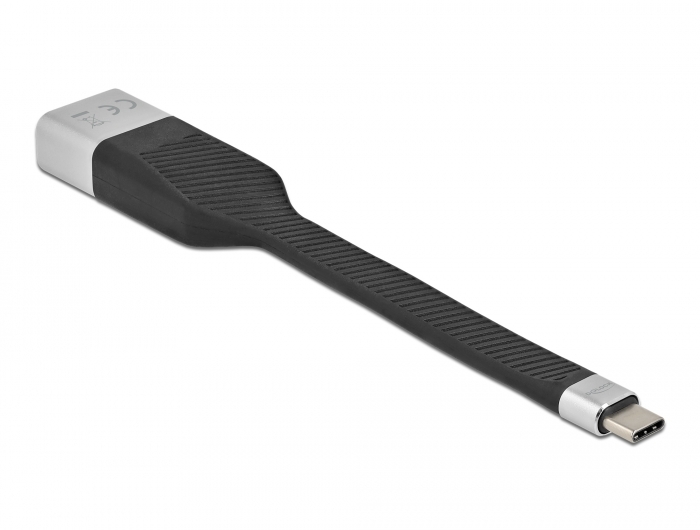

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.

Ultra flexible cable
The cable is characterized by its special construction. Instead of normal copper wires there is a flexible circuit board inside the cable, which is also called FPC (Flexible Printed Circuit). This makes the cable extremely flexible and yet robust.

System requirements:
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Windows 10/10-64
• PC or laptop with a free USB Type-C™ port
or
• PC or laptop with a free Thunderbolt™ 3 port

Specification:
• Connectors:
  1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male >
  1 x Gigabit LAN RJ45 jack
• Chipset: Realtek RTL8153
• FPC (Flexible Printed Circuit) flat ribbon cable
• Cable thickness: ca. 3 mm
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Compatible with:
  IEEE 802.3: 10BASE-T
  IEEE 802.3u: 100BASE-TX
  IEEE 802.3ab: 1000BASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation
  with back-pressure
• Supports 9k Jumbo Frames
• Downwards compatible to USB 2.0
• USB bus powered
• Colour: silver / black
• Length incl. connectors: ca. 15 cm

Package content:
• USB Type-C™ Gigabit LAN adapter

Data sheet:
http://www.delock.de/produkt/86936/pdf.html?sprache=en
