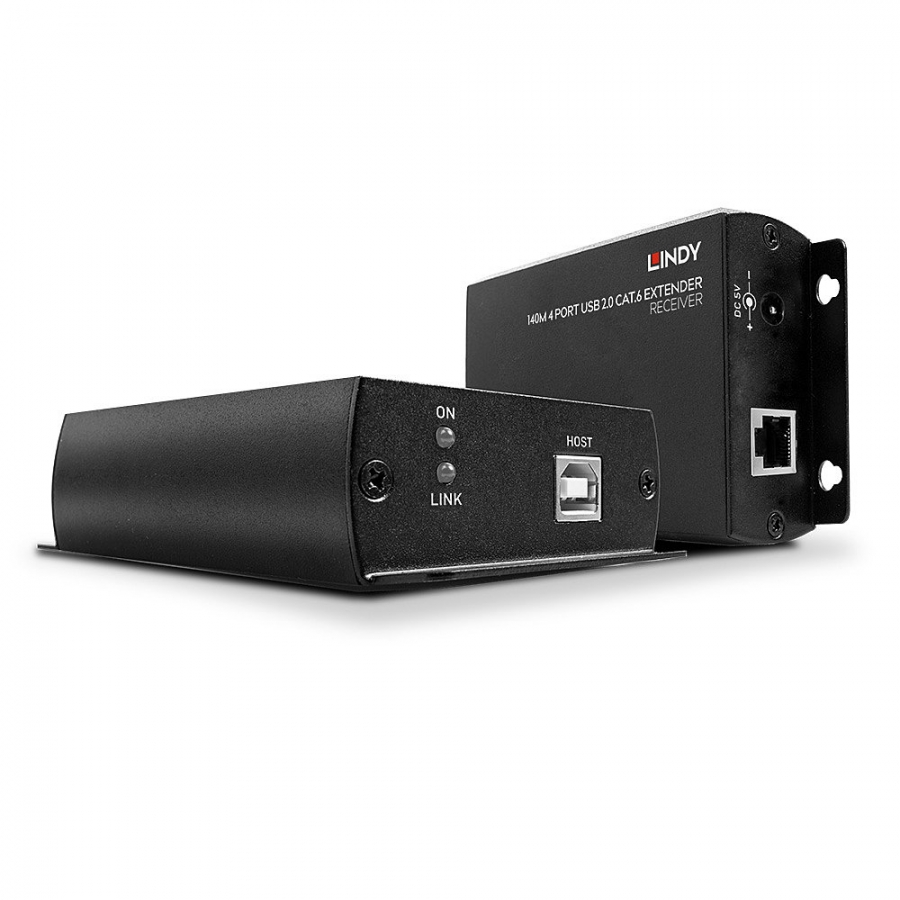

Lindy 140m 4 Port USB 2.0 Cat.6 Extender

Lindy

LIN42710

New

Specifications

  • USB Standard: USB 2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Distance: 140m (459.31ft)
  • Transmission Medium: Cat.6 or higher network cable
  • Chipset: AST1620
  • Special Features: Can reach distances up to 280m by use of Signal Repeater No. 42709



Connectors

  • Transmitter Input: USB Type B (Female)
  • Transmitter Output: RJ45 (Female)
  • Receiver Input: RJ45 (Female)
  • Receiver Output: 4 x USB Type A (Female)
  • Power: 5.5/2.5mm DC socket



Physical Properties

  • Dimensions WxDxH:
    • Transmitter: 120x67x27mm (4.72x2.64x1.06in)
    • Receiver: 130x67x27mm (5.12x2.64x1.06in)
  • Housing Material: Aluminium
  • Net Weight:
    • Transmitter: 0.19kg (0.42lb)
    • Receiver: 0.21kg (0.46lb)
  • Operating Temperature: 0° - 55°C (32°F - 131°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • Humidity: 0 - 95% RH (non-condensing)
  • Power Requirements: 5VDC 2.6A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 240x150x55mm (9.45x5.91x2.17in)
  • Gross Weight:0.6kg (1.32lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH, CP65



Package content

  • Transmitter unit
  • Receiver unit
  • 1.5m USB 2.0 A Male to B Male cable
  • 8x Assembly Screws & Dowels
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual



Purchasing information

  • No.: 42710
  • EAN: 4002888427104
