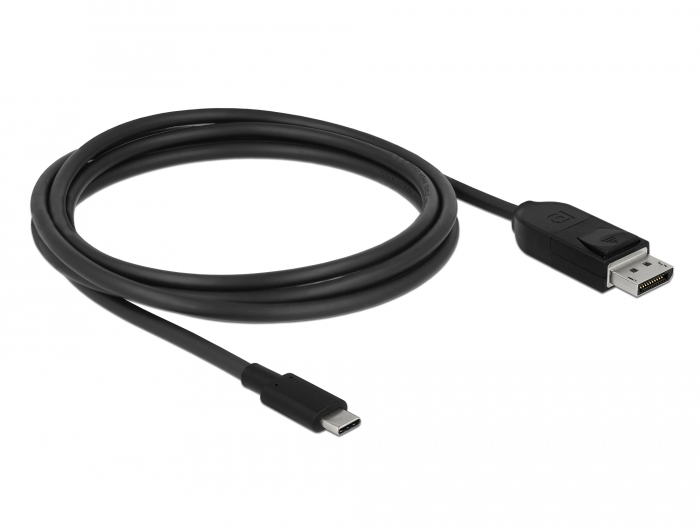

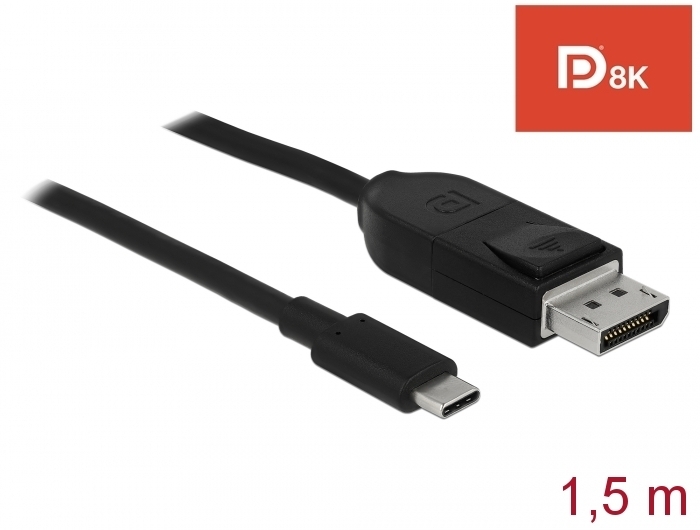

Delock Bidirectional USB Type-C™ to DisplayPort Cable (DP Alt Mode) 8K 60 Hz 1.5 m DP 8K certified

Reference 85813

Condition: New

More info

This DP 8K certified USB-C™ to DisplayPort cable by Delock enables the connection between different devices with USB Type-C™ and DisplayPort connectors.

Versatile applications
The bidirectional cable works in both signal directions and therefore offers a variety of possible applications. It can be used, for example, to connect a monitor or TV with DisplayPort socket to a laptop or smartphone with USB Type-C™ port. Alternatively it is possible to connect a USB Type-C™ monitor to a device with DisplayPort output.

8K Ultra HD resolution and HDR support
By supporting a maximum bandwidth of 32.4 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Due to the HDR support colours are realistically displayed with impressive depth, brightness and contrast are optimally reproduced.

System requirements:
• Android 8.0 or above
• Chrome OS 71.0 or above
• iOS 12.1.4 or above
• Mac OS 10.14.2 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
• A free DisplayPort interface

Specification:
• Connectors:
  1 x USB Type-C™ male >
  1 x DisplayPort male
• Chipset: Fresco Logic FL7102
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• DisplayPort® DP 8K certified cable
• Cable gauge: 32 AWG
• Cable diameter: ca. 4.8 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Resolution up to:
  Display with DSC support:
  7680 x 4320 @ 60 Hz
  5120 x 2880 @ 120 Hz
  3840 x 2160 @ 240 Hz
  Display without DSC support:
  7680 x 4320 @ 30 Hz
  5120 x 2880 @ 60 Hz
  3840 x 2160 @ 120 Hz
  (depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Plug & Play
• Colour: black
• Length incl. connectors: ca. 1.5 m

Package content:
• USB-C™ to DisplayPort cable

Data sheet:
http://www.delock.de/produkt/85813/pdf.html?sprache=en
