Delock USB cable Type-C to DisplayPort (DP Alt Mode) 4K 60 Hz 1 m coaxial

Reference 83709

Condition: New

More info

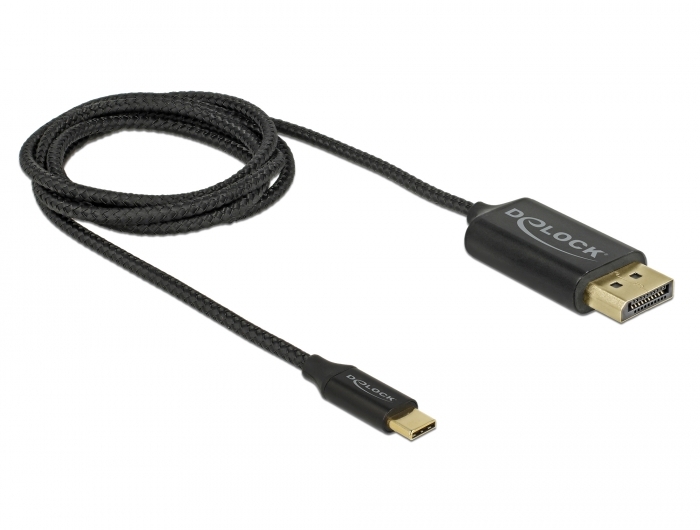

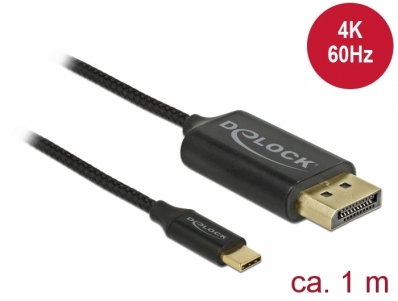

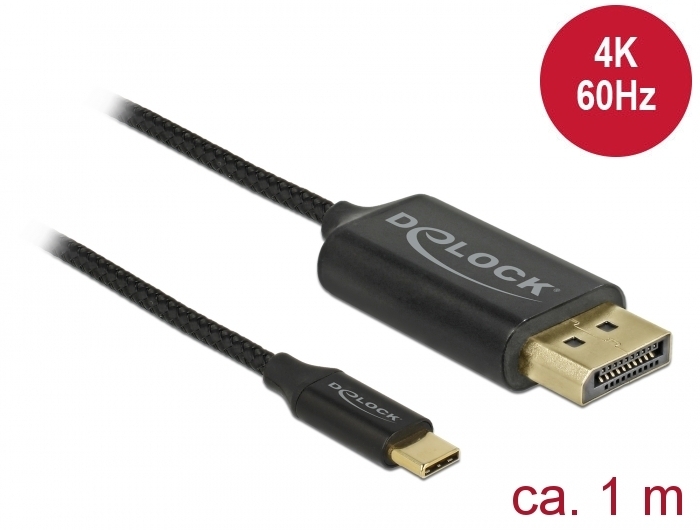

This cable by Delock enables the connection of a DisplayPort monitor to a device with USB-C™ or Thunderbolt™ 3 port, such as a MacBook or a Chromebook. The interface has to support the DisplayPort Alternate Mode. The coaxial cable is very flexible and easy to handle due to its small diameter.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Mac OS 10.12, Windows Mobile 10,
Chrome OS, ex Android 6.0
• Device with a free USB Type-C™ port and DisplayPort alternate mode or
with a free Thunderbolt™ 3 port

Specification:

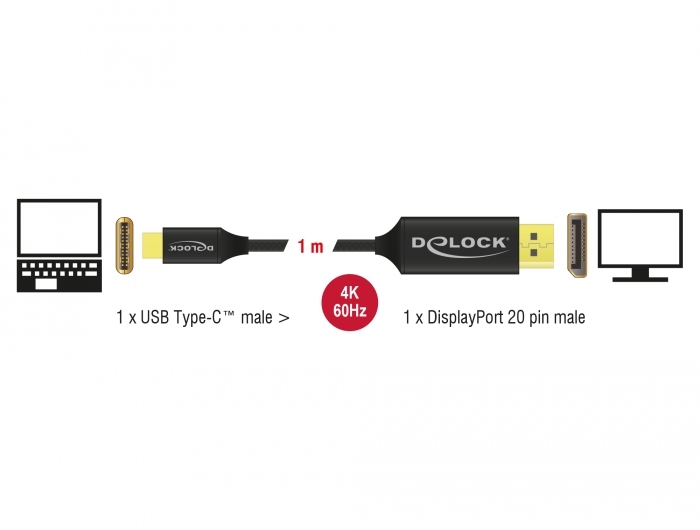

• Connectors:
  1 x USB Type-C™ male >
  1 x DisplayPort 20 pin male
• Chipset: Atmel
• DisplayPort 1.2 specification
• Signal direction: USB Type-C™ input > DisplayPort output
• Cable: coaxial
• Cable diameter: ca. 3.7 mm
• Metal housing
• Contacts gold-plated
• With nylon braid
• Resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports 3D displays
• Supports HDCP 1.4
• USB bus powered
• Plug & Play
• Colour: black

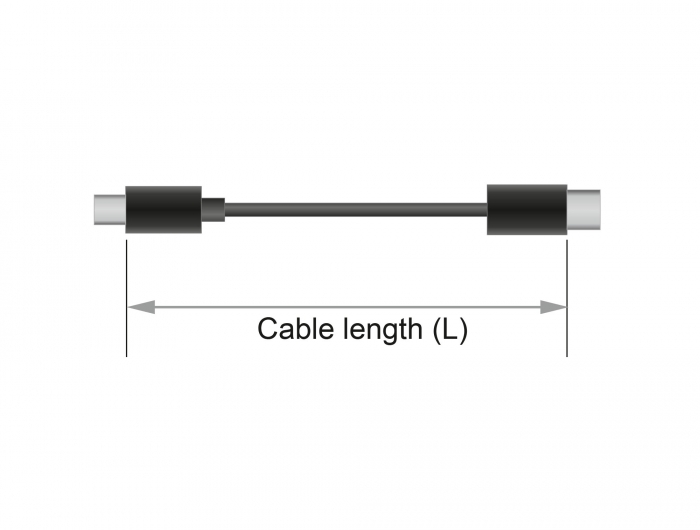

• Length incl. connectors (L): ca. 1 m

Package content:
• USB-C™ to DisplayPort cable

Data sheet:
http://www.delock.de/produkt/83709/pdf.html?sprache=en
