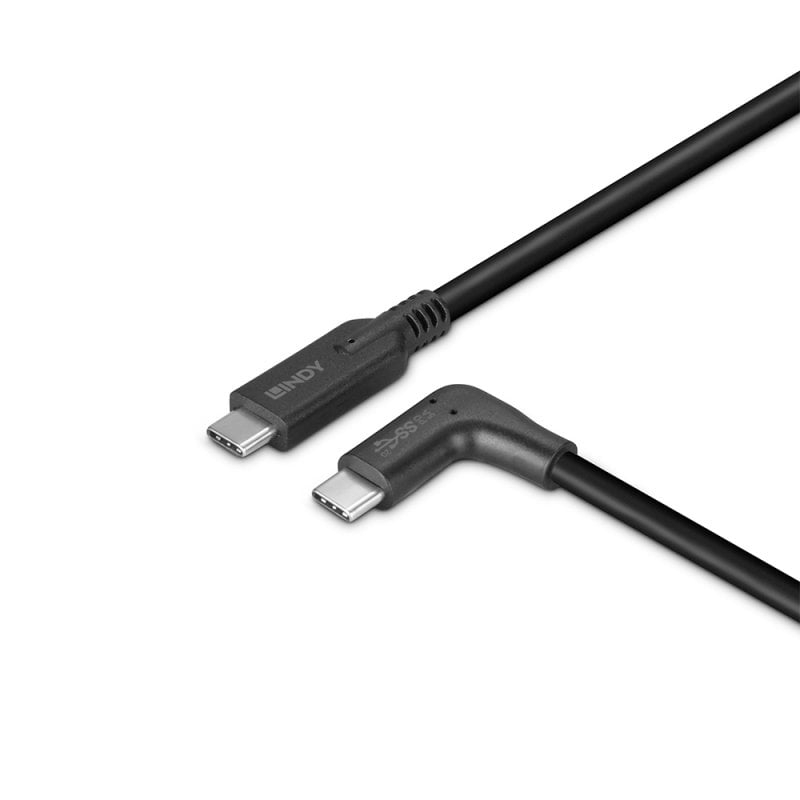

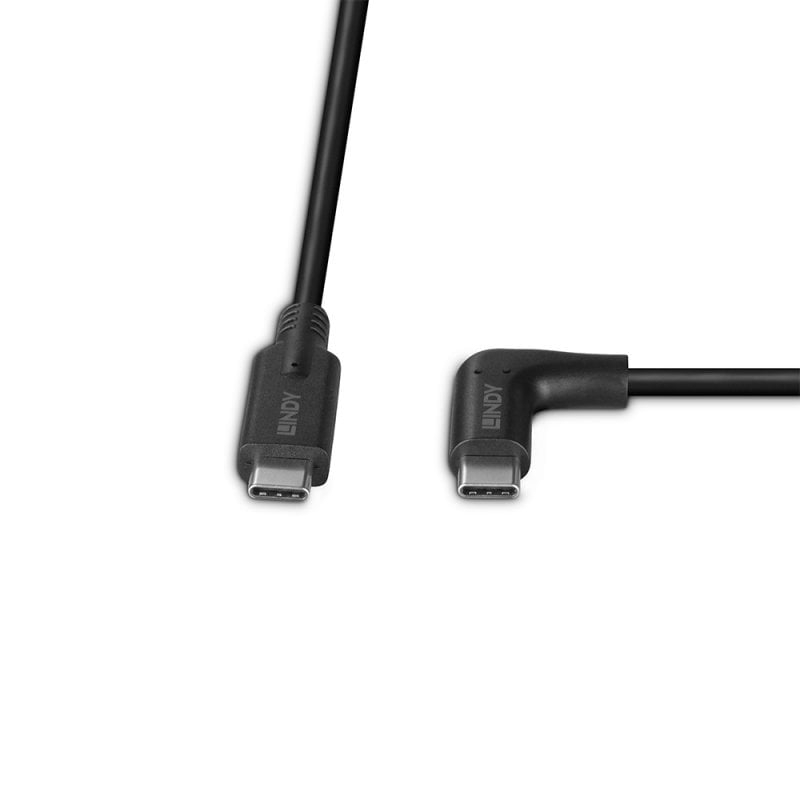

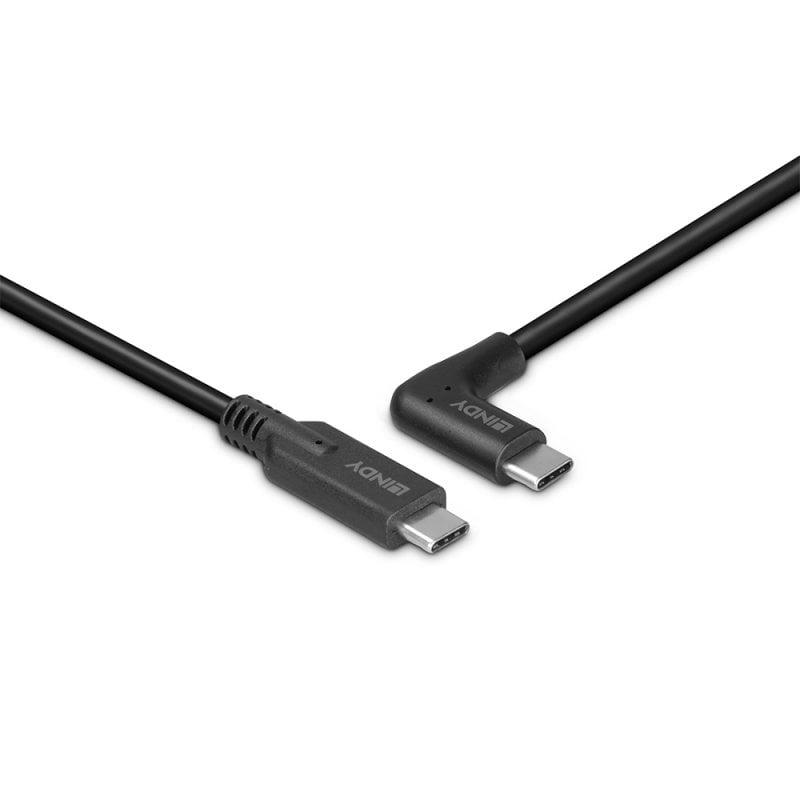

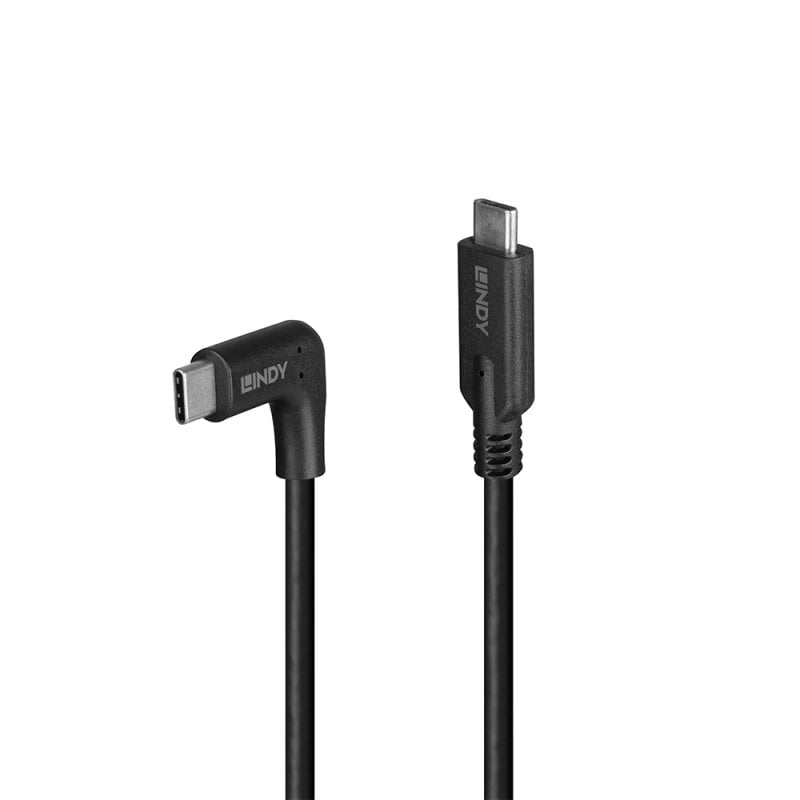

LINDY 1m USB 3.2 Typ C Kabel 90 Grad gewinkelt

Reference 32018

Condition: New

More info

LINDY USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.

Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

USB 3.2 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.

USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Connector 1 form factor	Straight
Connector 2 form factor	Angled
AWG wire size	22/28
Connector material	Gold
Connector contacts plating	Nickel
Cable jacket material	Nylon/Polyvinyl Chloride (PVC)
Conductor material	Copper
Connector shielding	Jā
Connector shield material	Aluminium
Maximum data transfer rate	10 Gbit/s
Cable type	Round cable
USB Power Delivery (USB PD)	Jā
USB Power Delivery revision	2.0
USB Power Delivery up to	60 W
Nominal attenuation	0.5Mhz- 400Mhz < 5.8db
Cable length	1 m
Cable diameter	5 mm
Bend radius (min)	5 cm
Connector 1 dimensions (WxDxH)	6.4 x 38 x 12.3 mm
Connector 2 dimensions (WxDxH)	11.1 x 25.8 x 24.2 mm
Package type	Polybag
Quantity per pack	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 70 °C
Compliance certificates	REACH, RoHS
Certification	RoHS, REACH, California Proposition 65
Warranty period	10 year(s)
