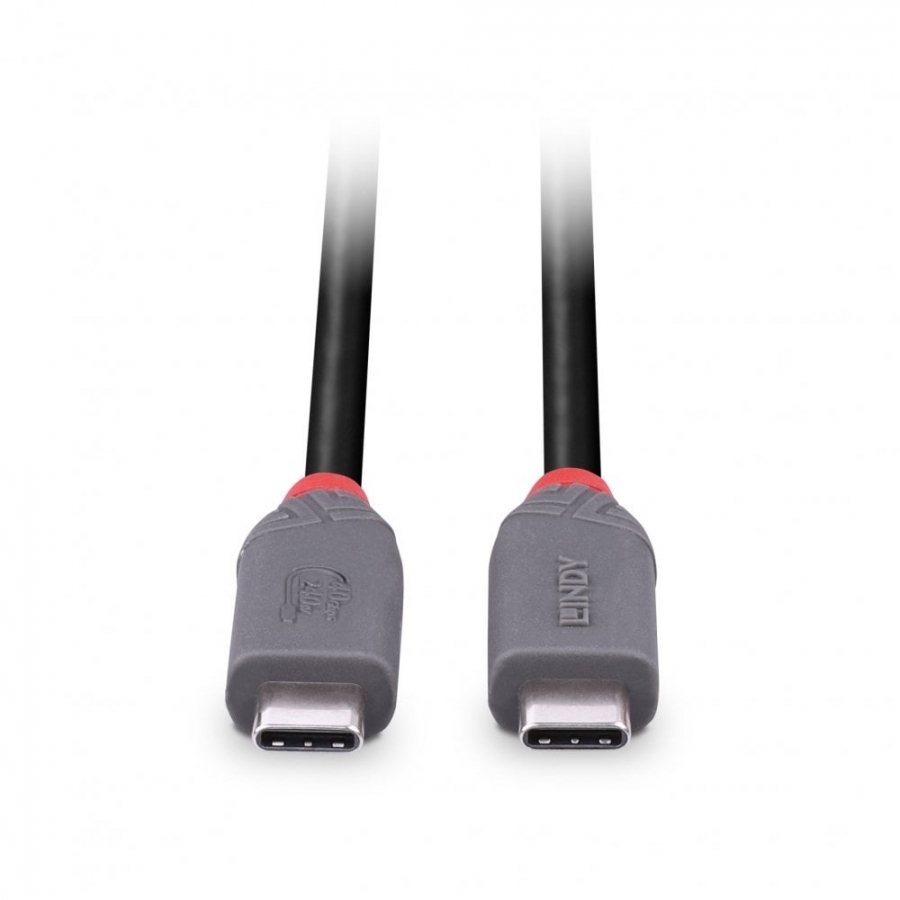

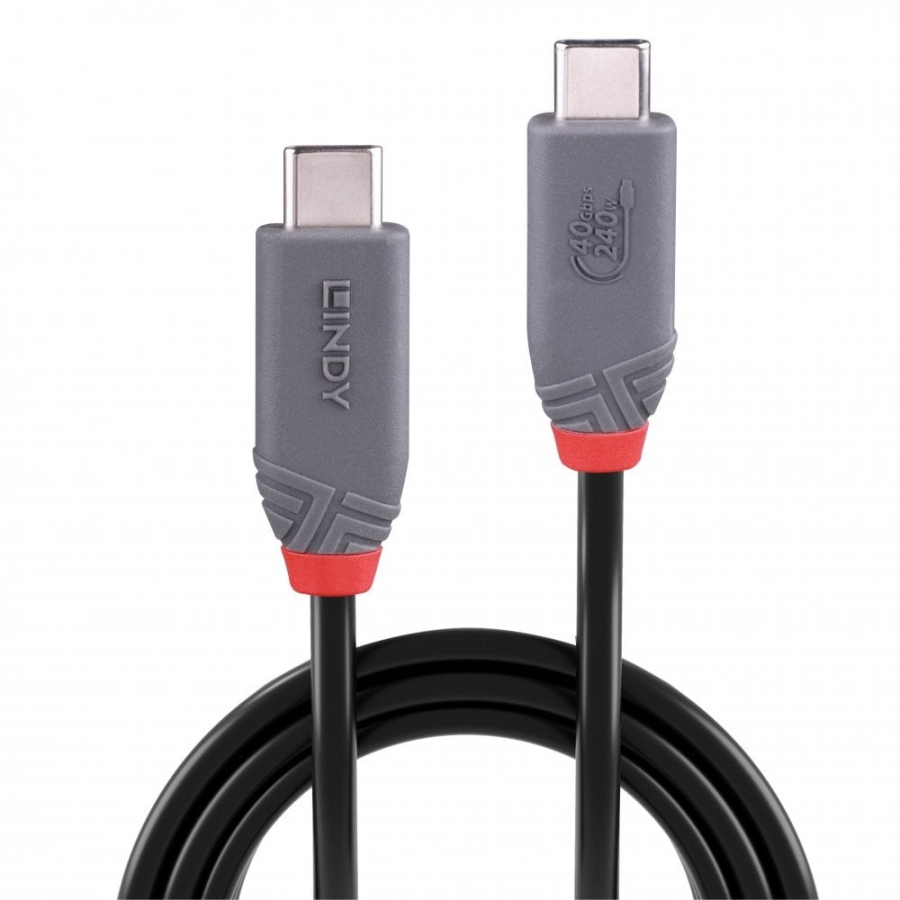

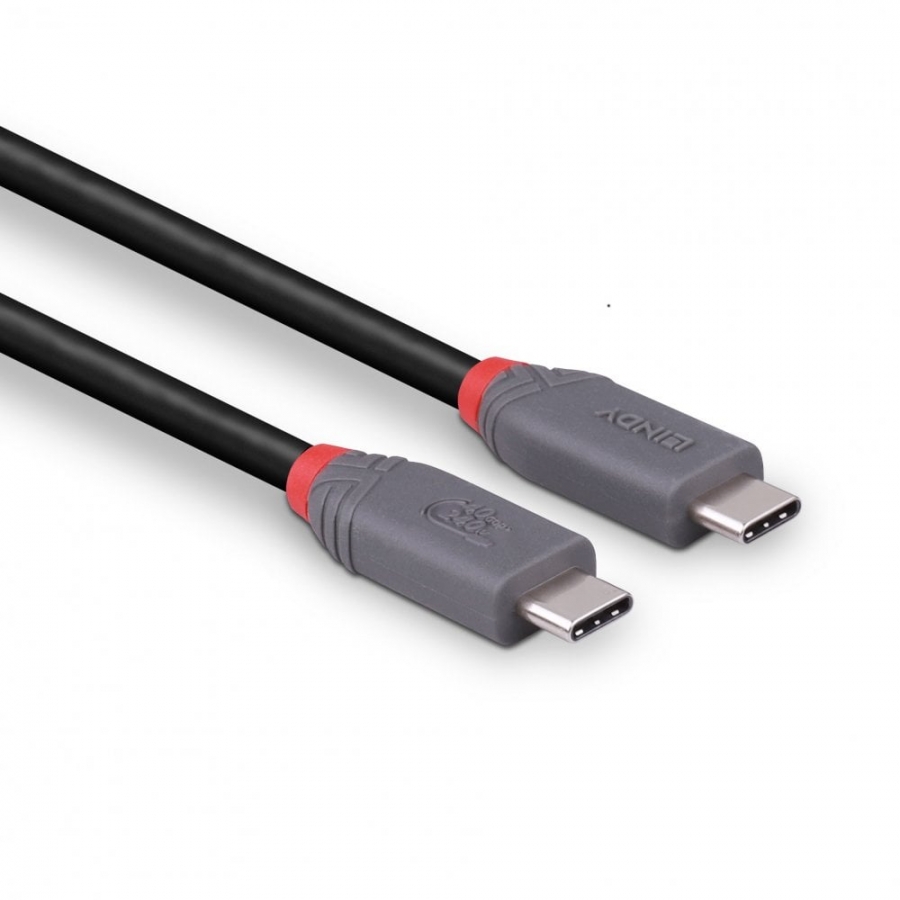

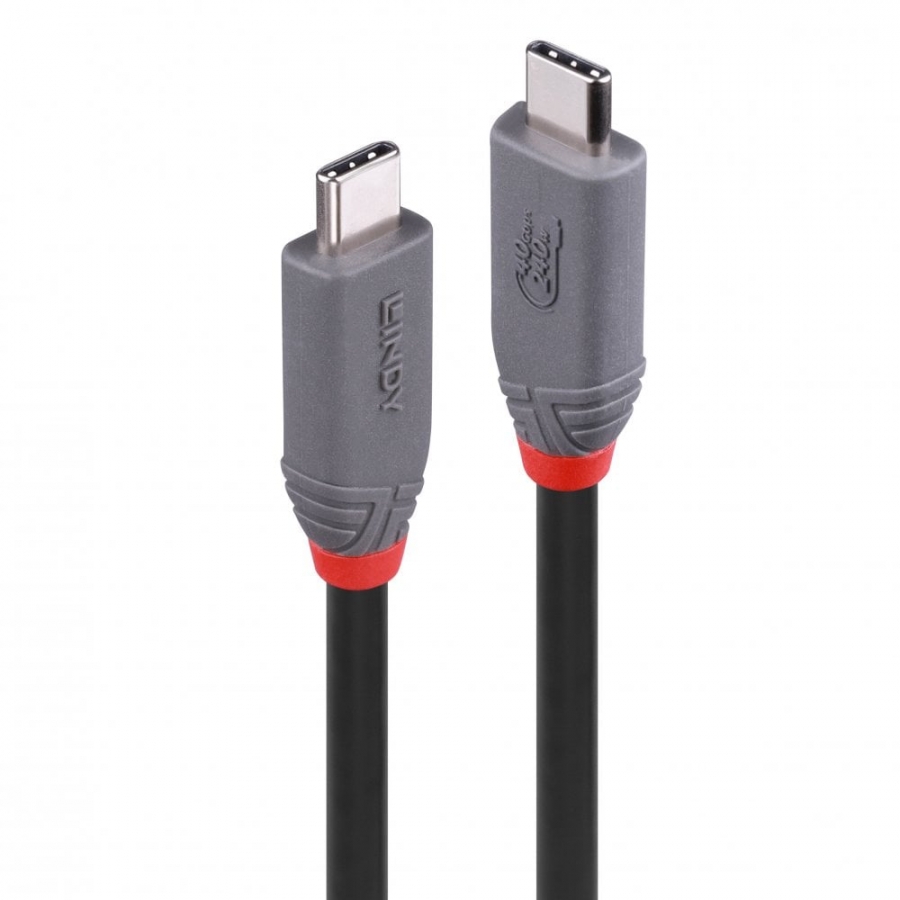

LINDY 1.5m USB4 240W Typ C Kabel, 40Gbit/s, Anthra Line

Reference 36957

Condition: New

More info

The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Cable length	1.5 m
USB version	USB4 Gen 3x2
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	23/30/34
Connector material	Nickel
Connector contacts plating	Gold
Cable jacket material	Thermoplastic elastomer (TPE)
Conductor material	Copper
Connector shielding	Jā
Connector shield material	Copper
Maximum data transfer rate	40000 Mbit/s
Cable type	Round cable
Plug and Play	Jā
USB Power Delivery	Jā
USB Power Delivery revision	3.1
USB Power Delivery up to	240 W
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Certification	RoHS, REACH, California Proposition 65 & UL
Cable diameter	4.8 mm
Bend radius (min)	2.88 cm
Connector 1 dimensions (WxDxH)	30 x 12.4 x 6.5 mm
Connector 2 dimensions (WxDxH)	30 x 12.4 x 6.5 mm
Quantity per pack	1 pc(s)
Sustainability compliance	Jā
Sustainability certificates	REACH, RoHS, UL ECOLOGO
Operating temperature (T-T)	-20 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
UN number	`
Warranty period	2 year(s)
