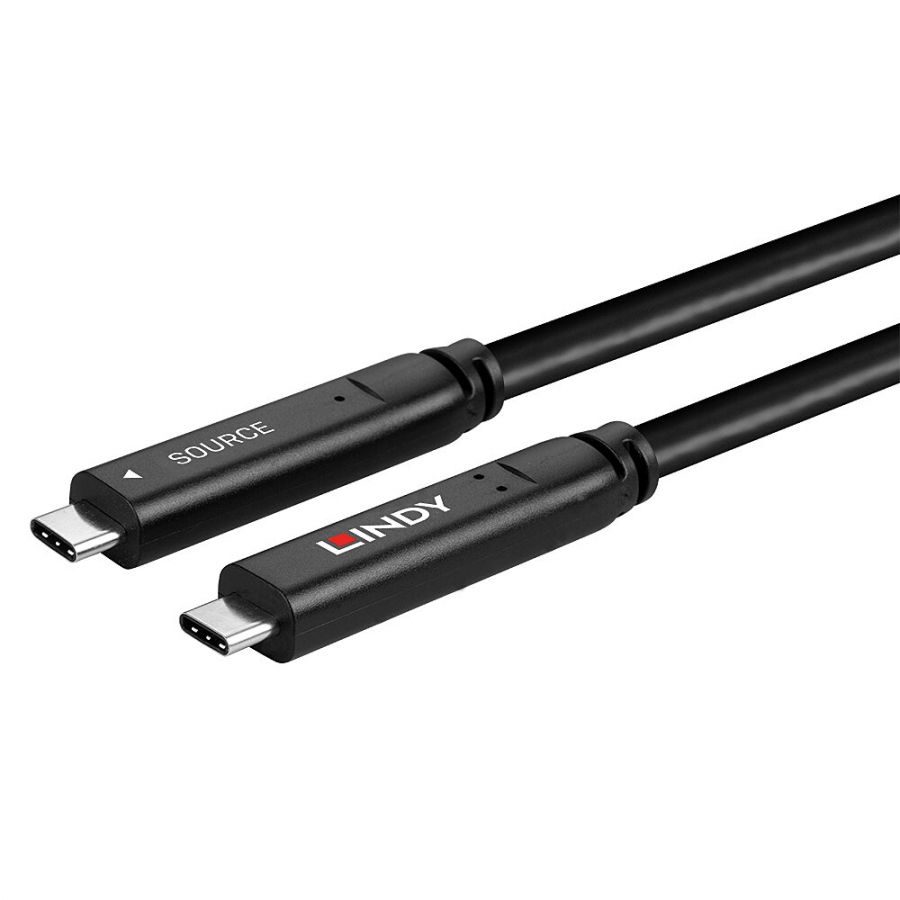

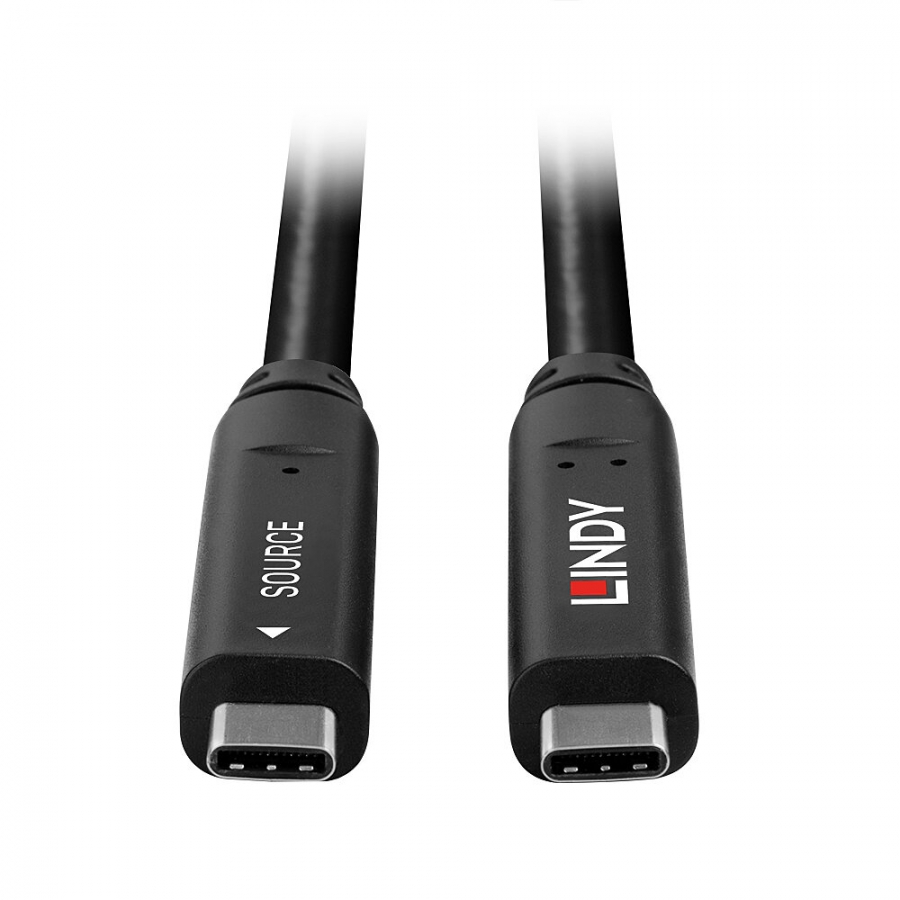

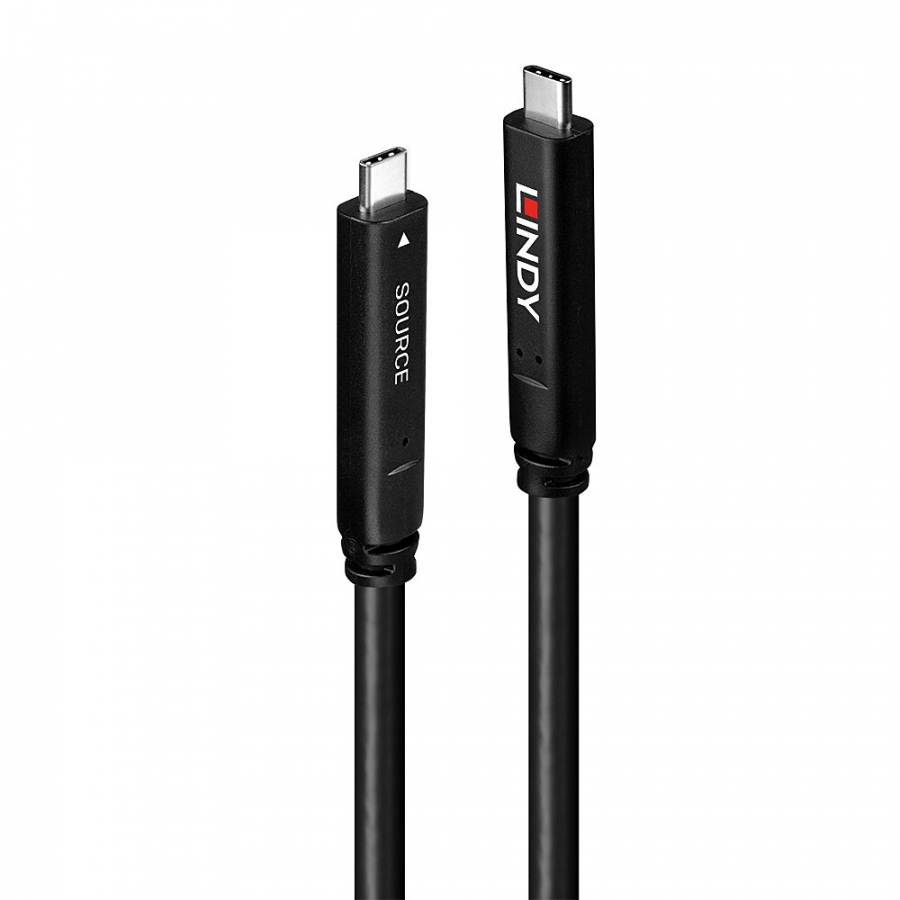

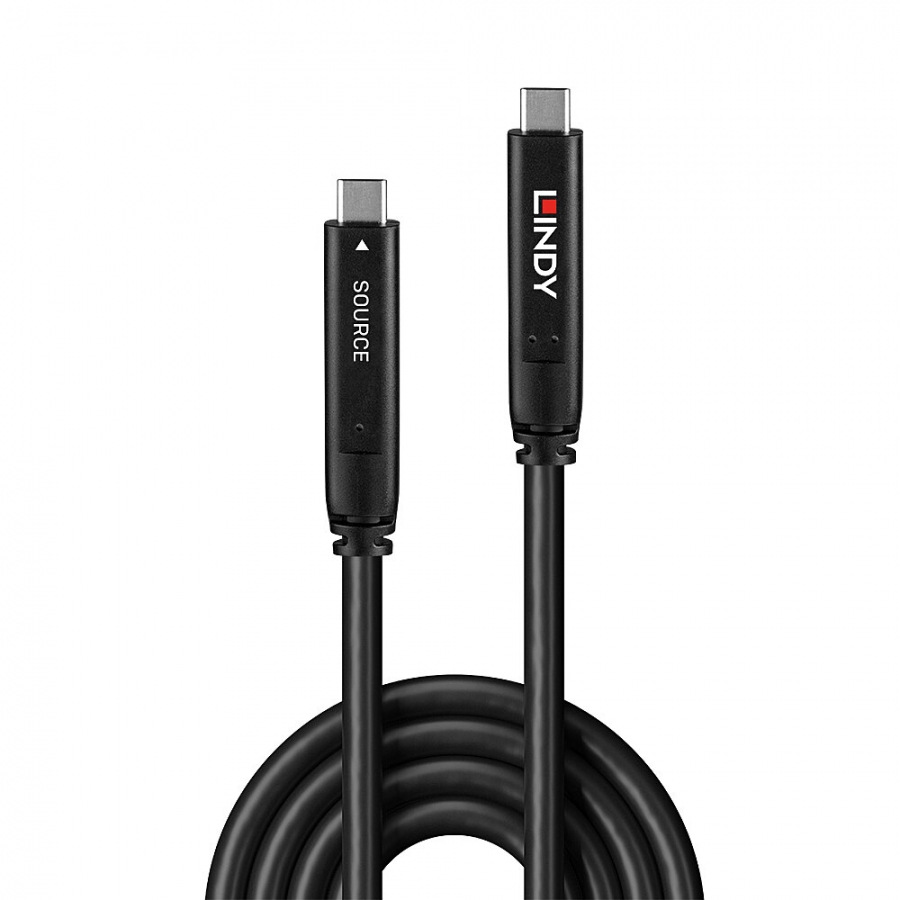

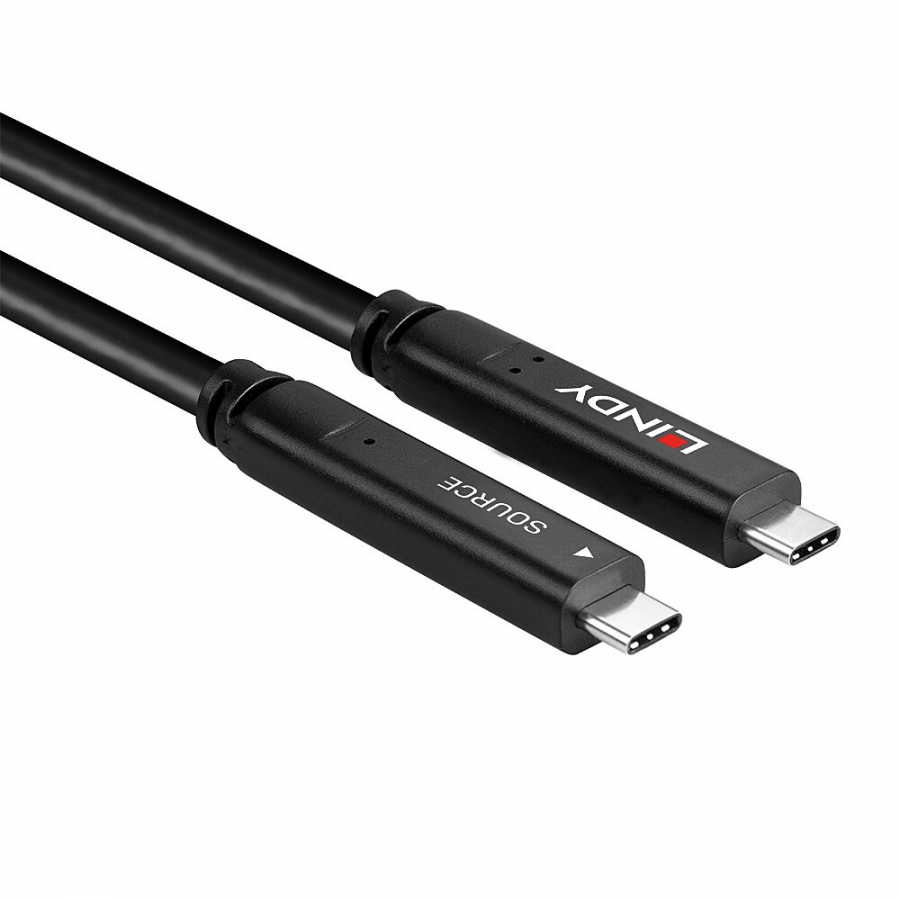

LINDY 8m USB 3.2 Gen 1 & DP 1.4 Typ C Hybridkabel

Reference 43393

Condition: New

More info

The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 8m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.

The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss,

Cable length	8 m
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	21
Cable jacket material	Polyvinyl chloride (PVC)
Connector shielding	Jā
Connector shield material	Copper
Connector housing material	Plastic
Maximum data transfer rate	5000 Mbit/s
USB Power Delivery	Jā
USB Power Delivery up to	60 W
USB Type-C DisplayPort Alternate Mode	Jā
DisplayPort version	1.4
Maximum resolution	3840 x 2160 pixels
Nominal attenuation	<10dB/km@850nm,<8dB/km@1300nm
Output voltage	20 V
Output current (max)	3 A
Cable diameter	6.5 mm
Bend radius (min)	10 cm
Weight	610 g
Quantity per pack	1 pc(s)
Package width	240 mm
Package depth	240 mm
Package height	65 mm
Package weight	770 g
Package type	Box
Manual	Jā
Sustainability compliance	Jā
Sustainability certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Operating temperature (T-T)	-10 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
