LINDY USB 3.0 Aktiv-Verlängerung Typ A/A M/F 15m

Reference 43099

Condition: New

More info

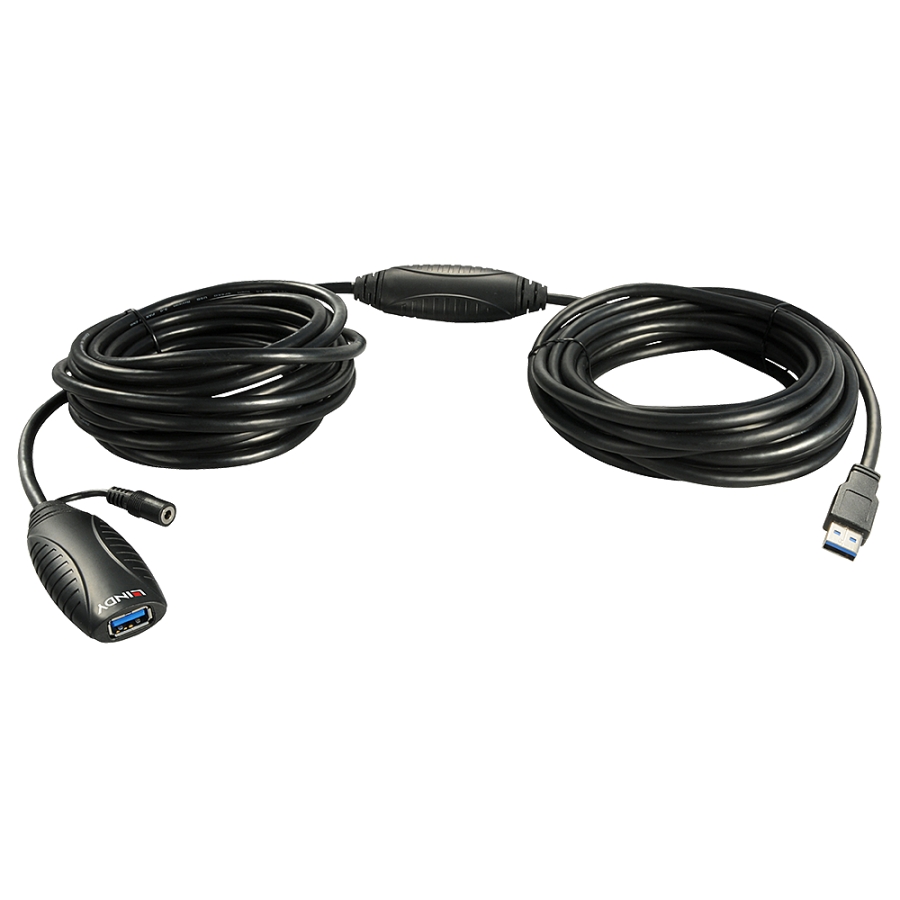

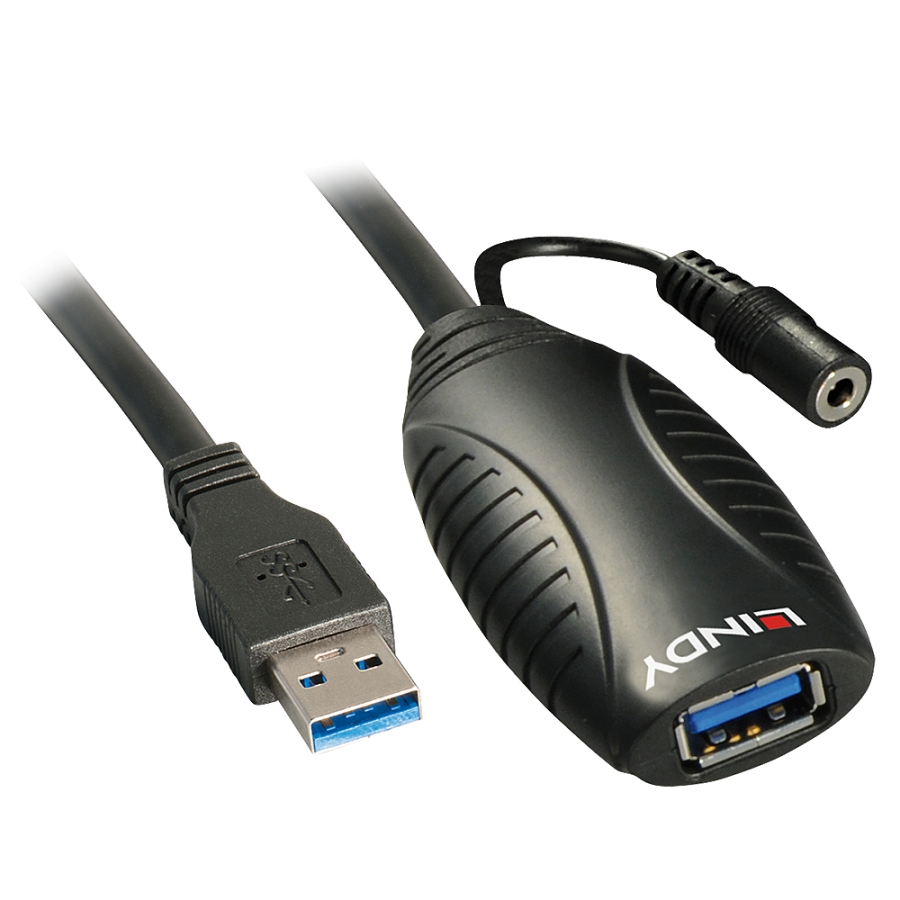

15 metre USB 3.0 Active Extension Repeater Lead Supports transfer rates up to 5Gbps For even greater distances simply connect 2 cables in series Plug & Play 2 year warrantyThe Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.The USB active extension cable also features a DC socket for connecting an external power supply (5V 2A, not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 & 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Cable length	15 m
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Connector 1 gender	Male
Connector 2 gender	Female
Product colour	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	28/28/22
Connector material	Nickel
Contact material	Copper
Connector contacts plating	Nickel
Cable jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
Connector shielding	Y
Connector shield material	Aluminium
Connector housing material	Plastic
Maximum data transfer rate	5000 Mbit/s
Plug and Play	Y
Cable type	Round cable
Transmission medium	Twisted pair
Nominal attenuation	100 MHz, -1.5 dB 1.25 GHz, -5.0 dB 2.5 GHz, -7.5 dB 7.5 GHz, -25 dB
Certification	CE, UKCA, FCC, RoHS, REACH
Power note	3.5/1.35mm DC
Cable diameter	7 mm
Bend radius (min)	6 cm
Connector 1 dimensions (WxDxH)	16 x 49 x 9 mm
Connector 2 dimensions (WxDxH)	35 x 85 x 15 mm
Connector 3 dimensions (WxDxH)	35 x 100 x 15 mm
Weight	1.33 kg
Quantity per pack	1 pc(s)
Package width	300 mm
Package depth	80 mm
Package height	300 mm
Package weight	1.39 kg
Package type	Polybag
Manual	Y
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Harmonized System (HS) code	84733080
