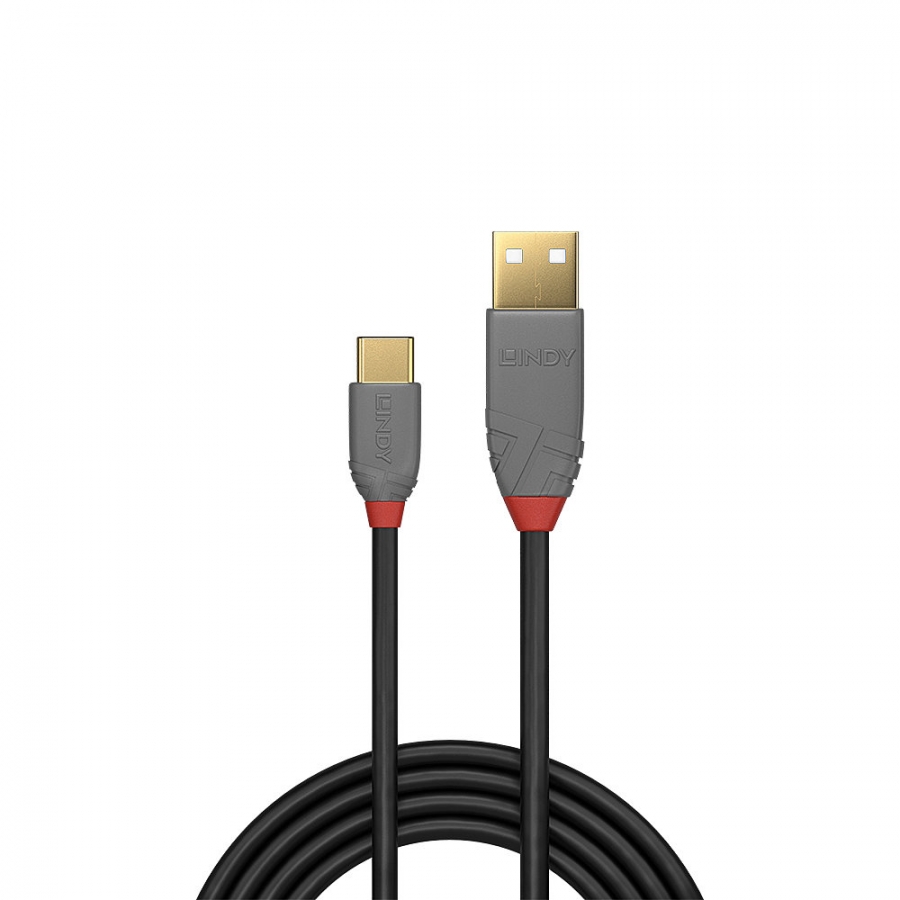

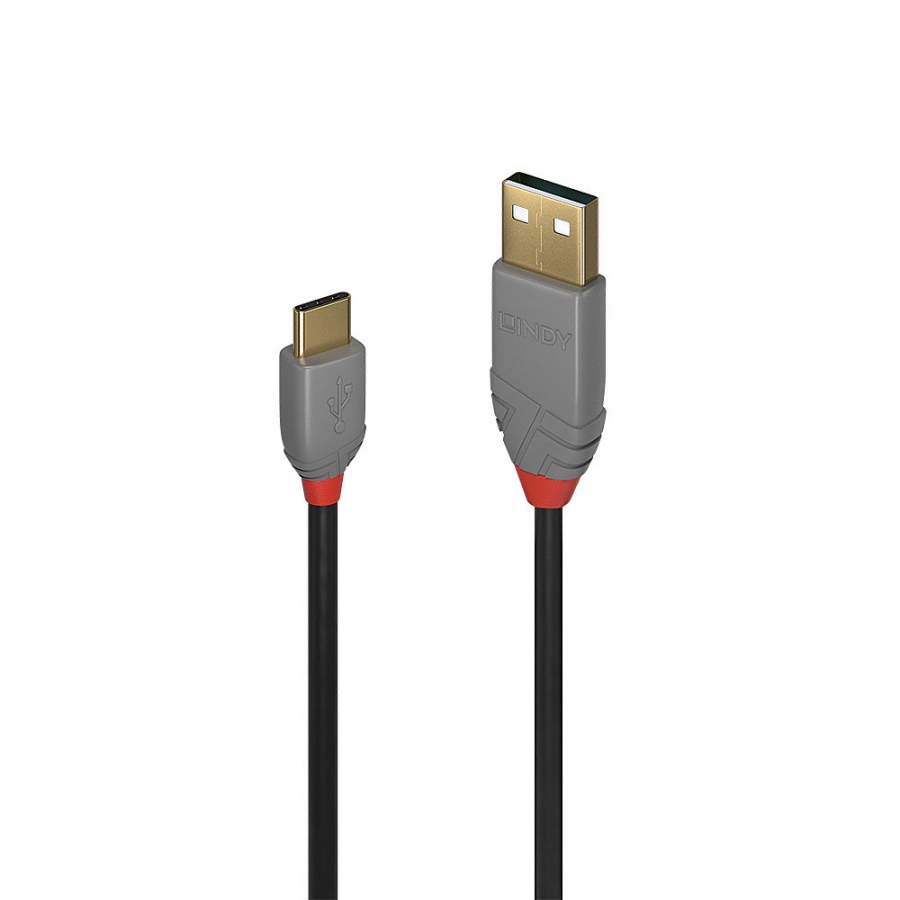

LINDY USB 2.0 Kabel Typ A/C Anthra Line M/M 1m

Lindy

36886

New

Professional choice USB 2.0 Type A to C cable for commercial and high performance AV and IT installations Supports data transfer speeds up to 480Mbps Robust PVC housing, gold plated connectors and contacts Double shielded cable, corrosion resistant tinned copper conductors USB 2.0, 480Mbps; 10 year warrantyFrom the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to C cables are the professional choice for high performance connections in commercial AV and IT installations.USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain signal integrity and reliability.Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.Anthra Line USB 2.0 Type A to C cables are available in the following lengths: 0.5m, 1m, 2m and 3m

Cable length1 m
USB versionUSB 2.0
Connector 1USB A
Connector 2USB C
Connector 1 genderMale
Connector 2 genderMale
Product colourBlack, Grey
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size28
Connector materialGold
Contact materialPhosphor bronze
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialTinned copper
Connector shieldingY
Connector shield materialCopper
Connector housing materialPolyvinyl chloride (PVC)
Maximum data transfer rate480 Mbit/s
Plug and PlayY
Cable typeRound cable
Nominal attenuation0.5-3m: 0.5Mhz €“ 400Mhz 5.8db
CertificationRoHS, REACH, UL
Cable diameter3.5 mm
Bend radius (min)3.5 cm
Connector 1 dimensions (WxDxH)11 x 25.5 x 7.3 mm
Connector 2 dimensions (WxDxH)15.5 x 35.1 x 7.8 mm
Quantity per pack1 pc(s)
Package typePolybag
Operating temperature (T-T)-20 - 80 °C
Storage temperature (T-T)-25 - 85 °C
Harmonized System (HS) code84733080
