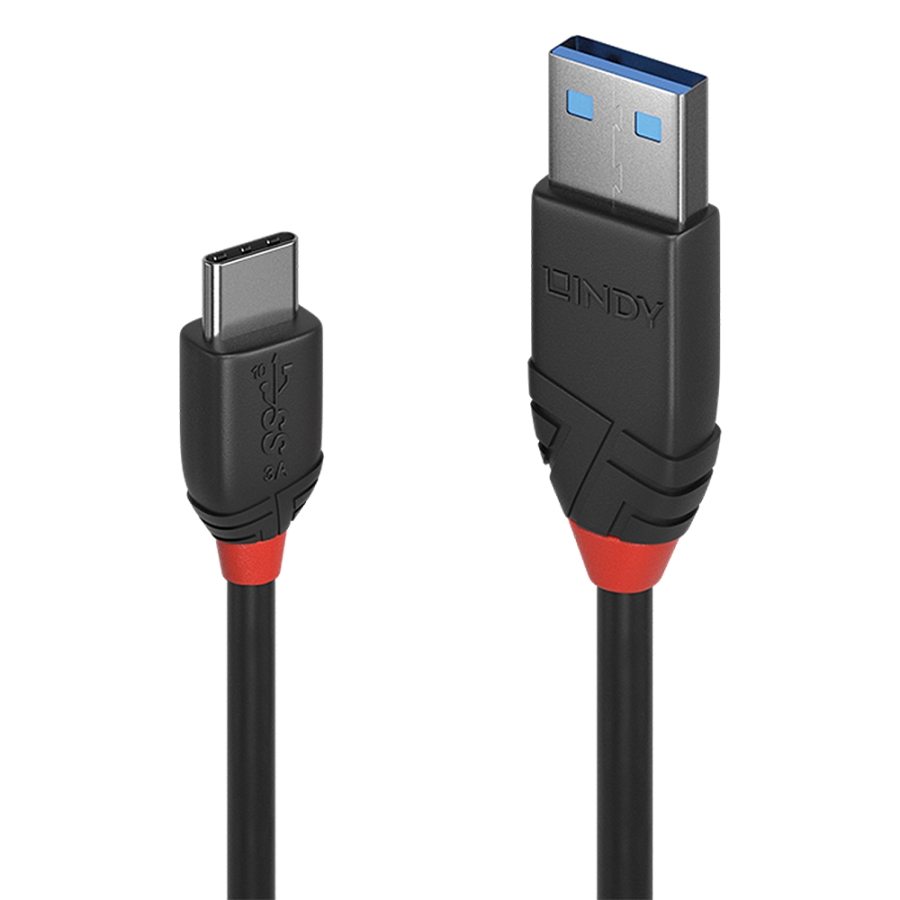

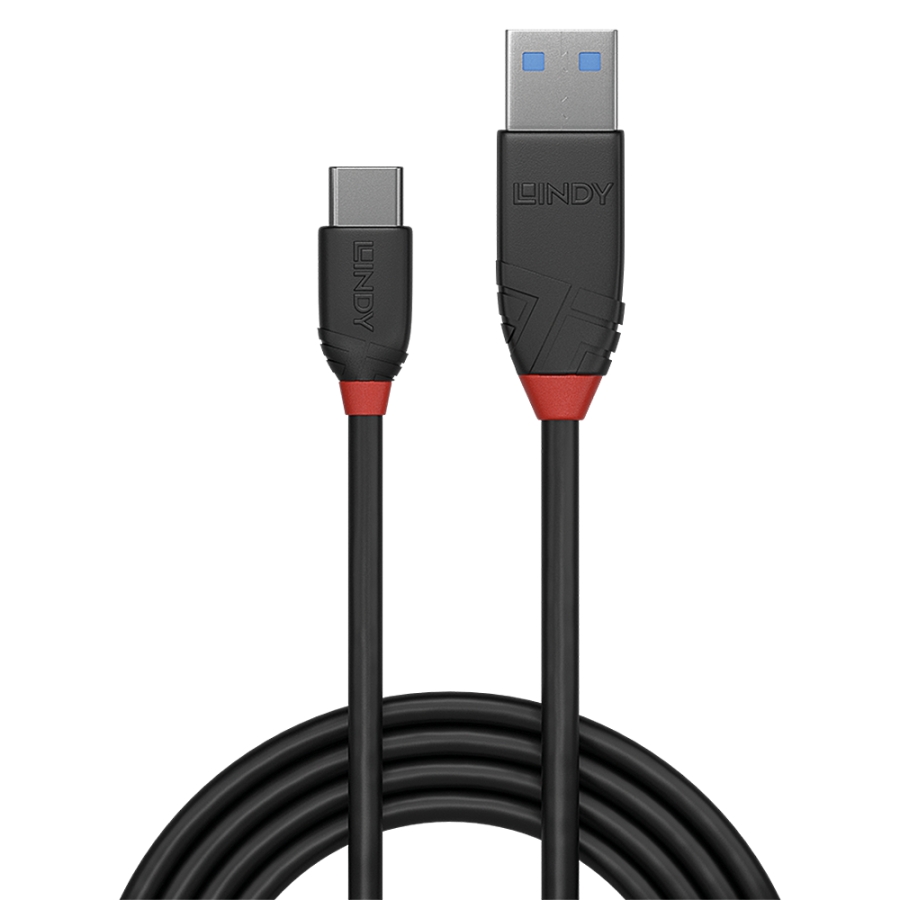

LINDY USB 3.1 Kabel Typ A/C 3A Black Line M/M 0.5m

Lindy

36915

New

Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2) Robust PVC housing, nickel connectors, gold plated contacts Triple shielded cable, corrosion resistant tinned copper conductors 10 year warrantyThe Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.15m, 0.5m, 1m and 1.5m.We have adapted the naming of our USB 3 cables to follow the updated USB specification.USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5GbpsUSB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 GbpsUSB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 GbpsUSB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Cable length0.5 m
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB C
Connector 1 genderMale
Connector 2 genderMale
Product colourBlack
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size26/30/30
Connector materialNickel
Contact materialPhosphor bronze
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialTinned copper
Connector shieldingY
Connector shield materialAluminium
Connector housing materialPolyvinyl chloride (PVC)
Maximum data transfer rate10000 Mbit/s
Plug and PlayY
Cable typeRound cable
Nominal attenuation0.5Mhz €“ 15Ghz 40db
CertificationRoHS, REACH, UL
Cable diameter4.5 mm
Bend radius (min)4.5 cm
Connector 1 dimensions (WxDxH)15.5 x 35.1 x 7.8 mm
Connector 2 dimensions (WxDxH)11 x 25.5 x 7.3 mm
Quantity per pack1 pc(s)
Package typePolybag
Operating temperature (T-T)-20 - 80 °C
Storage temperature (T-T)-25 - 85 °C
Harmonized System (HS) code84733080

USB 2.0
