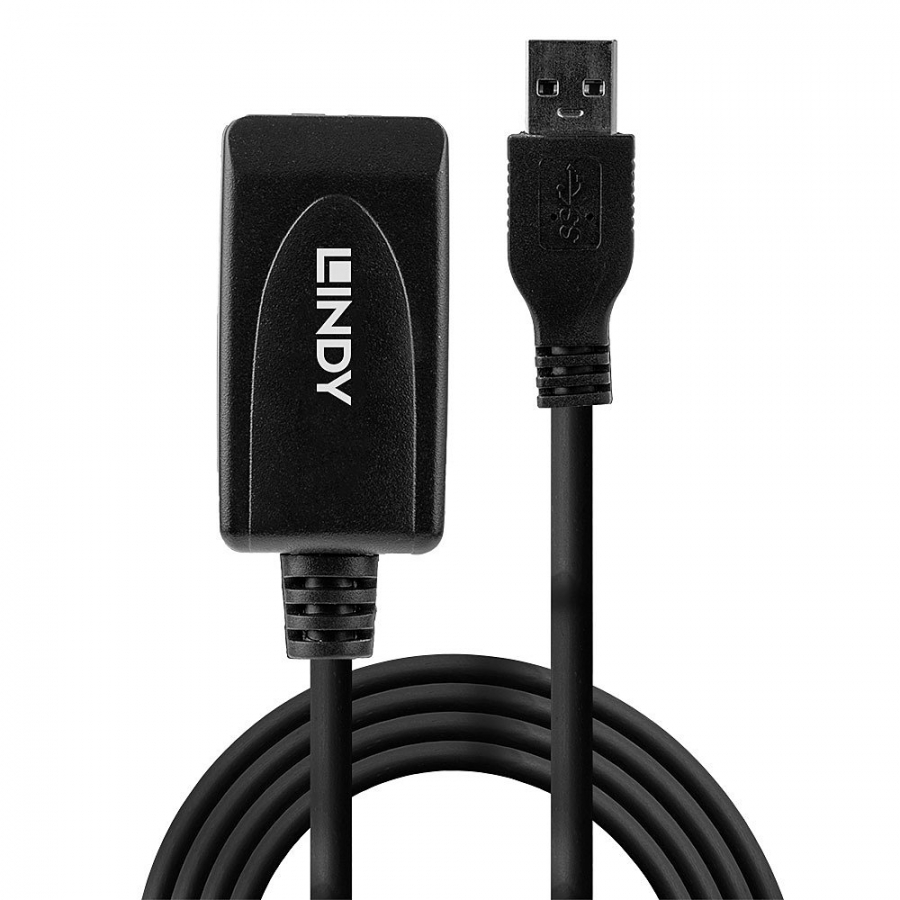

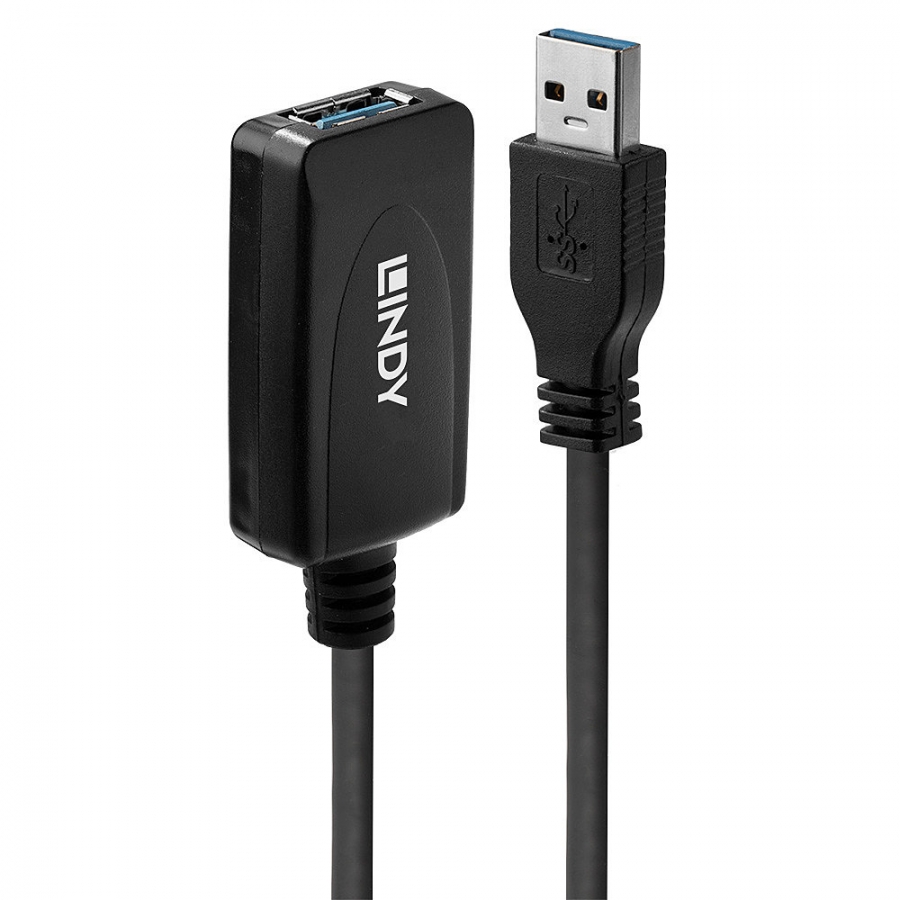

LINDY USB 3.0 Aktiv-Verlängerung Typ A/A M/F 5m

Reference 43155

Condition: New

More info

5 metre USB 3.0 Active Extension Repeater Lead Supports transfer rates up to 5Gbps For even greater distances simply connect 2 cables in series Plug & Play 2 year warrantyThe Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.Information about USB 3.0, 3.1 & 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Cable length	5 m
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Connector 1 gender	Male
Connector 2 gender	Female
Product colour	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	28/24
Connector material	Gold
Contact material	Brass
Connector contacts plating	Gold
Cable jacket material	Polyvinyl chloride (PVC)
Conductor material	Tinned copper
Connector shielding	Y
Connector shield material	Aluminium
Connector housing material	Plastic
Maximum data transfer rate	5000 Mbit/s
Cable type	Round cable
Transmission medium	Twisted pair
Nominal attenuation	1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz
Certification	CE, UKCA, FCC, RoHS, REACH
Cable diameter	5.5 mm
Bend radius (min)	5.5 cm
Connector 1 dimensions (WxDxH)	16 x 48 x 6 mm
Connector 2 dimensions (WxDxH)	24 x 46 x 12 mm
Weight	220 g
Quantity per pack	1 pc(s)
Package width	237 mm
Package depth	60 mm
Package height	138 mm
Package weight	289 g
Package type	Blister
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 70 °C
Harmonized System (HS) code	84733080
